Dimension
Width: 1200 mm · Height: 1500 mm
2 × DimensionSize Labels

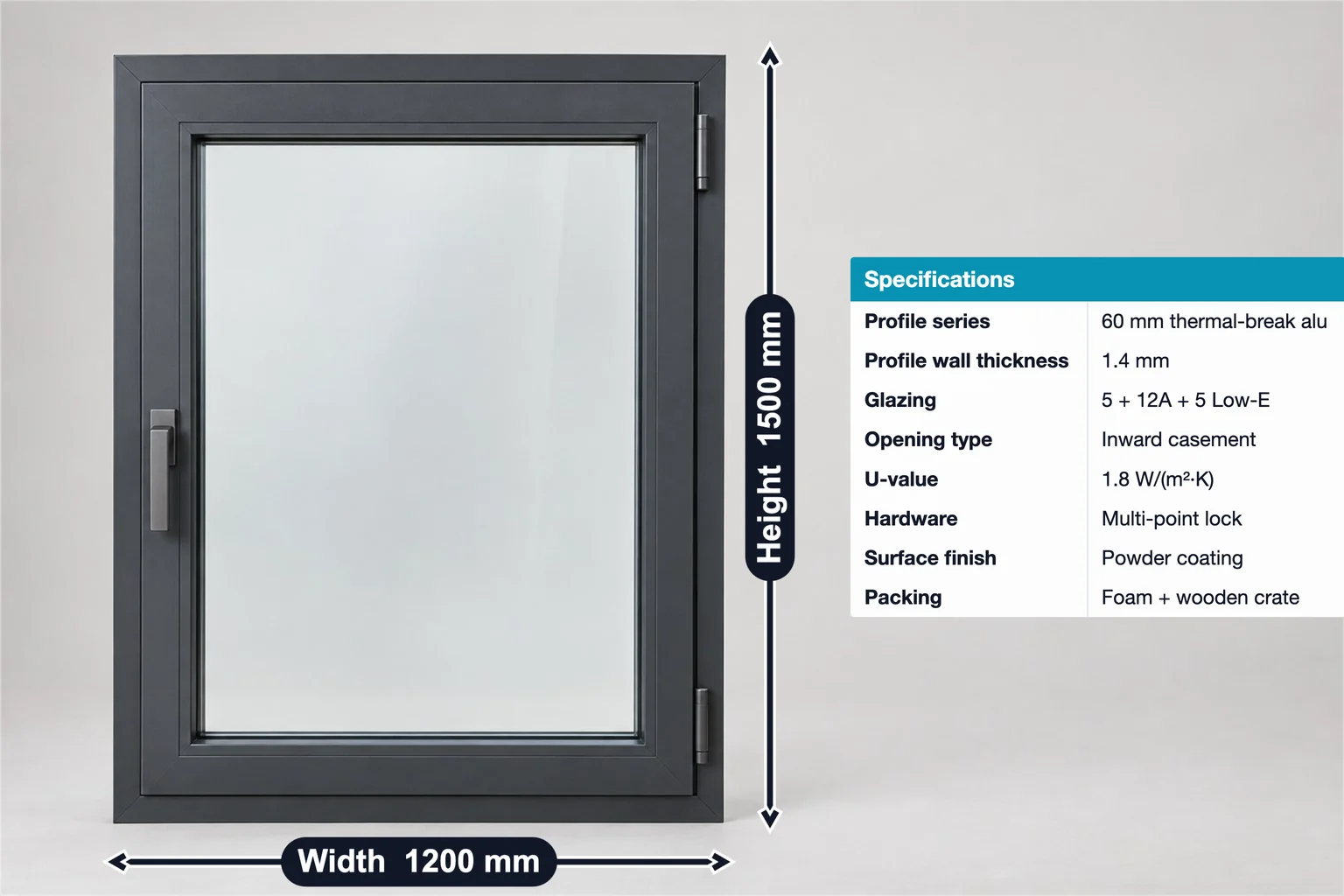

Aluminium casement window annotation template
Window example for door and window suppliers: 1200 × 1500 mm casement with a spec table for profile series, wall thickness, glazing, U-value and packing.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes
This aluminium casement window template has 3 annotations: width and height lines and a specification table. The values are examples, not measurements of your product.
Specification table
Specifications: Profile series: 60 mm thermal-break alu · Profile wall thickness: 1.4 mm · Glazing: 5 + 12A + 5 Low-E
1 × Specification tableSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Width
- 1200 mm
- Height
- 1500 mm
- Profile series
- 60 mm thermal-break alu
- Profile wall thickness
- 1.4 mm
Dimension2
| Annotation | Value |
|---|---|
| Width | 1200 mm |
| Height | 1500 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| Profile series | 60 mm thermal-break alu |
| Profile wall thickness | 1.4 mm |
| Glazing | 5 + 12A + 5 Low-E |
| Opening type | Inward casement |
| U-value | 1.8 W/(m²·K) |
| Hardware | Multi-point lock |
| Surface finish | Powder coating |
| Packing | Foam + wooden crate |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02

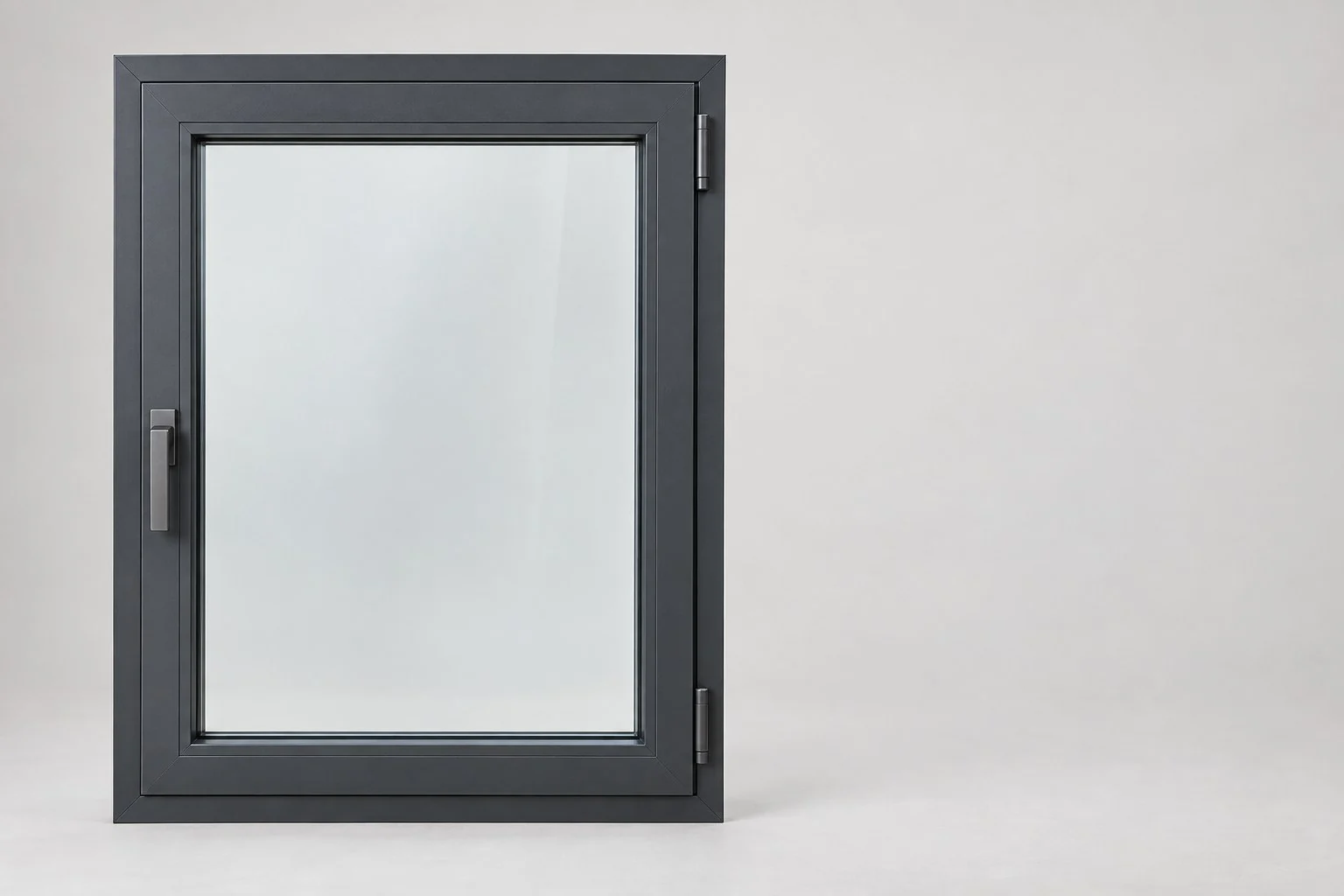

Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this aluminium casement window template show?
It marks a 1200 × 1500 mm window and lists a 60 mm thermal-break profile with 1.4 mm walls, 5 + 12A + 5 Low-E glazing, inward casement opening, a 1.8 W/(m²·K) U-value, multi-point lock, powder coating and foam plus wooden crate packing.
Can I use my own window photo?
Yes. Open the template in SizeMarker, replace the photo, move the lines onto your window and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. Sizes and profile data are examples, and a U-value must come from your own test report. Enter the specifications you have verified for your window.
