Dimension

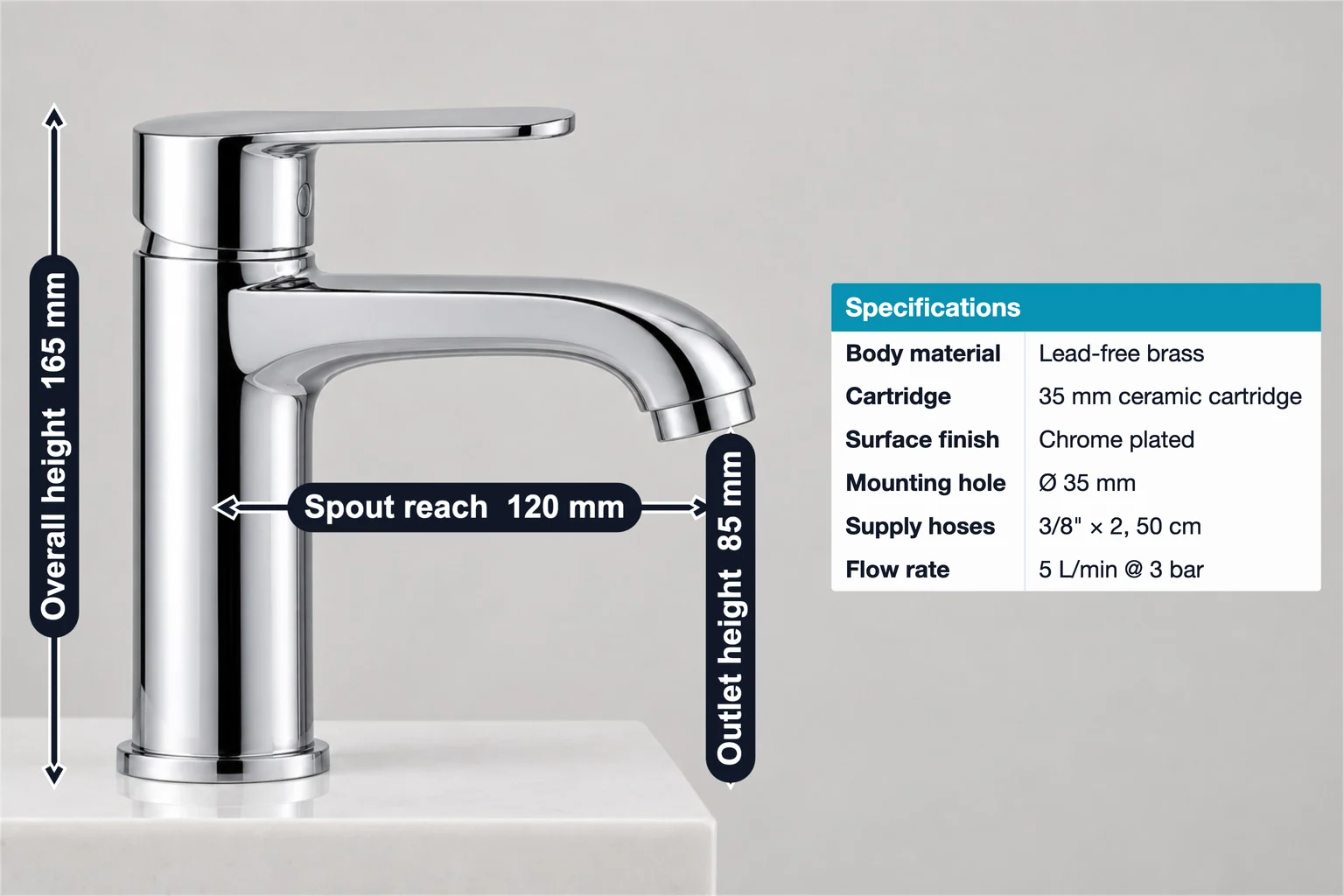

Overall height: 165 mm · Spout reach: 120 mm · Outlet height: 85 mm
3 × DimensionSize Labels
Basin faucet annotation template
Faucet example for sanitary ware suppliers: height, spout reach and outlet height lines, plus a spec table with body, cartridge, finish, hoses and flow rate.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes
This basin faucet template has 4 annotations: three dimension lines and a specification table. The values are examples, not measurements of your product.
Specification table
Specifications: Body material: Lead-free brass · Cartridge: 35 mm ceramic cartridge · Surface finish: Chrome plated
1 × Specification tableSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Overall height
- 165 mm
- Spout reach
- 120 mm
- Outlet height
- 85 mm
- Body material
- Lead-free brass
Dimension3
| Annotation | Value |
|---|---|
| Overall height | 165 mm |
| Spout reach | 120 mm |
| Outlet height | 85 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| Body material | Lead-free brass |
| Cartridge | 35 mm ceramic cartridge |
| Surface finish | Chrome plated |
| Mounting hole | Ø 35 mm |
| Supply hoses | 3/8" × 2, 50 cm |
| Flow rate | 5 L/min @ 3 bar |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02

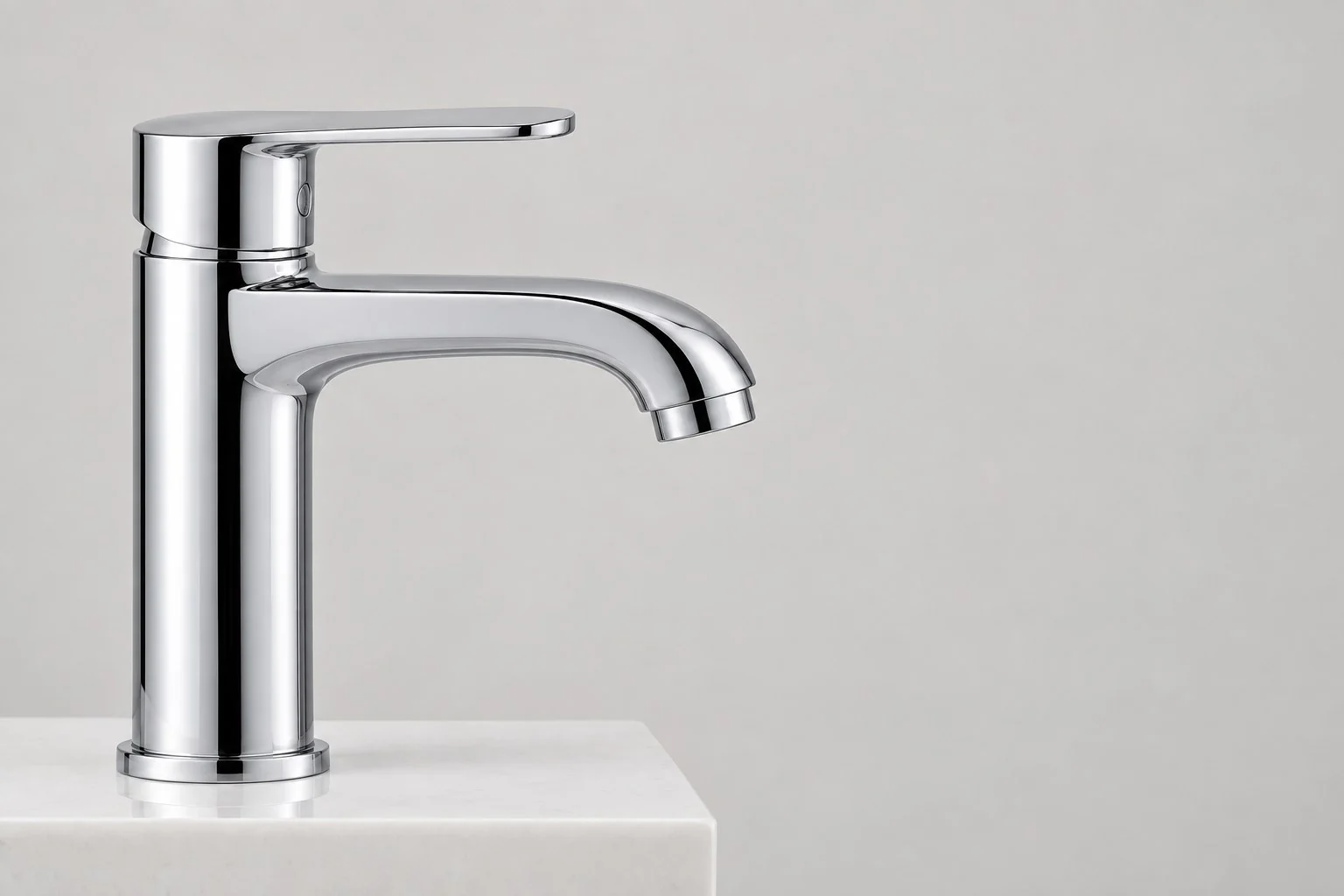

Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this basin faucet template show?
It marks 165 mm overall height, 120 mm spout reach and 85 mm outlet height, and lists a lead-free brass body, 35 mm ceramic cartridge, chrome finish, Ø 35 mm mounting hole, two 50 cm hoses and 5 L/min at 3 bar.
Can I use my own faucet photo?
Yes. Open the template in SizeMarker, replace the photo, move each line onto your faucet and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. Dimensions and flow rate are examples. Only call a faucet lead-free or state a flow rate if it has been tested and certified for drinking water in your market.
