Dimension
Length: 1900 mm · Width: 190 mm
2 × DimensionSize Labels

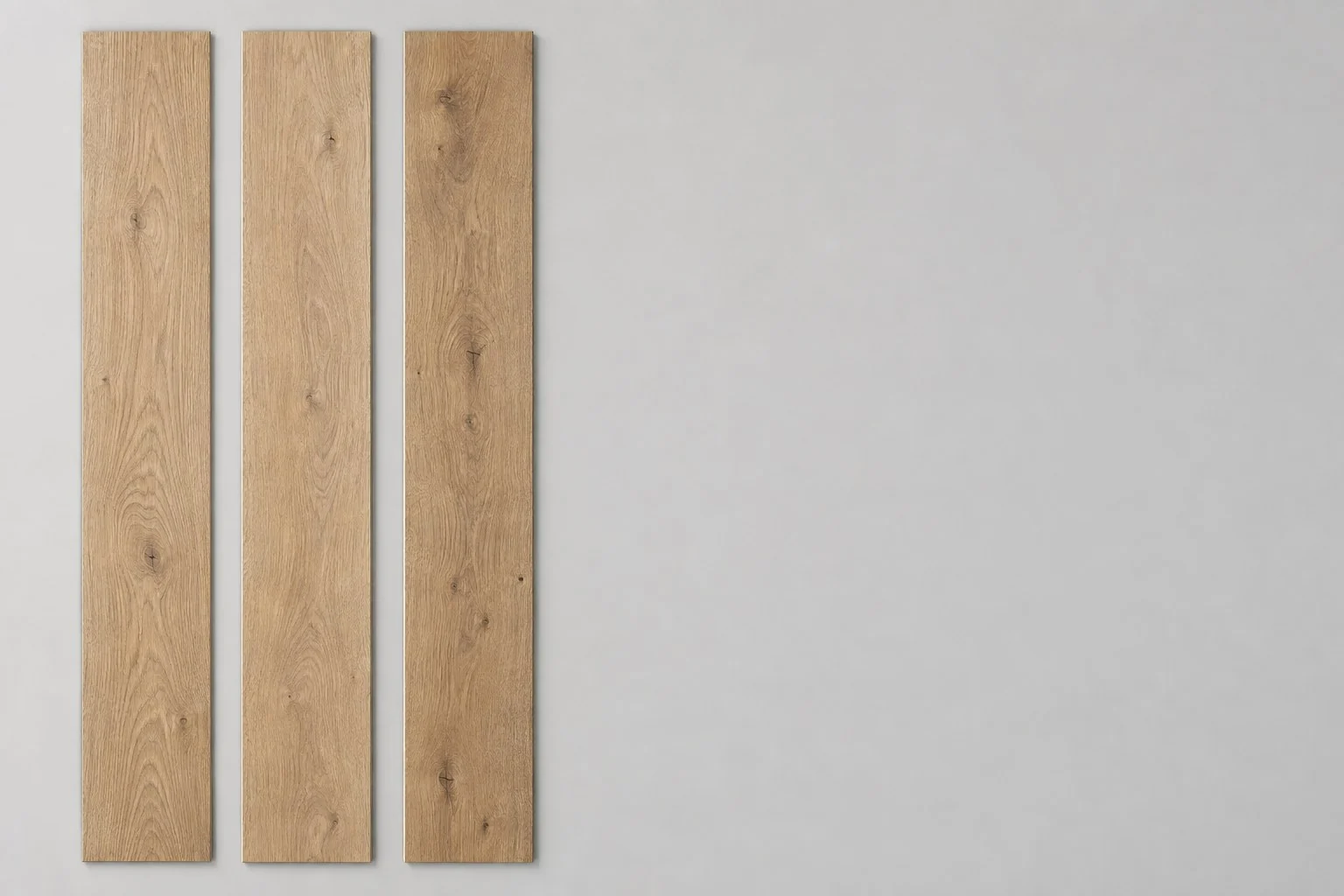

Engineered oak flooring annotation template
Flooring example for building material suppliers: 1900 × 190 mm plank, and a spec table with thickness, oak top layer, core, click system and packing.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes

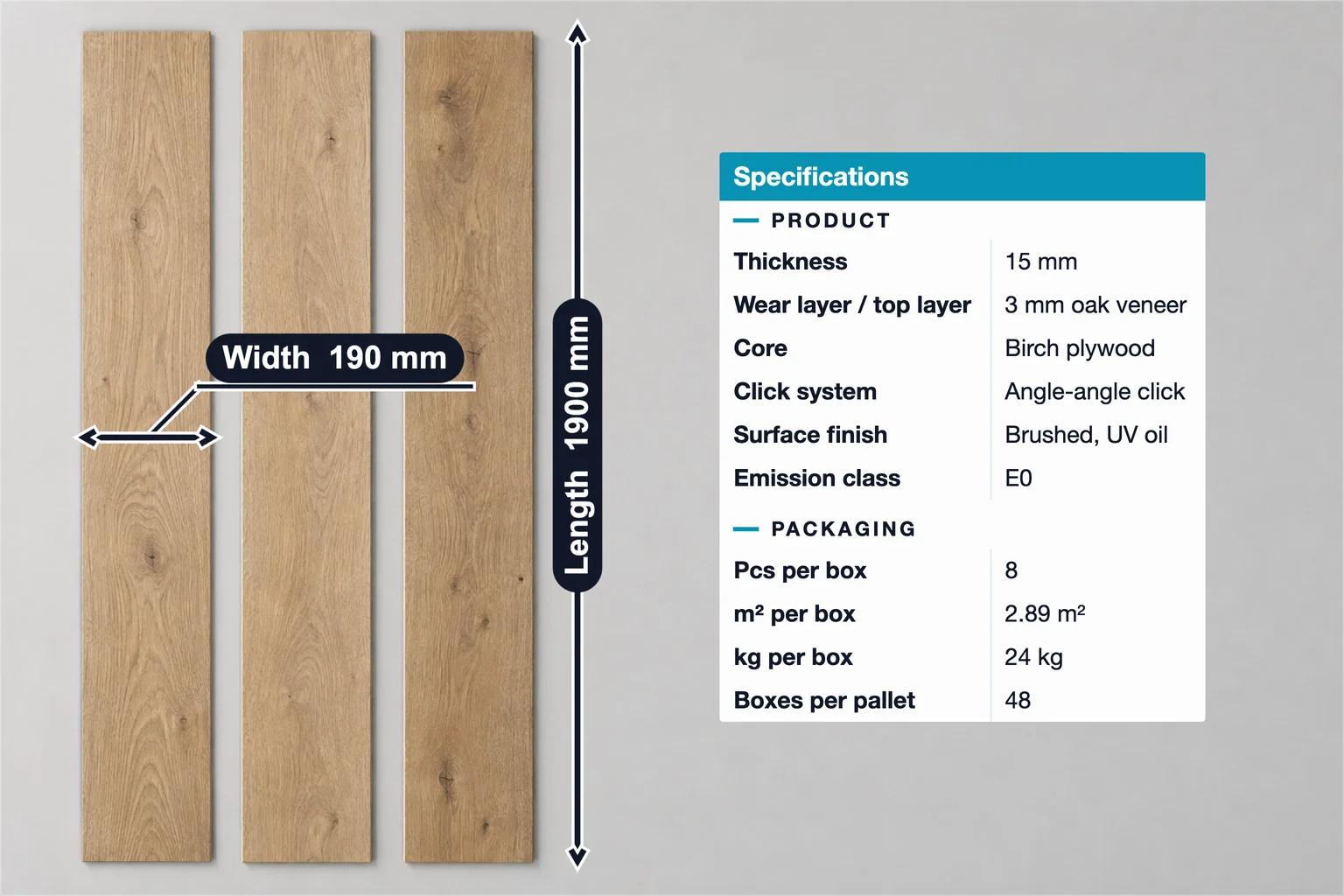

This engineered oak flooring template has 3 annotations: length and width lines for one plank and a specification table with product and packaging sections. The values are examples, not measurements of your product.
Specification table
Specifications:
1 × Specification tableSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Length
- 1900 mm
- Width
- 190 mm
- Thickness
- 15 mm
- Wear layer / top layer
- 3 mm oak veneer
Dimension2
| Annotation | Value |
|---|---|
| Length | 1900 mm |
| Width | 190 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| PRODUCT | |
| Thickness | 15 mm |
| Wear layer / top layer | 3 mm oak veneer |
| Core | Birch plywood |
| Click system | Angle-angle click |
| Surface finish | Brushed, UV oil |
| Emission class | E0 |
| PACKAGING | |
| Pcs per box | 8 |
| m² per box | 2.89 m² |
| kg per box | 24 kg |
| Boxes per pallet | 48 |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02
Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this engineered oak flooring template show?
It marks a 1900 mm long, 190 mm wide plank, and lists 15 mm thickness, a 3 mm oak top layer, birch plywood core, angle-angle click, brushed UV oil finish, E0 emission class, 8 pcs and 2.89 m² per box and 48 boxes per pallet.
Can I use my own flooring photo?
Yes. Open the template in SizeMarker, replace the photo, move the lines onto your plank and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. Sizes, layers and packing data are examples. Only state an emission class such as E0 that your flooring has been tested and certified for, and replace every other value.
