Dimension
Diameter: 60 mm · Length: 108 mm
2 × DimensionSize Labels
LED bulb annotation template

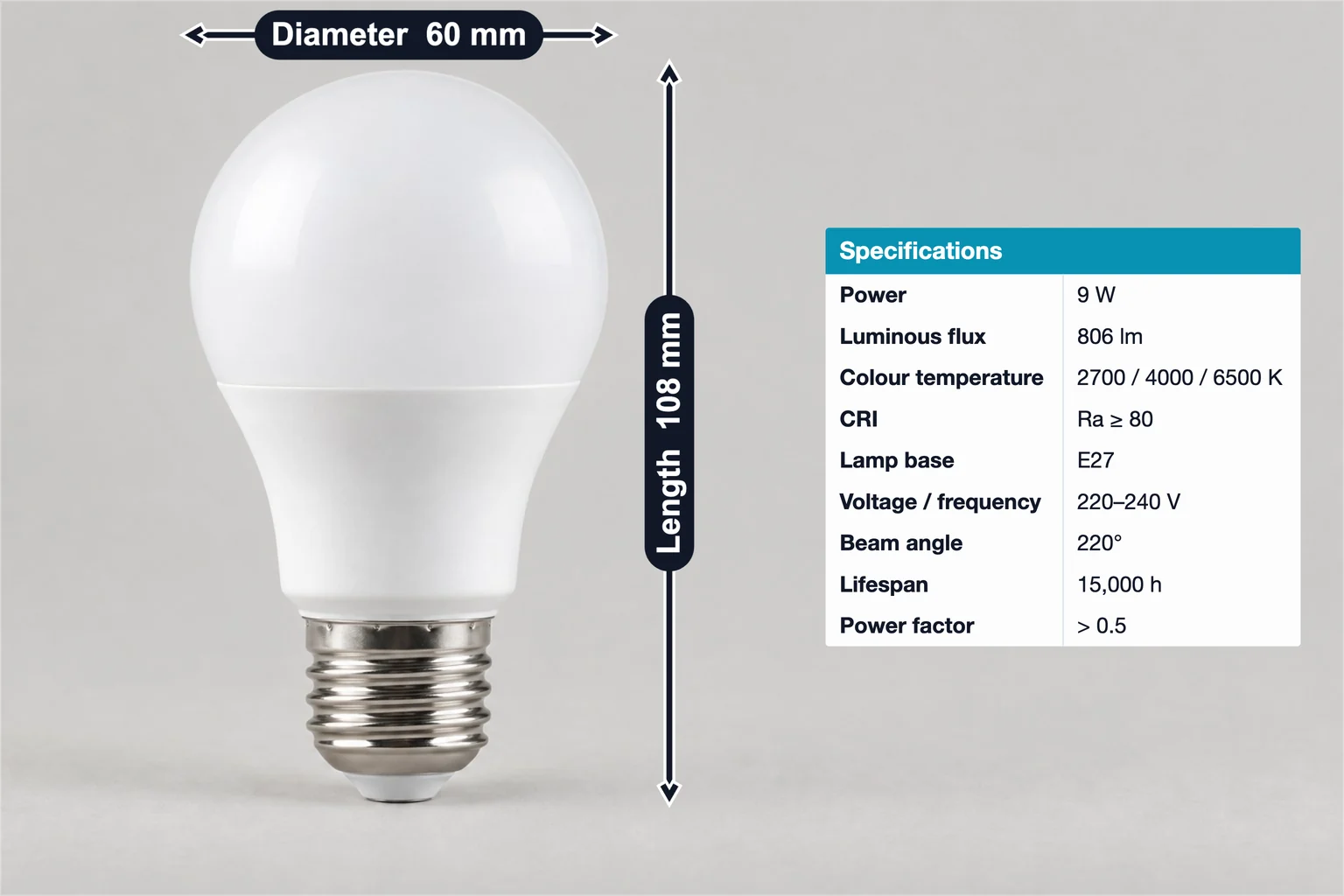

Lighting example for LED suppliers: 60 × 108 mm bulb with diameter and length lines, and a spec table with watts, lumens, CCT, CRI, base and lifespan.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes
This LED bulb template has 3 annotations: diameter and length lines and a specification table. The values are examples, not measurements of your product.
Specification table
Specifications: Power: 9 W · Luminous flux: 806 lm · Colour temperature: 2700 / 4000 / 6500 K
1 × Specification tableSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Diameter
- 60 mm
- Length
- 108 mm
- Power
- 9 W
- Luminous flux
- 806 lm
Dimension2
| Annotation | Value |
|---|---|
| Diameter | 60 mm |
| Length | 108 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| Power | 9 W |
| Luminous flux | 806 lm |
| Colour temperature | 2700 / 4000 / 6500 K |
| CRI | Ra ≥ 80 |
| Lamp base | E27 |
| Voltage / frequency | 220–240 V |
| Beam angle | 220° |
| Lifespan | 15,000 h |
| Power factor | > 0.5 |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02

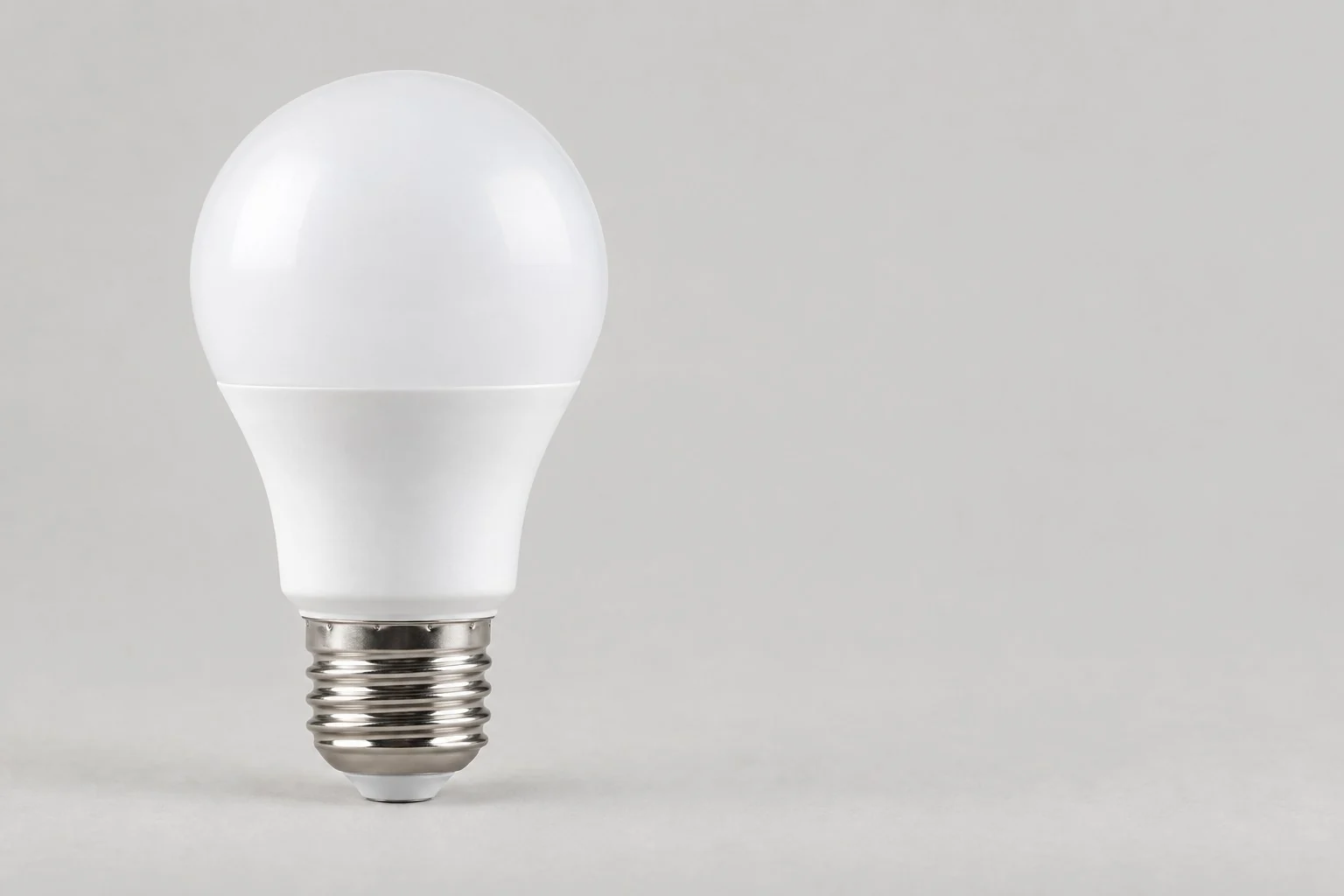

Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this LED bulb template show?
It marks a 60 mm diameter and 108 mm length, and lists 9 W, 806 lm, 2700 / 4000 / 6500 K, Ra ≥ 80, E27 base, 220–240 V, 220° beam angle, 15,000 h lifespan and power factor > 0.5.
Can I use my own bulb photo?
Yes. Open the template in SizeMarker, replace the photo, move the lines onto your bulb and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. Lumens, lifespan and electrical data are examples. Only state photometric and electrical values from your own test reports, and replace every value before exporting.
