Diameter
Outside diameter: Ø 165 mm · Bore: Ø 76 mm
2 × DiameterSize Labels
Pipe flange annotation template

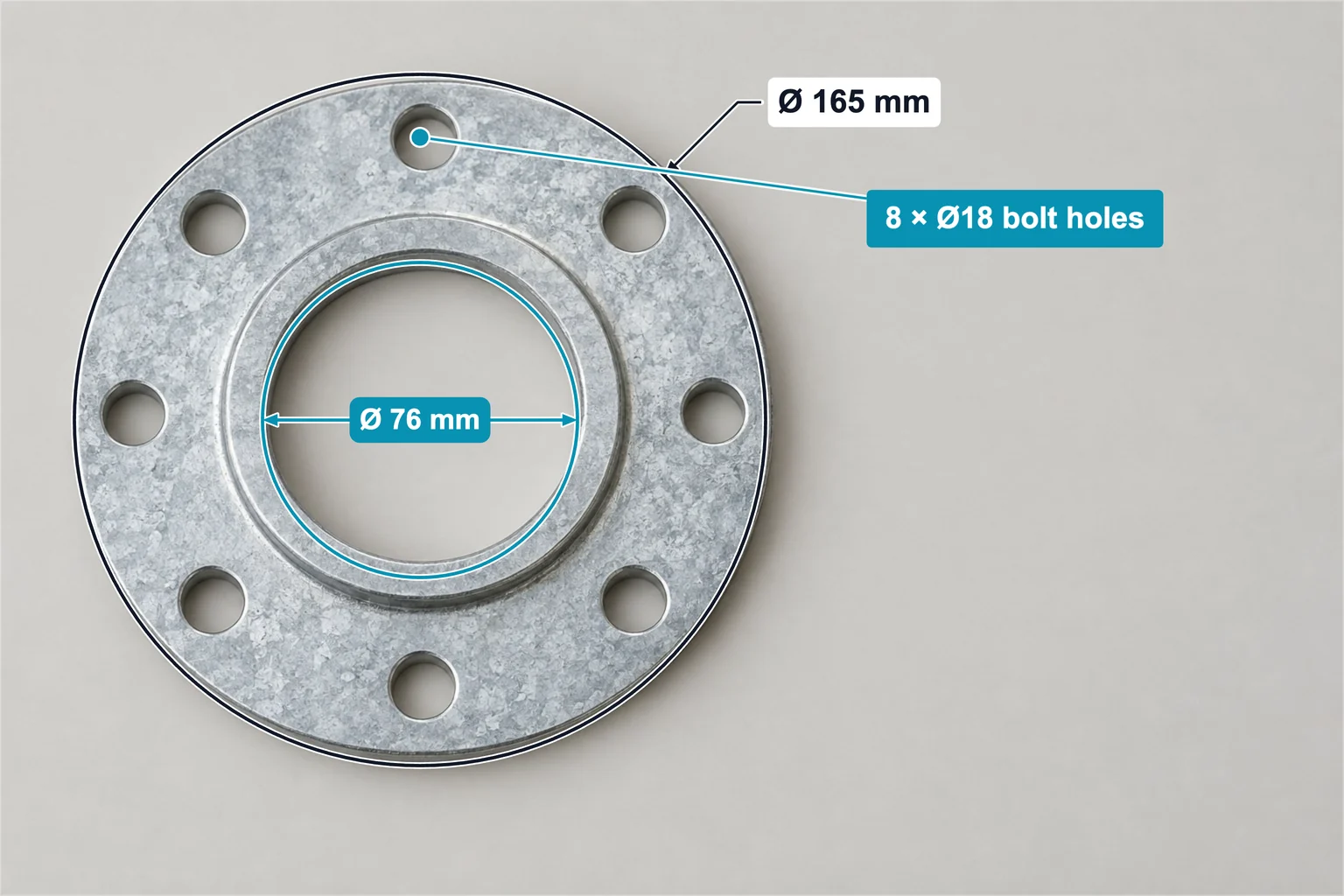

Flange example for pipe fitting suppliers: Ø 165 mm outside diameter, Ø 76 mm bore and an 8 × Ø18 bolt hole label on one photo. Add your flange data.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes
This pipe flange template has 3 annotations: two diameter markers for the outside edge and the bore, and a feature label for the bolt holes. The values are examples, not measurements of your product.
Feature label
Bolt holes: 8 × Ø18 bolt holes
1 × Feature labelSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Outside diameter
- Ø 165 mm
- Bore
- Ø 76 mm
- Bolt holes
- 8 × Ø18 bolt holes
Diameter2
| Annotation | Value |
|---|---|
| Outside diameter | Ø 165 mm |
| Bore | Ø 76 mm |
Feature label1
| Annotation | Value |
|---|---|
| Bolt holes | 8 × Ø18 bolt holes |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02
Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this pipe flange template show?
It marks a Ø 165 mm outside diameter and a Ø 76 mm bore, and labels eight Ø18 bolt holes around the face.
Can I use my own flange photo?
Yes. Open the template in SizeMarker, replace the photo, move each marker onto your product and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. The diameters and bolt holes are examples. Enter the sizes from your drawing, and add a flange standard, pressure class or bolt circle only if your flange is made and tested to it.
