Dimension
Outside dia. (OD): 9.2 mm
1 × DimensionText Labels

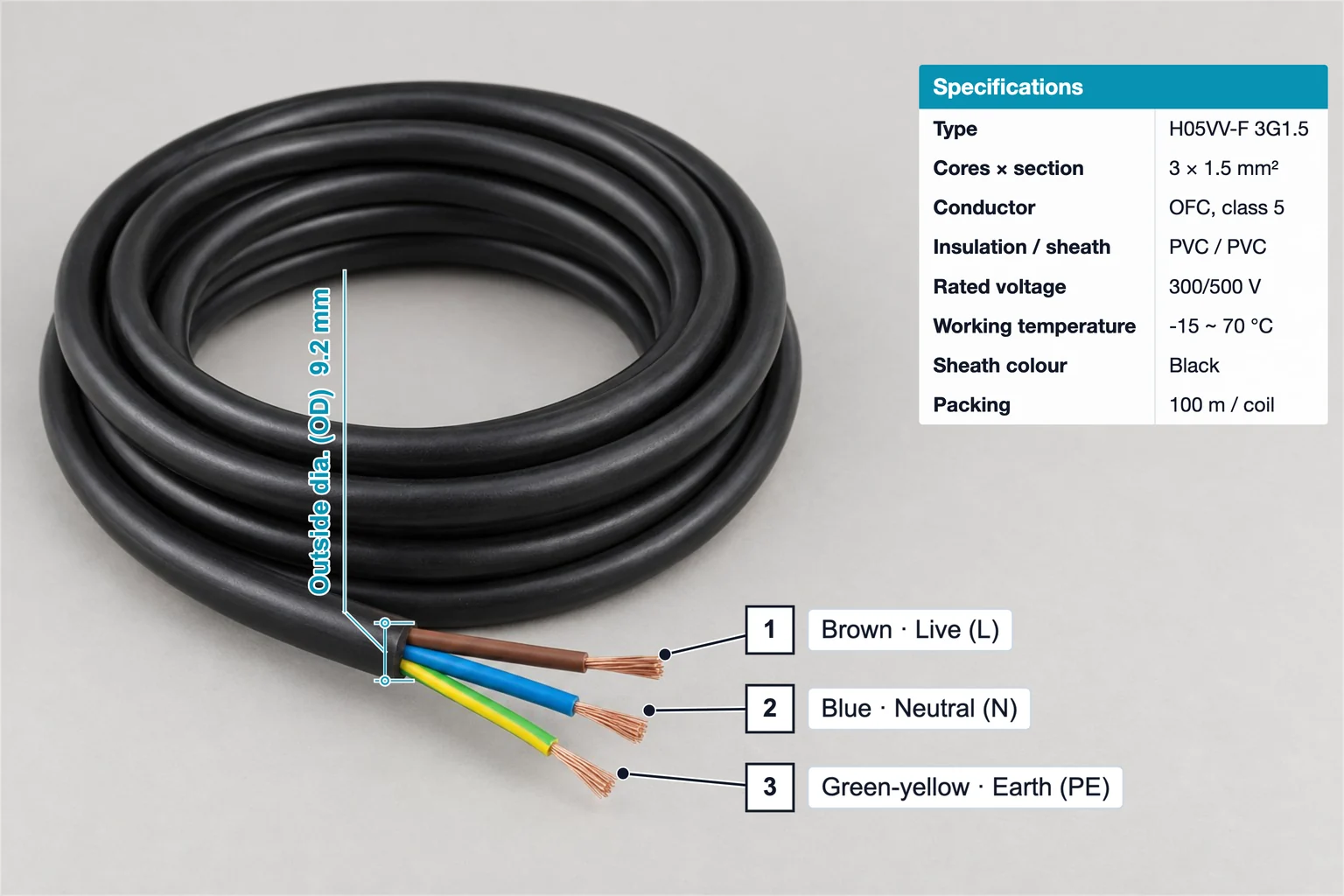

Power cable annotation template
Flexible power cable example: outside diameter, numbered core colours for live, neutral and earth, and a spec table with type, voltage and packing.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes
This power cable template has 5 annotations: an outside diameter line, three numbered core markers and a specification table. The values are examples, not measurements of your product.
Specification table
Specifications: Type: H05VV-F 3G1.5 · Cores × section: 3 × 1.5 mm² · Conductor: OFC, class 5
1 × Specification tableNumbered marker
1 Brown · Live (L) · 2 Blue · Neutral (N) · 3 Green-yellow · Earth (PE)
3 × Numbered markerSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Outside dia. (OD)
- 9.2 mm
- Type
- H05VV-F 3G1.5
- Cores × section
- 3 × 1.5 mm²
- Rated voltage
- 300/500 V
Dimension1
| Annotation | Value |
|---|---|
| Outside dia. (OD) | 9.2 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| Type | H05VV-F 3G1.5 |
| Cores × section | 3 × 1.5 mm² |
| Conductor | OFC, class 5 |
| Insulation / sheath | PVC / PVC |
| Rated voltage | 300/500 V |
| Working temperature | -15 ~ 70 °C |
| Sheath colour | Black |
| Packing | 100 m / coil |
Numbered marker3
| Annotation | Value |
|---|---|
| 1 | Brown · Live (L) |
| 2 | Blue · Neutral (N) |
| 3 | Green-yellow · Earth (PE) |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02
Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this power cable template show?
It marks a 9.2 mm outside diameter, numbers the brown live, blue neutral and green-yellow earth cores, and lists type, conductor, insulation, rated voltage, temperature range and packing in a spec table.
Can I use my own cable photo?
Yes. Open the template in SizeMarker, replace the photo, move the markers onto your cores and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. Cable type, voltage and core data are examples. Enter the specifications you have verified for your own cable.
