Dimension
Outside dia. (OD): 60.3 mm · Center to end: 64 mm · Overall length: 128 mm
3 × DimensionSize Labels
Butt-weld tee annotation template
Pipe fitting example for fitting suppliers: OD, center-to-end and length lines, plus a spec table with standard, size, schedule, material and MTC.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes

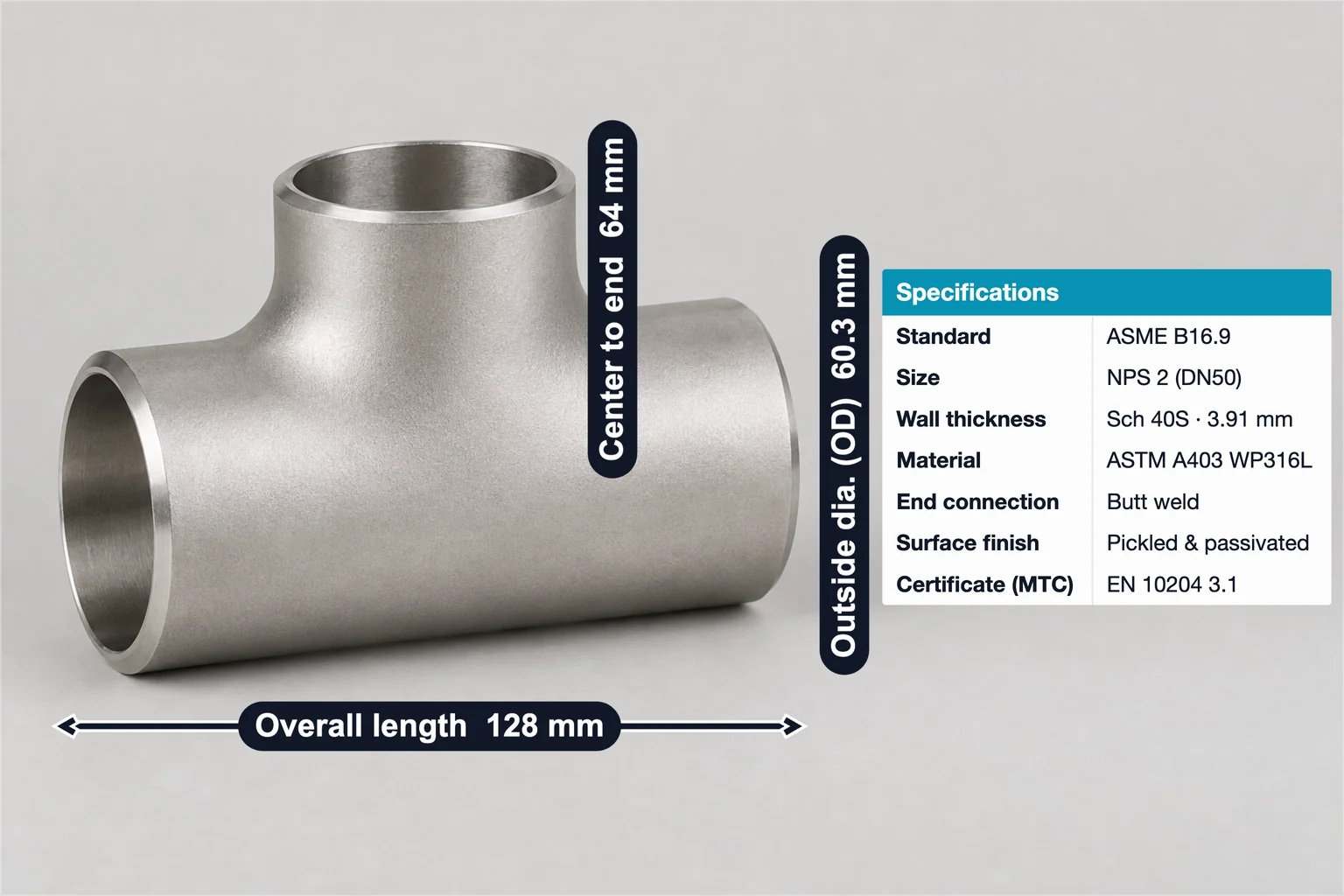

This butt-weld tee template has 4 annotations: three dimension lines and a specification table. The values are examples, not measurements of your product.
Specification table
Specifications: Standard: ASME B16.9 · Size: NPS 2 (DN50) · Wall thickness: Sch 40S · 3.91 mm
1 × Specification tableSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Outside dia. (OD)
- 60.3 mm
- Center to end
- 64 mm
- Overall length
- 128 mm
- Standard
- ASME B16.9
Dimension3
| Annotation | Value |
|---|---|
| Outside dia. (OD) | 60.3 mm |
| Center to end | 64 mm |
| Overall length | 128 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| Standard | ASME B16.9 |
| Size | NPS 2 (DN50) |
| Wall thickness | Sch 40S · 3.91 mm |
| Material | ASTM A403 WP316L |
| End connection | Butt weld |
| Surface finish | Pickled & passivated |
| Certificate (MTC) | EN 10204 3.1 |
