Dimension
Overall length: 300 mm · Overall height: 470 mm · Flange OD Ø: 220 mm
3 × DimensionSize Labels
Gate valve annotation template

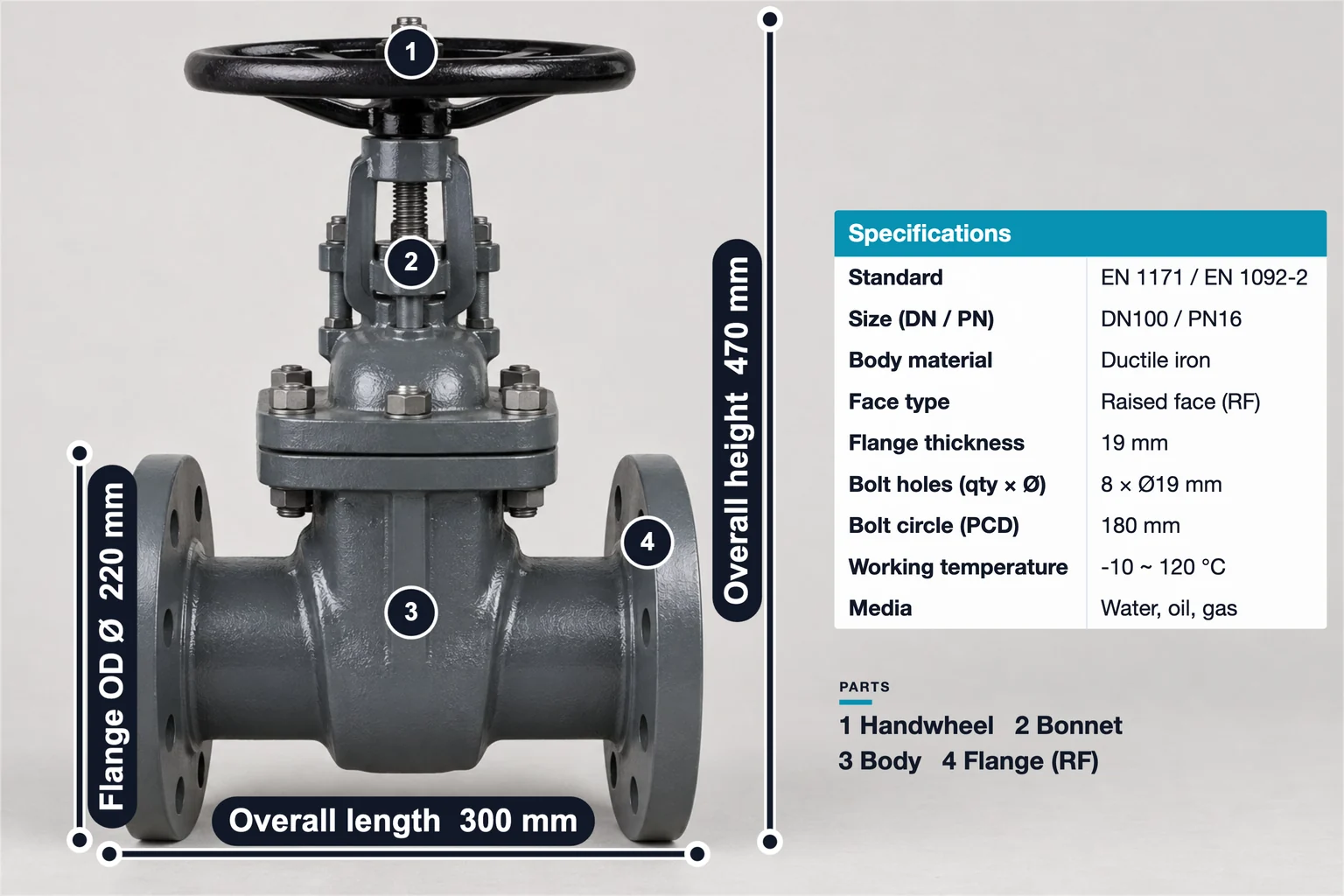

Gate valve example for valve suppliers: length, height and flange OD lines, a DN/PN spec table and numbered parts. Add your photo and verified data.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes
This gate valve template has 9 annotations: three dimension lines, a specification table, four numbered part markers and a parts legend. The values are examples, not measurements of your product.
Specification table
Specifications: Standard: EN 1171 / EN 1092-2 · Size (DN / PN): DN100 / PN16 · Body material: Ductile iron
1 × Specification tableNumbered marker
1 Handwheel · 2 Bonnet · 3 Body · 4 Flange (RF)
4 × Numbered markerText
Parts: 1 Handwheel · 2 Bonnet · 3 Body · 4 Flange (RF)
1 × TextSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Overall length
- 300 mm
- Overall height
- 470 mm
- Flange OD Ø
- 220 mm
- Size (DN / PN)
- DN100 / PN16
Dimension3
| Annotation | Value |
|---|---|
| Overall length | 300 mm |
| Overall height | 470 mm |
| Flange OD Ø | 220 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| Standard | EN 1171 / EN 1092-2 |
| Size (DN / PN) | DN100 / PN16 |
| Body material | Ductile iron |
| Face type | Raised face (RF) |
| Flange thickness | 19 mm |
| Bolt holes (qty × Ø) | 8 × Ø19 mm |
| Bolt circle (PCD) | 180 mm |
| Working temperature | -10 ~ 120 °C |
| Media | Water, oil, gas |
Numbered marker4
| Annotation | Value |
|---|---|
| 1 | Handwheel |
| 2 | Bonnet |
| 3 | Body |
| 4 | Flange (RF) |
Text1
| Annotation | Value |
|---|---|
| Parts | 1 Handwheel · 2 Bonnet · 3 Body · 4 Flange (RF) |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02
Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this gate valve template show?
It marks overall length 300 mm, overall height 470 mm and flange OD 220 mm, lists standard, DN/PN size, body material and bolt data in a spec table, and numbers four parts from handwheel to flange.
Can I use my own valve photo?
Yes. Open the template in SizeMarker, replace the photo, move each marker onto your product and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. The dimensions, standards and bolt data are examples. Enter the measurements and specifications you have verified for your own valve.
