Dimension
Length: 60 mm · Across flats: 18 mm · Thread length: 30 mm
3 × DimensionSize Labels
Hex bolt annotation template

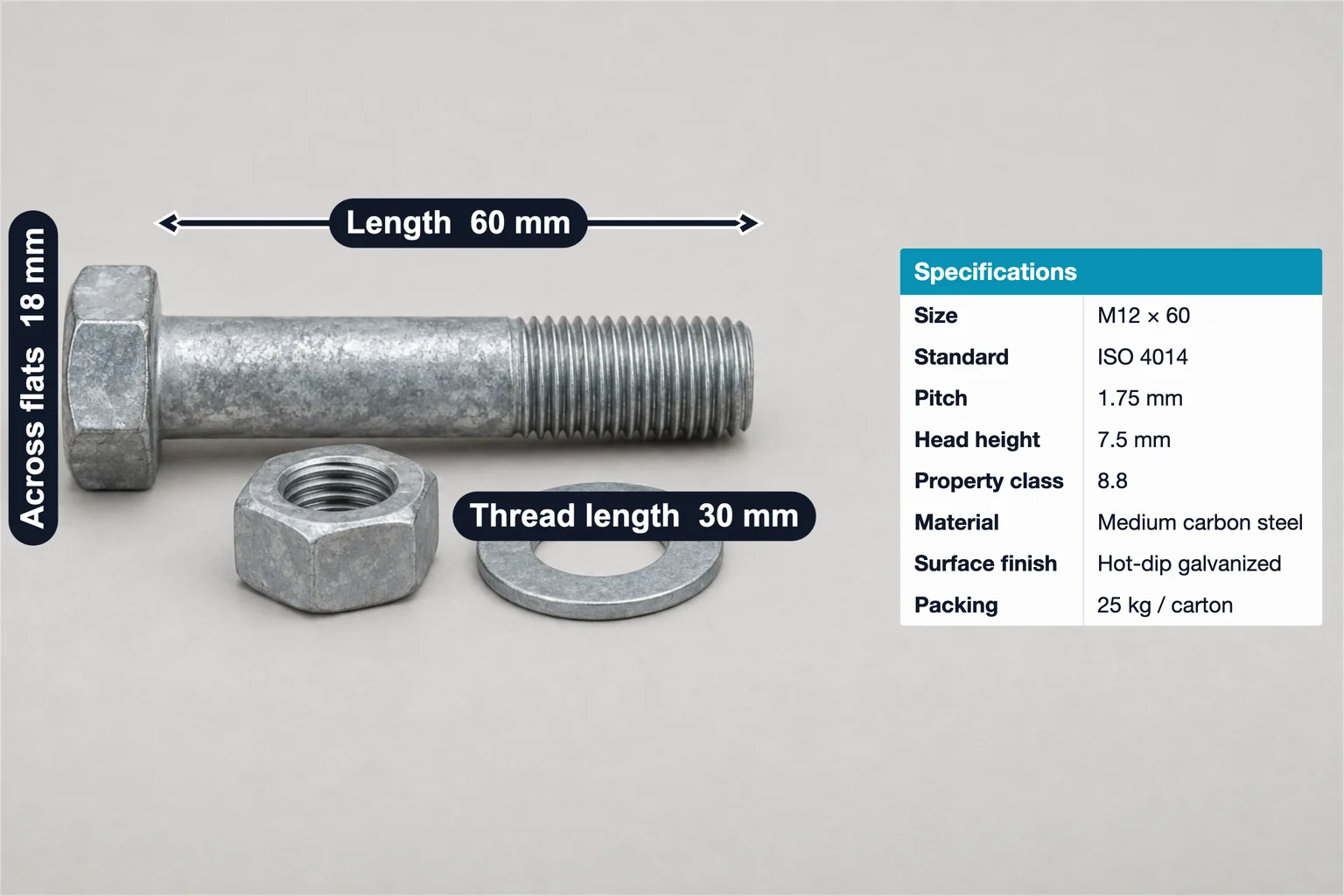

Fastener example for bolt suppliers: M12 × 60 hex bolt with length, across-flats and thread length lines, and a spec table with standard and property class.
Make it yours
Keep the layout. Add your photo and specifications.
Template overview
What this template includes
This hex bolt template has 4 annotations: three dimension lines and a specification table. The values are examples, not measurements of your product.
Specification table
Specifications: Size: M12 × 60 · Standard: ISO 4014 · Pitch: 1.75 mm
1 × Specification tableSpecifications
Example specifications
These are example values. Replace them with your product’s verified measurements and specifications.
Values shown in the image
- Length
- 60 mm
- Across flats
- 18 mm
- Thread length
- 30 mm
- Size
- M12 × 60
Dimension3
| Annotation | Value |
|---|---|
| Length | 60 mm |
| Across flats | 18 mm |
| Thread length | 30 mm |
Specification table1
| Annotation | Value |
|---|---|
| Specifications | |
| Size | M12 × 60 |
| Standard | ISO 4014 |
| Pitch | 1.75 mm |
| Head height | 7.5 mm |
| Property class | 8.8 |
| Material | Medium carbon steel |
| Surface finish | Hot-dip galvanized |
| Packing | 25 kg / carton |
Getting started
From this example to your product
- 01
Open the template
Start with this editable example in the SizeMarker editor.
- 02
Add your product photo
Replace the image and adjust the markers to fit your product.
- 03
Check and export
Enter your actual measurements and specifications, check every label, then export.
FAQ
Frequently asked questions
What does this hex bolt template show?
It marks 60 mm length, 18 mm across flats and 30 mm thread length on an M12 × 60 bolt, and lists ISO 4014, 1.75 mm pitch, 7.5 mm head height, property class 8.8, medium carbon steel, hot-dip galvanizing and 25 kg cartons.
Can I use my own fastener photo?
Yes. Open the template in SizeMarker, replace the photo, move each line onto your bolt and edit the values, labels and styles. Check every value against your product before exporting.
Can I use these values for my product?
No. Sizes, standard and property class are examples. Only state a property class or standard your bolts are produced and tested to, and replace every value before exporting.
