Dimensions / Industrial & logistics / Semi-truck trailers / Dry van

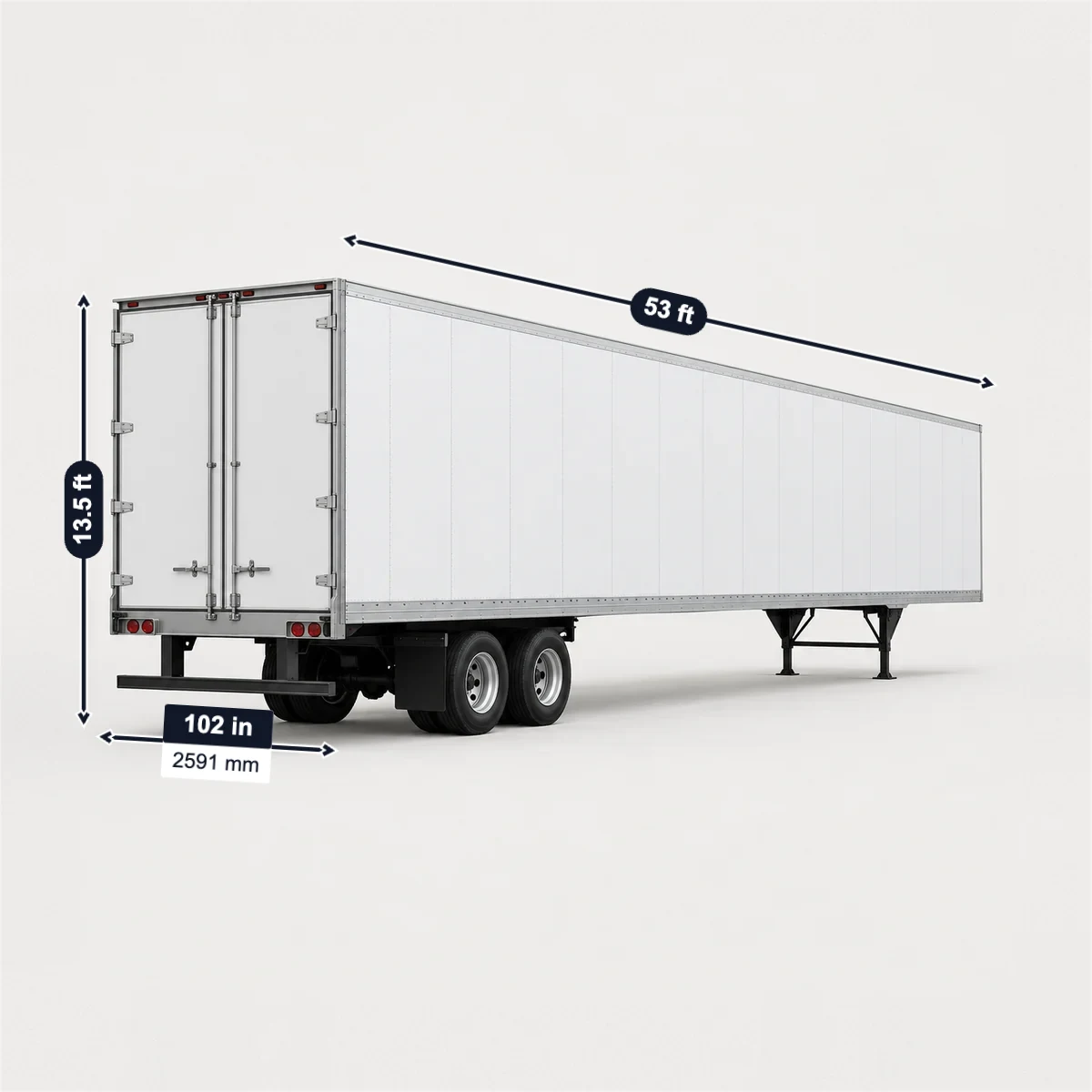

A 53 ft dry van is 53′ × 102″ × 13′6″ outside and, on Hyundai’s composite van, 52′ 6″ × 101.5″ × 110″ inside: about 16,002 × 2,578 × 2,794 mm and 4,070 cu. ft. The walls set the width, from 98.5″ on an aluminium sheet-and-post van to 101.5″ on a composite one, and the door sets the opening: Great Dane’s swing door clears 110.38″ × 98.31″, its roll-up door only 105.25″ × 93.19″. A 53 ft van takes 26 pallets of 48 × 40 loaded straight, 30 turned (Nelson), one high. Hyundai rates its van at 68,000 lbs GVWR with a 13,350 lbs tare; on the Interstate the whole rig is limited to 80,000 pounds.
| Inside width × height, Hyundai composite 53 ft | Swing door opening, Great Dane | Pallets of 48 × 40, one high: straight / turned (Nelson) |
|---|---|---|
| 2,578 × 2,794mm101.5″ × 110″ | 2,497 × 2,804mm98.31″ × 110.38″ | 26 / 30 |
Sources: Hyundai Translead, Great Dane, Nelson. Checked October 2026.
Hyundai’s composite van, Great Dane’s swing door and an example load of 48 × 40 pallets are filled in. Enter your pallets; each check uses the numbers on this page.
Sizes in millimetres, weights in kilograms (1 in = 25.4 mm, 1 ft = 304.8 mm, 1 lb = 0.4536 kg). Pallets go in straight columns, either way round. The GVWR is the trailer’s own rating; the whole rig has its own legal limit.

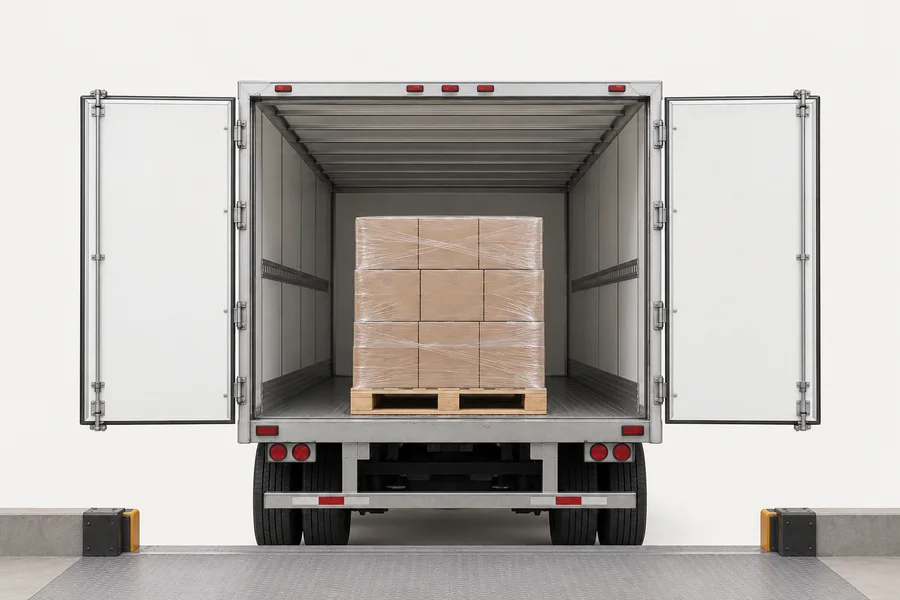

A pallet 1016 mm across its narrow side and 1500 mm high goes through the 2497 × 2804 mm door.
Great Dane’s swing door opens 110.38″ × 98.31″; its roll-up door only 105.25″ × 93.19″, so check which door the van has.
In straight columns, 30 pallets of 1219 × 1016 mm fit on the 16002 × 2578 mm floor; 1 high that is 30, enough for your 26.
Hyundai’s composite van is 52′ 6″ × 101.5″ × 110″ inside; Nelson loads 30 pallets of 48 × 40 turned, 26 straight.
26 × 800 kg = 20800 kg of cargo on the 6055 kg trailer makes 26855 kg, 3990 kg under its 30845 kg GVWR.
Hyundai: 13,350 lbs tare, 68,000 lbs GVWR. On the Interstate the whole rig, tractor included, stops at 80,000 pounds (23 CFR 658.17).
Selling by the truckload? Photograph a loaded pallet, mark its size and weight in SizeMarker and send it so the buyer can plan the van.
Mark a photoMakers’ own sheets, plus one carrier’s spec. All 53′ long, 102″ (or 102.36″ / 102-3/8″) wide and 13′ 6″ high outside.
| Van | Inside | Door; tare; GVWR |
|---|---|---|
| Hyundai Composite4,070 cu. ft.; floor 18,000 lbs | 52′ 6″ × 101.5″ × 110″ | Swing; 13,350 lbs; 68,000 lbs |
| Hyundai Composite XT | 52′ 6″ × 101.50″ above side scuff × 110″ | 13,460 lbs tare |
| Hyundai HY-CubeHDPE panels; 4,050 cu. ft. | 52′ 6″ × 101″ lining to lining × 110″ | 13,855 lbs tare |
| Hyundai OriginalAluminium sheet-and-post; 3,950 cu. ft. | 52′ 6″ × 98.5″ lining to lining × 110″ | 13,510 lbs tare; 68,000 GVWR |
| Great Dane Champion, composite | Up to 101.20″ wide × 110.20″ high | Swing 110.38″ × 98.31″; roll-up 105.25″ × 93.19″ |
| Great Dane Champion, sheet-and-post | 99.00″ to 100.50″ wide | Same doors |
| Wabash DuraPlate53′ x 102-3/8″ x 13′6″ outside | 101″ wide; 110-1/4″ high at the front, 111-1/4″ at the rear | GVWR 68,000 lb / 30,845 kg |
| Utility 4000D-X Composite | 101" wide | 110½" door opening height |
| Con-way standard 53′ dry vanCarrier spec, 2015; rear floor 48.25" high | 52′ 6″ × 100.75" | 110.25" × 98" door; 14,000 lbs empty |
Sources: Hyundai Translead · Hyundai Translead · Hyundai Translead · Hyundai Translead · Great Dane · Wabash · Utility · Con-way
| Feature | What the maker says |
|---|---|
| Door typeGreat Dane | A roll-up door opens 105.25″ × 93.19″, about 5″ lower and 5″ narrower than the 110.38″ × 98.31″ swing door |
| Wall typeGreat Dane; Hyundai | Composite up to 101.20″ inside, sheet-and-post 99.00″ to 100.50″; Hyundai 101.5″ composite against 98.5″ aluminium |
| Logistics postsUtility; Wabash | Utility posts at a maximum 24" centerlines; Wabash flush logistics on 16.6″ and 25″ centers |
| Floor ratingWabash; Utility; Great Dane | Wabash 20,000-lb dynamic, 24,000 and 28,000 lb options; Utility 20,000 lb fork truck front axle; Great Dane 19k to 28k |
| Inside height front and rearWabash | 110-1/4″ at the front, 111-1/4″ at the rear |
| Walls as securement49 CFR 393.102(c)(2) | Cargo is secured if a sided vehicle’s walls are strong enough and each article is in contact with, or close to, a wall or other articles so it cannot shift or tip |
Sources: Great Dane · Hyundai Translead · Hyundai Translead · Utility · Wabash · Utility · 49 CFR 393
| Figure | Value |
|---|---|
| Pallets of 48 × 40, 53 ftNelson, pallet maker | 30 turned; 26 if loaded straight; turning needs a 4-way entry base |
| Pallets of 48 × 40, single and double stackedMercer, carrier | 53 ft: 26 single, up to 52 double; 48 ft: 24 single |
| Width23 CFR 658.15 | 102 inches, or 2.6 meters (102.36 inches) |
| Semitrailer length23 CFR 658.13 | States must allow at least 48 feet; no overall length limit for a tractor and semitrailer |
| Weight23 CFR 658.17 | 80,000 pounds gross; 20,000 pounds on one axle; 34,000 pounds on tandem axles |
| HeightFHWA | No federal limit; most states 13 feet, 6 inches to 14 feet |
Sources: Nelson · Mercer · 23 CFR 658 · FHWA
Our conversion (1 in = 25.4 mm, 1 lb = 0.4536 kg), rounded to whole millimetres and kilograms.
| Figure | In mm or kg |
|---|---|
| Hyundai composite inside | 16,002 × 2,578 × 2,794 mm |
| Great Dane swing door | 2,497 × 2,804 mm |
| Pallet of 48 × 40 | 1,219 × 1,016 mm; 30 per layer on that floor |
| Hyundai tare; GVWR | 13,350 lbs = 6,055 kg; 68,000 lbs = 30,845 kg (Wabash’s figure) |
Sources: Hyundai Translead · Great Dane · Wabash
About 52′ 6″ long, 98.5″ to 101.5″ wide and 110″ high: Hyundai’s composite van is 52′ 6″ × 101.5″ × 110″, its sheet-and-post van 98.5″ wide. Wabash’s DuraPlate is 110-1/4″ high at the front and 111-1/4″ at the rear.
On Great Dane’s Champion, 110.38″ × 98.31″ with swing doors and 105.25″ × 93.19″ with a roll-up door. Con-way’s carrier spec gives 110.25" × 98".
26 pallets of 48 × 40 loaded straight, or 30 turned if they have a 4-way entry base (Nelson), one high; Mercer counts up to 52 double stacked. A 48 ft van takes 24 single stacked.
The walls: composite panels leave up to 101.20″ (Great Dane) or 101.5″ (Hyundai), while aluminium sheet-and-post walls leave 99.00″ to 100.50″ (Great Dane) or 98.5″ (Hyundai).
Hyundai rates its composite van at 68,000 lbs GVWR with a 13,350 lbs tare. On the Interstate the tractor, trailer and cargo together are limited to 80,000 pounds, with 34,000 pounds on a tandem.
