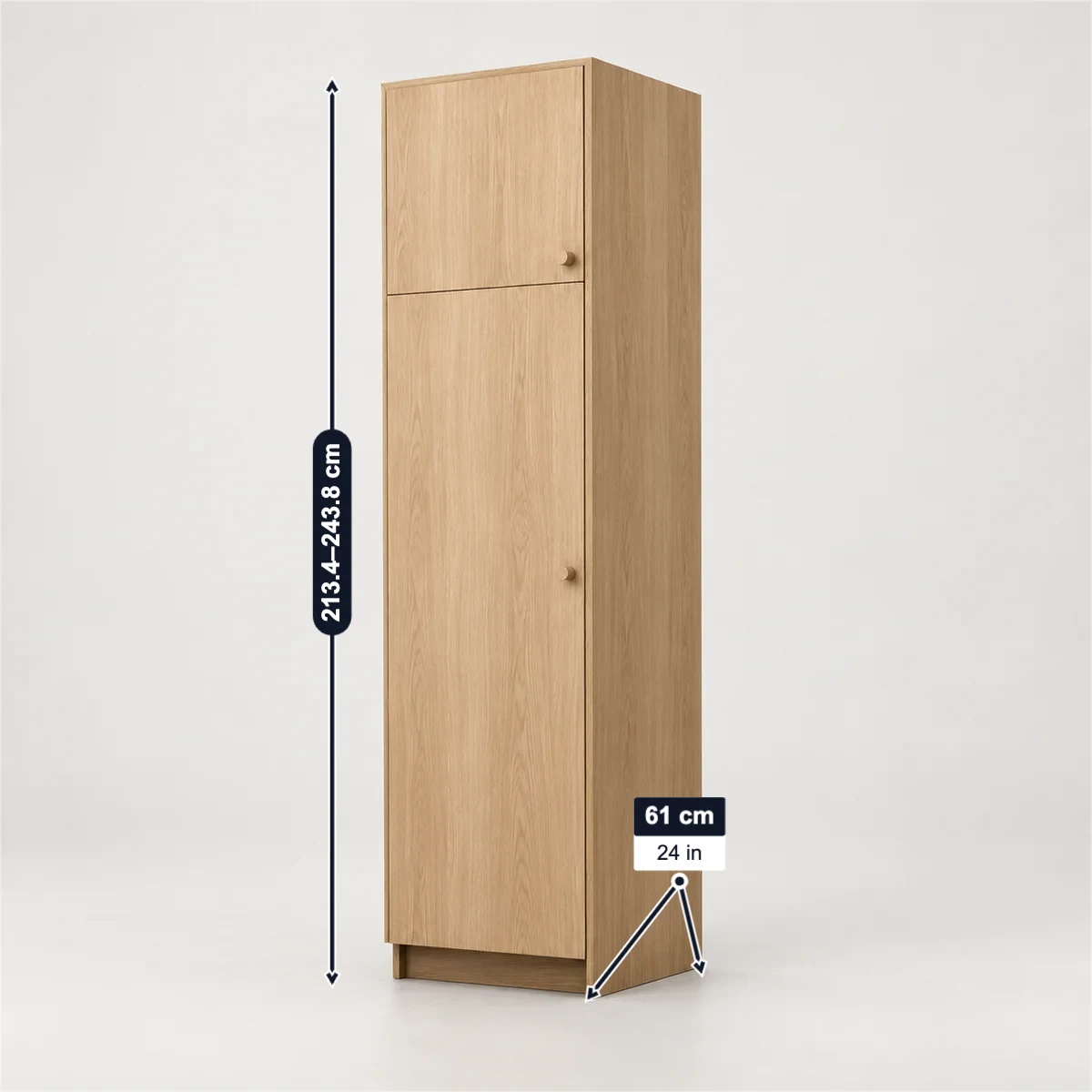

A tall pantry cabinet is 84–96 in (213.4–243.8 cm) tall in 3 in steps, 12 or 24 in (30.5 or 61 cm) deep and 9–36 in wide (KraftMaid); IKEA’s SEKTION high cabinets are 80 or 90 in and METOD 200 or 220 cm. A 90 in cabinet lines up with a 36 in wall cabinet hung at 54 in. To stand one up, KraftMaid asks an 88 1/2 in (224.8 cm) ceiling for an 84 × 24 in cabinet, and it must be fixed to a stud.
| Height | Depth | Ceiling to stand up 84 × 24 in |
|---|---|---|
| 213.4–243.8cm84–96 in | 30.5 / 61cm12 / 24 in | 224.8cm88 1/2 in |
Sources: KraftMaid, KraftMaid (spec book). Checked October 2026.
Enter the cabinet, your ceiling, the aisle in front and your stud spacing. Each check uses the numbers in the tables on this page.
All in centimetres. 1 in = 2.54 cm.

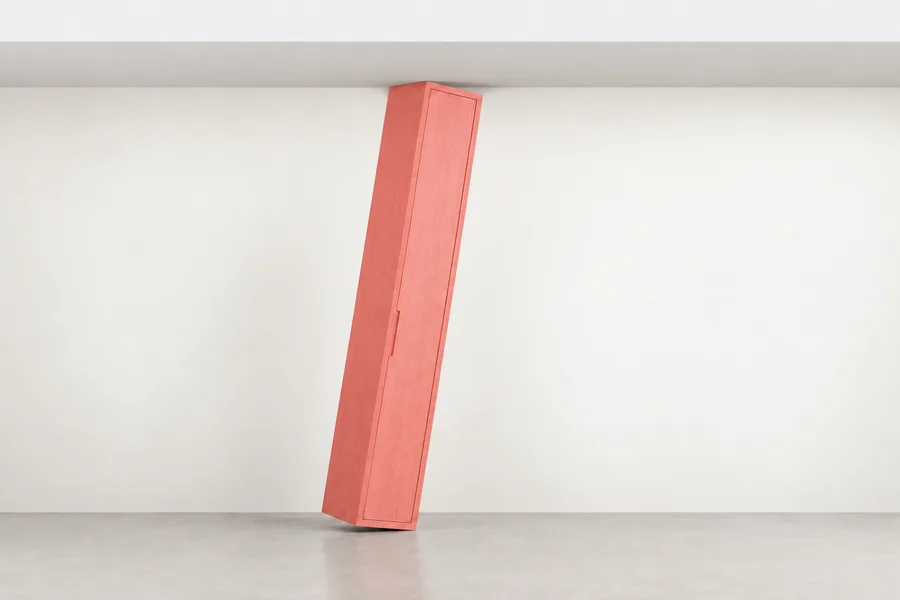

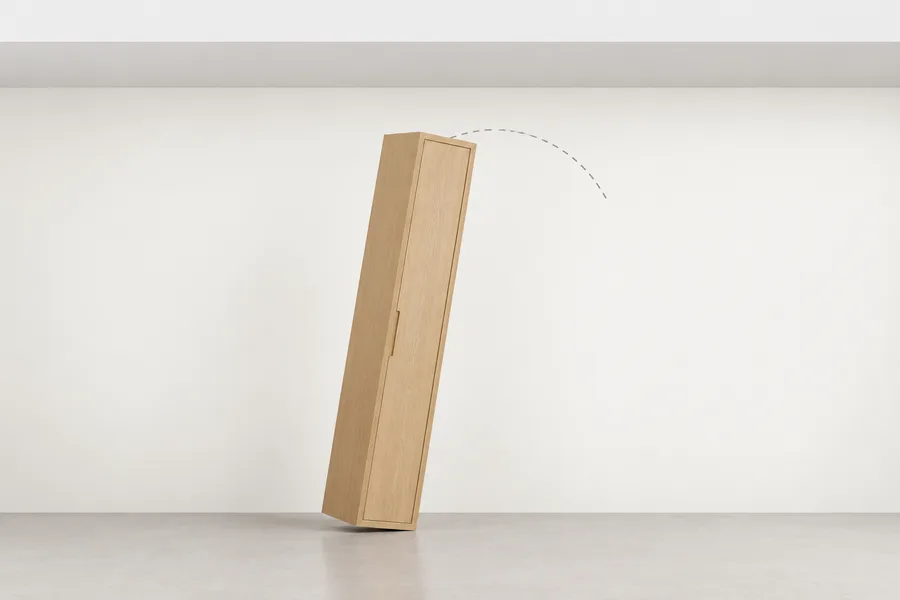

Tipped up from its back, its corner sweeps 221.9 cm high, 21.9 cm under your 243.8 cm ceiling.
The diagonal of its side. KraftMaid’s own table asks a little more, so leave a few centimetres.
Your 110 cm aisle is at least the 106.7 cm asked for one cook.
The doors and pull-outs open into it. NKBA measures between counter fronts, tall cabinets and appliances; 48 in when more than one person cooks.

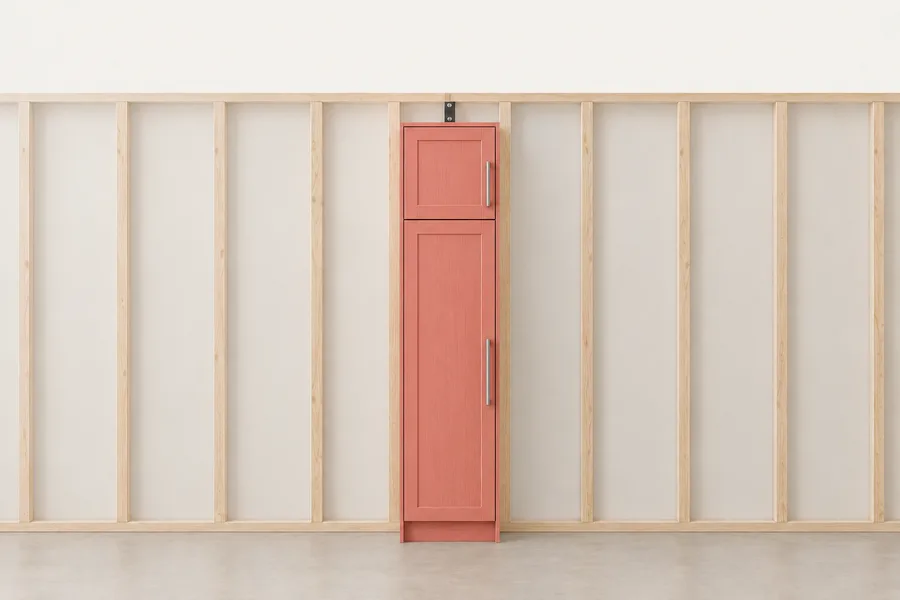

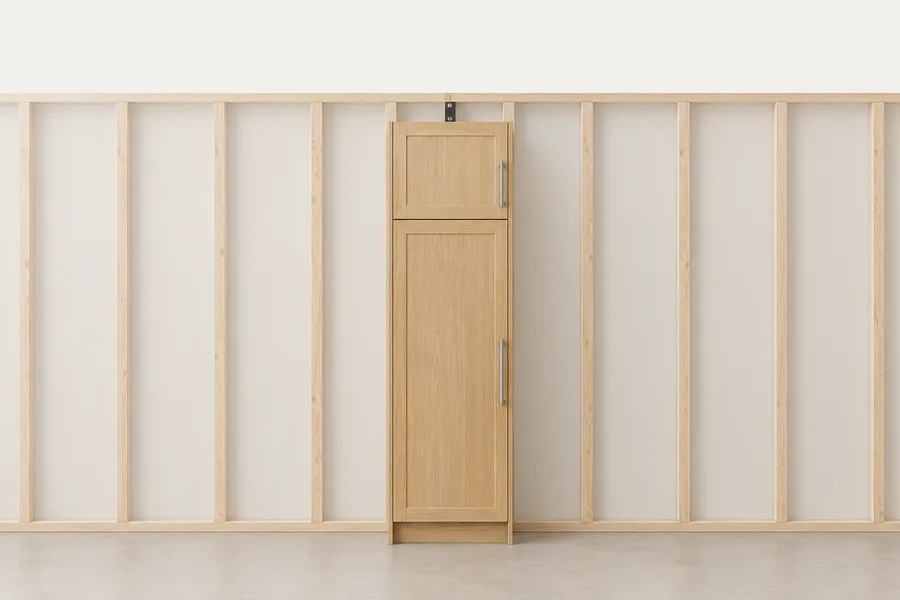

With studs 40.6 cm apart, a cabinet 61 cm wide has at least 1 behind it wherever it stands, so it can be fixed into wood.
American Woodmark fixes cabinets only to the centre of studs, and IKEA marks its high cabinets as a tipping hazard.
Fitting a pantry wall for a client? Photograph it, mark the ceiling, soffit and studs in SizeMarker and check the tall cabinets before you order.
Mark a photo| Cabinet | W × D × H |
|---|---|
| KraftMaid pantry storage pull-outFull-extension soft-close runners; shelves 20 5/16 in (51.6 cm) deep | 38.1–61 × 61 × 213.4–243.8 cm15–24 × 24 × 84–96 in |
| KraftMaid utility, U242490Four roll-out trays; top doors align with wall cabinets | 61 × 61 × 228.6 cm24 × 24 × 90 in |
| KraftMaid oven cabinet, OC302484No back in the appliance opening | 76.2 × 61 × 213.4 cm30 × 24 × 84 in |
| IKEA SEKTION high cabinetAlso 80 in; must be securely anchored | 61 × 61 × 228.6 cm24 × 24 × 90 in |
| IKEA SEKTION with pull-out pantryBaskets hold 4.1 and 8.2 kg (9 and 18 lb) | 61 × 62.9 × 203.2 cm24 × 24 3/4 × 80 in |
| IKEA METOD high cabinet frameAlso 220 cm; 240 cm is 200 cm plus a 40 cm top cabinet | 60 × 60 × 200 cm |
Sources: KraftMaid (spec book) · IKEA (SEKTION high) · IKEA (SEKTION pull-out pantry) · IKEA (UTRUSTA pantry) · IKEA (METOD high) · IKEA (METOD 240 cm)
| Guide | Size |
|---|---|
| Tall cabinet heightsKraftMaid, in 3 in steps | 213.4–243.8 cm84–96 in |
| WidthsKraftMaid | 22.9–91.4 cm9–36 in |
| Depth, to line up with wall or base cabinets | 30.5 or 61 cm12 or 24 in |
| 84 in tallFills an 8 ft ceiling with a 12 in soffit | 213.4 cm84 in |
| 90 in tallTop aligns with a 36 in wall cabinet hung at 54 in | 228.6 cm90 in |
| American Woodmark pairs themWith 30 1/8, 36 1/8 and 42 1/8 in wall cabinets | 213.4, 228.6 or 243.8 cm84, 90 or 96 in |
| IKEA kitchen height, high and wall cabinets on one rail | 214.6 cm84 1/2 in |
| Single-line kitchen with a high cabinet at one endIKEA | Install the high cabinet first |
Sources: KraftMaid · American Woodmark · IKEA Canada (installation guide) · IKEA US (installation guide)
| Rule | Size |
|---|---|
| Ceiling to tip up an 84 × 24 in cabinetKraftMaid | 224.8 cm88 1/2 in |
| A 90 × 24 in cabinet | 238.8 cm94 in |
| A 96 × 24 in cabinet | 254 cm100 in |
| An 84 × 12 in cabinet | 217.2 cm85 1/2 in |
| Box for an IKEA SEKTION 90 in frame | 238.8 cm long, 53.5 kg94 in, 117 lb 15 oz |
| FixingAmerican Woodmark | Only to the centre of wall studs |
| Wall studs, centre to centreBob Vila | 40.6 cm16 in |
| Work aisle in front, one cookNKBA | 106.7 cm42 in |
| More than one cookNKBA | 121.9 cm48 in |
| Where it goesNKBA | Not between two work centres |
Sources: KraftMaid (spec book) · IKEA (SEKTION high) · American Woodmark · Bob Vila · NKBA
KraftMaid makes tall cabinets 84–96 in (213.4–243.8 cm) in 3 in steps. IKEA’s SEKTION high cabinets are 80 or 90 in, and METOD frames 200 or 220 cm, or 240 cm with a 40 cm top cabinet.
12 or 24 in (30.5 or 61 cm), so it lines up with the wall or base cabinets beside it (KraftMaid). IKEA’s SEKTION pull-out pantry is 24 3/4 in (62.9 cm) deep with its door.
More than its height, because the corner sweeps higher as it tips up from its back: KraftMaid asks 88 1/2 in (224.8 cm) for an 84 × 24 in cabinet, 94 in (238.8 cm) for 90 in and 100 in (254 cm) for 96 in.
At KraftMaid, a 90 in cabinet aligns with a 36 in wall cabinet hung 54 in up, and an 84 in one fills an 8 ft ceiling with a 12 in soffit. American Woodmark pairs 84, 90 and 96 in tall cabinets with 30 1/8, 36 1/8 and 42 1/8 in wall cabinets.
Yes. IKEA marks its high cabinets as a tipping hazard that must be securely anchored, and American Woodmark fixes cabinets only to the centre of wall studs, usually 16 in (40.6 cm) apart.
All the way: KraftMaid’s pantry pull-out runs on full-extension runners with 20 5/16 in (51.6 cm) deep shelves, so keep the work aisle in front, 42 in (106.7 cm) for one cook (NKBA).
At the end of a run, not between two work centres: NKBA says a full-height obstacle such as a tall pantry should not separate them. In a single-line kitchen, IKEA installs the high cabinet first.
