Dimensions / Building materials / Toilets / Wall-hung toilet

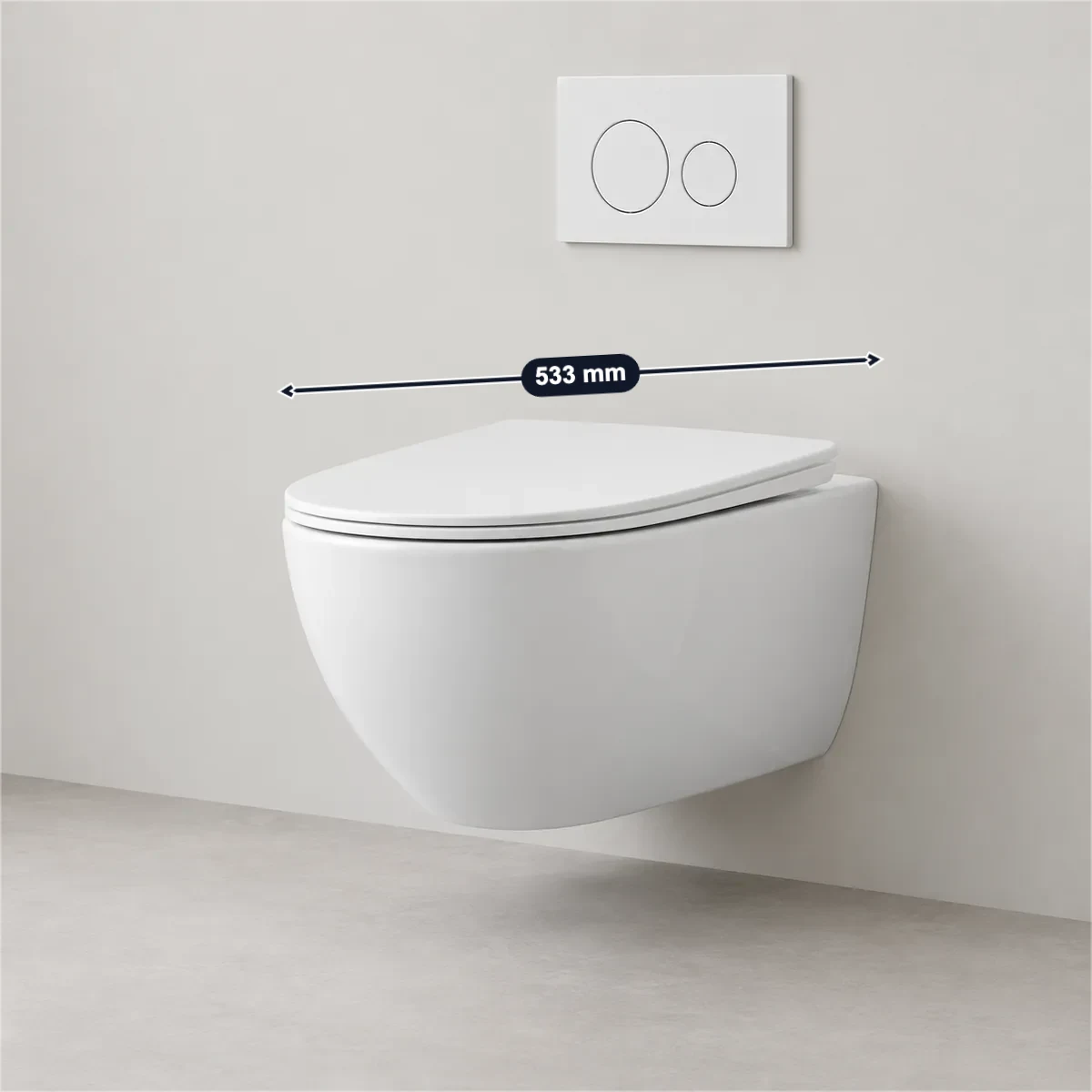

A wall-hung toilet is a bowl hung on a steel carrier inside the wall, with the tank in the wall too; only the bowl and the flush plate show. The bowls project 17-3/8 to 26-5/8 in from the wall in Geberit’s compatibility table (Kohler’s Veil 21 in), against 26-3/8 to 31-11/16 in for floor-mounted toilets. The carrier needs a wall opening at least 3-3/16 in deep for Kohler’s 2x4 frame or 5-1/2 in for its 2x6 frame, is rated to 880 lb (400 kg), and sets the rim anywhere from 15 to 19 in on Geberit’s Duofix. The IPC allows a 30 × 56 in compartment for a wall-hung toilet, against 30 × 60 in for a floor-mounted one.
| Bowl projection | Carrier rating | Rim height (Geberit Duofix) |
|---|---|---|
| 17-3/8–26-5/8in | 880lb400 kg | 15–19in381–483 mm |
Sources: Geberit North America. Checked October 2026.
Kohler’s 2x6 carrier in a 5-1/2 in cavity, the room measured in the bathroom and Kohler Veil’s 6.0 / 3.0 L dual flush are filled in; change the carrier, what you measured, the code or the flush.
Rough-ins and carrier depths are the makers’ printed minimums; clearances are the model plumbing codes, which a local code may change.
The Kohler K-6284 carrier for 2x6 studs needs a wall cavity at least 5-1/2 in (140 mm) deep; yours is 5-1/2 in (140 mm). Like the others here it is rated to 880 lb (400 kg).
Kohler’s 2x6 carrier needs a wall opening 5-1/2 in deep, its 2x4 carrier 3-3/16 in.
IPC 405.3.1 asks for at least 15 in (381 mm) from the toilet’s centreline to a side wall or obstruction and 21 in (533 mm) clear in front of it; you have 15 in and 21 in.
A wall-hung bowl needs the same side and front room as a floor toilet: 15 in and 21 in under the IPC.
Canada’s plumbing code (2025) allows 4.8 L for a single flush and 6.0 / 4.1 L for a dual flush in homes. This toilet flushes 6 / 3 L.
Kohler’s Veil flushes 6.0 / 3.0 L, inside Canada’s 6.0 / 4.1 L for a dual flush.
Selling wall-hung toilets? Photograph the bowl from the side and its back with the fixing holes, mark projection, width, bowl height and the bolt centres in SizeMarker, and send the picture with your quote.
Mark a photoFrom Geberit North America’s compatibility table, which calls every figure approximate; Kohler’s own sheet gives the millimetres.
| Bowl | Projection | Width |
|---|---|---|
| Kohler Veil K-6299This page | 21 in (533 mm) | 15-1/8 in (384 mm) |
| Kohler Memoirs K-6918Square | 24-3/8 in | 17 in |
| TOTO AP CT426CFGElongated | 21-1/4 in | 15 in |
| TOTO RP Compact CT427CFGCompact | 19-1/4 in | 15 in |
| TOTO Neorest WX1Elongated | 26-5/8 in | 17-5/8 in |
| Duravit D-Neo 257709Elongated | 21-1/4 in | 14-5/8 in |
| Duravit ME by Starck 252909Round front | 17-3/8 in | 14-1/8 in |
| Laufen Pro 820968Round front | 20-7/8 in | 14-3/16 in |
| Villeroy & Boch Subway 5614Round front | 22 in | 14-5/8 in |
Sources: Geberit North America · Kohler

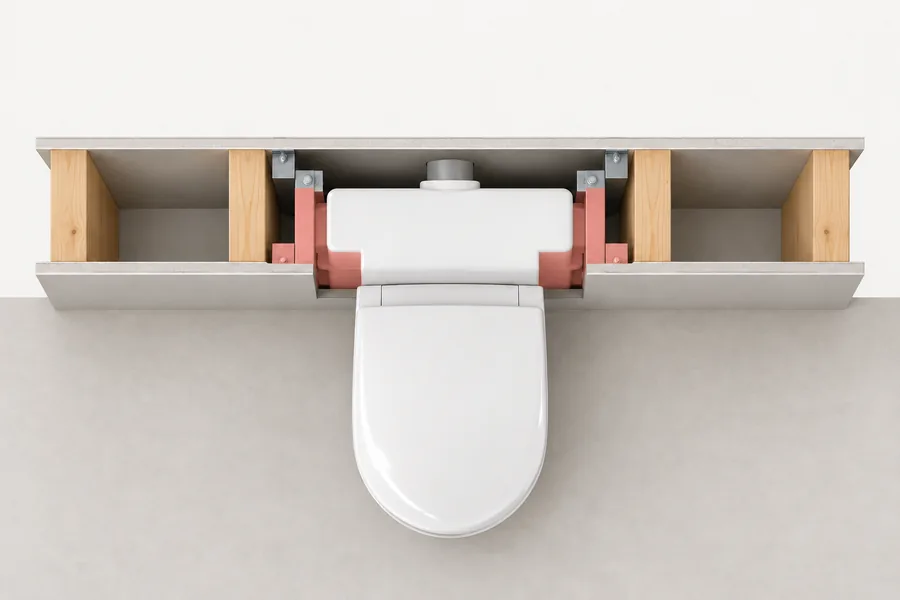

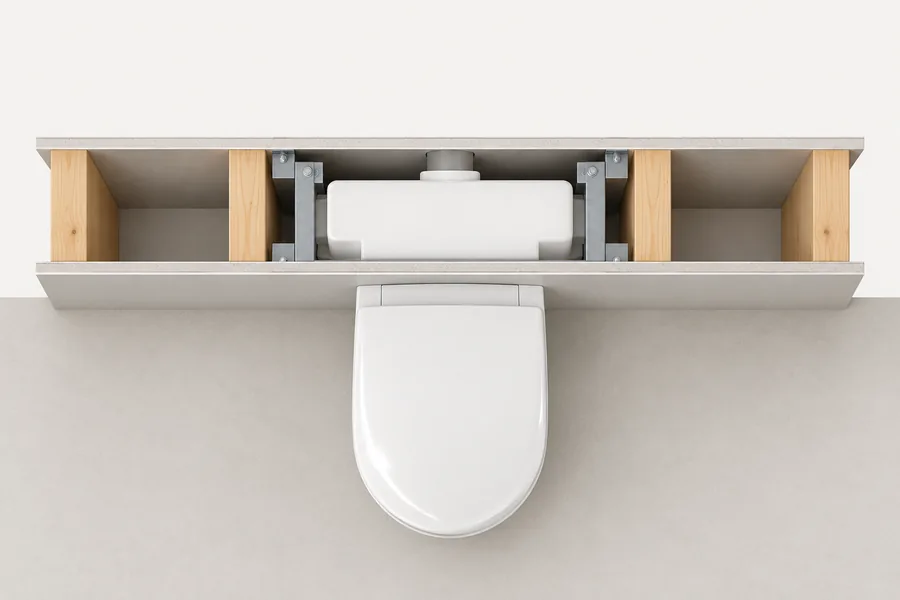

The carrier holds the bowl and the concealed tank; the wall has to be deep enough for it.
