Dimensions / Industrial & logistics / Shipping containers / 40 ft

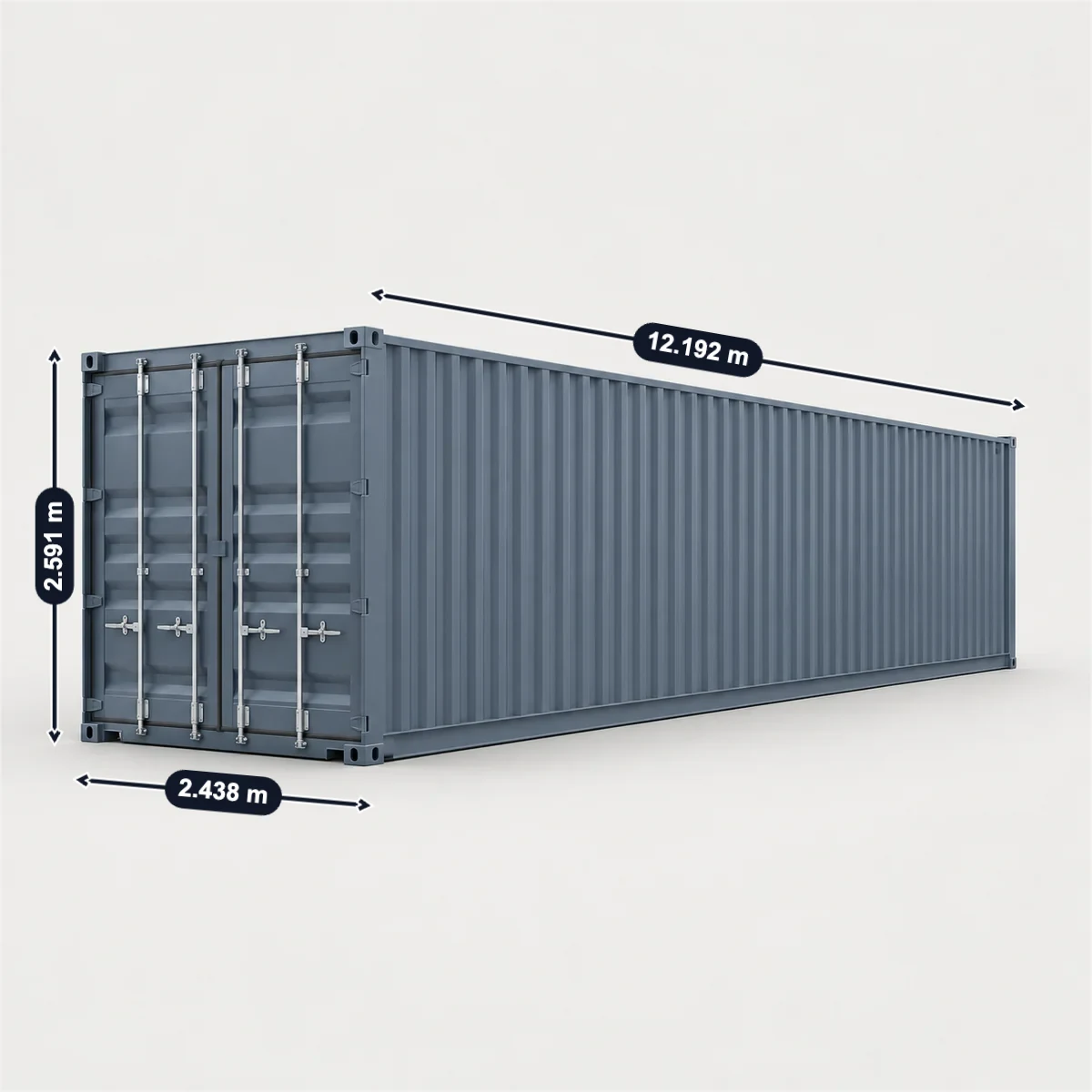

A 40 ft dry container is 12,192 × 2,438 × 2,591 mm outside (ISO 668), the same width and height as a 20 ft, and usually 12,032 × 2,352 × 2,393 mm inside with a 2,340 × 2,280 mm door and 67.7 m³ (Triton, Seaco, SeaCube). It takes twice the volume of a 20 ft but not twice the weight: Triton’s 40 ft carries 28,960 kg against 28,380 kg for its 20 ft, and ONE lists 26,840 kg. One layer holds about 23–25 Euro pallets or 20 North American ones.
| Inside length | Inside width × height | Door, width × height |
|---|---|---|
| 12,032mm | 2,352 × 2,393mm | 2,340 × 2,280mm |
Sources: Triton (40ft). Checked October 2026.
This starts from Triton’s 40 ft. Change it to the box on your booking, then enter your pallets and how high you will stack them.
Sizes in millimetres, weights in kilograms. 1 in = 25.4 mm, 1 lb = 0.454 kg.
Its 1016 mm side goes through the 2340 mm door with 1324 mm to spare, and its 1600 mm height clears the 2280 mm opening by 680 mm.
A 40 ft has the same door as a 20 ft: 2,340 × 2,280 mm at Triton and Seaco.

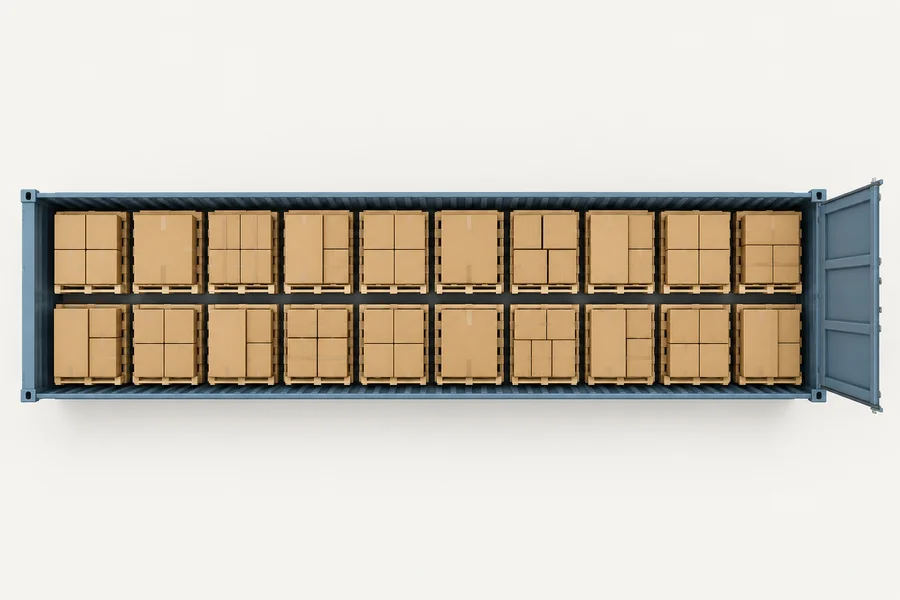

One layer takes 20 pallets of 1219 × 1016 mm in straight rows; 1 high that is 20, enough for your 20.
Triton says up to 25 Euro pallets per layer, Seaco about 23: leave room to handle them.
20 pallets × 1000 kg = 20000 kg, 8960 kg under the 28960 kg maximum payload.
Double the floor is not double the weight: Triton’s 40 ft carries 28,960 kg, its 20 ft 28,380 kg.
Planning a full 40 ft for a buyer? Photograph a loaded pallet, mark its size in SizeMarker and send it with the pallet count.
Mark a photo| Container | Inside, L × W × H | Door, W × H |
|---|---|---|
| Triton, 40 ft drySeaco, SeaCube and DFIC agree | 12,032 × 2,352 × 2,393 mm | 2,340 × 2,280 mm |
| ONE, 40 ft dry | 12,032 × 2,350 × 2,390 mm | 2,340 × 2,280 mm |
| Hapag-Lloyd, 40 ftMain series | 12,032 × 2,352 × 2,395 mm | 2,340 × 2,292 mm |
| Textainer, 40 ft standard | 12,025 × 2,348 × 2,385 mm | 2,340 × 2,275 mm |
| Evergreen, 40 ft steel | 12.032 × 2.352 × 2.385 m | 2.343 × 2.280 m |
| COSCO SHIPPING Lines, 40 ft | 12,031 × 2,352 × 2,392 mm | 2,340 × 2,280 mm |
Sources: Triton (40ft) · Seaco (40ft) · SeaCube (40 foot standard dry) · DFIC (42G1) · ONE · Hapag-Lloyd · Textainer · Evergreen · COSCO SHIPPING Lines
| Container | Tare; max gross | Payload; volume |
|---|---|---|
| Triton | 3,540 kg; 32,500 kg | 28,960 kg; 67.7 m³ |
| Seaco | 3,640 kg; 32,500 kg | 28,860 kg; 67.7 m³ |
| SeaCube | 3,640 kg; 32,500 kg | 28,860 kg; 67.7 m³ |
| DFIC (COSCO SHIPPING group), 42G1 | 3,550 kg; 32,500 kg | 28,950 kg; 67.8 m³ |
| ONEListed at a 30,480 kg rating | 3,640 kg; 30,480 kg | 26,840 kg; 67.6 m³ |
| Hapag-Lloyd | 3,700 kg; 32,500 kg | 28,800 kg; 67.7 m³ |
| Evergreen | 4,000 kg; 30,480 kg | 26,480 kg; 67.5 m³ |
| Textainer | 3,700 kg; 32,500 kg | 28,800 kg; 67.34 m³ |
| Triton’s 20 ft, for comparison | 2,100 kg; 30,480 kg | 28,380 kg; 33.2 m³ |
Sources: Triton (40ft) · Seaco (40ft) · SeaCube (40 foot standard dry) · DFIC (42G1) · ONE · Hapag-Lloyd · Evergreen · Textainer · Triton (20ft)
| Guide | Size or rule |
|---|---|
| Outside, ISO 668 (1AA)IMO CTU Code guidance; feet from BIC | 12,192 × 2,438 × 2,591 mm40 ft × 8 ft × 8 ft 6 in |
| Size-type codeBIC | 42G1: 40 ft long, 8 ft 6 in high, general purpose |
| Counted asEurostat; Evergreen | 2 TEU, or one FEU |
| Gooseneck tunnelHapag-Lloyd | On all its 40 ft boxes, for a gooseneck chassis |
| Fork-lift pocketsIMO, 30 ft and longer | If fitted, for lifting empty containers only |
| DoorsIMO CTU Code guidance | Some are built with a door at each end |
| Floor load per running metreHapag-Lloyd | 3 t (20 ft: 4.8 t) |
| Centre of gravityCTU Code | At most 60% of the cargo mass in half the length |
| US rail, maximum grossEvergreen; chassis included | 67,200 lbs (20 ft: 52,900 lbs) |
| Pallets in one layerSeaco: about 23 Euro; Triton: up to 25 | Euro, 1.2 × 0.8 m: 23–25; North American, 1.016 × 1.219 m: 20 |
| When to choose itSeaCube | When you don’t need a high cube’s extra height |
Sources: IMO (CTU Code guidance) · BIC · Eurostat (TEU) · Evergreen · Hapag-Lloyd · CTU Code · Evergreen (US rail) · Seaco (40ft) · Triton (40ft) · SeaCube (40 foot standard dry)
Usually 12,032 × 2,352 × 2,393 mm, with a 2,340 × 2,280 mm door and 67.7 m³ (Triton, Seaco, SeaCube, DFIC). Textainer lists 12,025 × 2,348 × 2,385 mm and Evergreen 2.385 m high, so allow a few millimetres.
In volume, about: 67.7 m³ against 33.2 m³ (Triton). In weight, no: the payload is about the same, 28,960 kg against 28,380 kg at Triton, and some carriers list less for the 40 ft (ONE 26,840 kg).
In one layer, about 23 Euro pallets (Seaco) or up to 25 (Triton), or 20 North American pallets of 1.016 × 1.219 m (Seaco).
A tunnel in the underside that lets the box ride on a gooseneck chassis. Hapag-Lloyd fits one to all its 40 ft containers.
Only when it is empty: on containers of 30 ft and longer, fork-lift pockets, where fitted, are for lifting empty containers (IMO).
Evergreen gives 67,200 lbs maximum gross on US rail, chassis included, against 52,900 lbs for a 20 ft.
