Dimensions / Industrial & logistics / IBC totes / 275 gallon

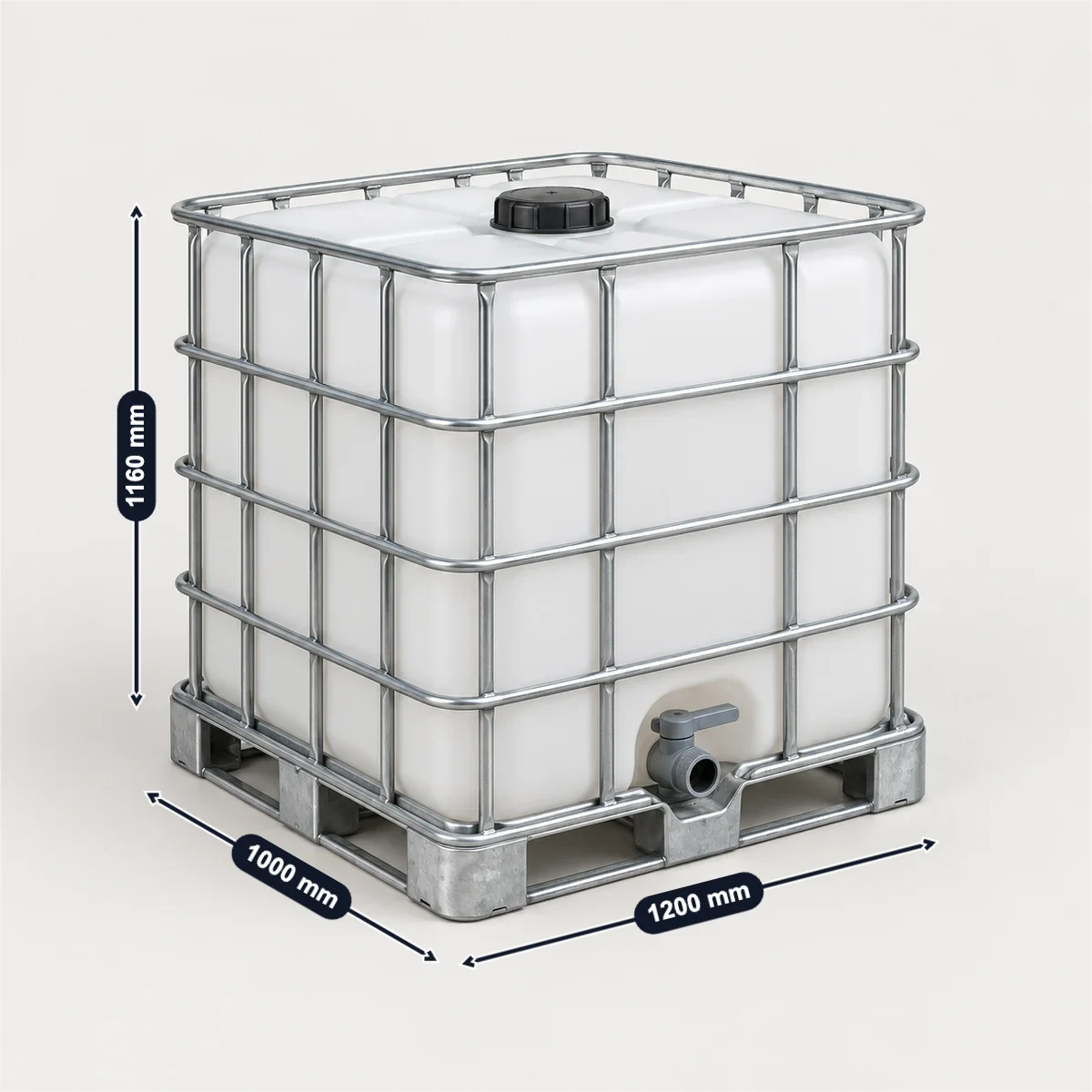

A 275-gallon IBC tote holds 1,000 litres nominal, 1,060 l brimful, and measures 1200 × 1000 × 1160 mm (Schütz ECOBULK MX 1000); US sellers list it as 48 × 40 × 46 in. Heights run 1135–1175 mm by maker and pallet: Werit’s TOPline is 1135–1164 mm, Time Technoplast’s 1155–1175 mm. Empty, Schütz’s weighs 56 kg on a steel pallet and 59 kg on plastic, and it takes liquids up to density 1.9. A real mark reads 31HA1/Y/…/4056/2037: 4056 kg stacking test load and 2037 kg maximum gross mass. Fill to no more than 98% at 50 °C (RID), and plan 18 per 20 ft container (Mauser).
| Length | Width | Height, Schütz MX 1000 |
|---|---|---|
| 1200mm | 1000mm | 1160mm |
Sources: Schütz (MX). Checked October 2026.
Schütz’s MX 1000 UN FDA and its mark are filled in, two high in Triton’s 20 ft. Enter your fill and density; each check uses the numbers in the tables on this page.
Sizes in millimetres, weights in kilograms. The UN mark ends with the stacking test load and the maximum gross mass in kg; a stacking test load of 0 means not stackable.

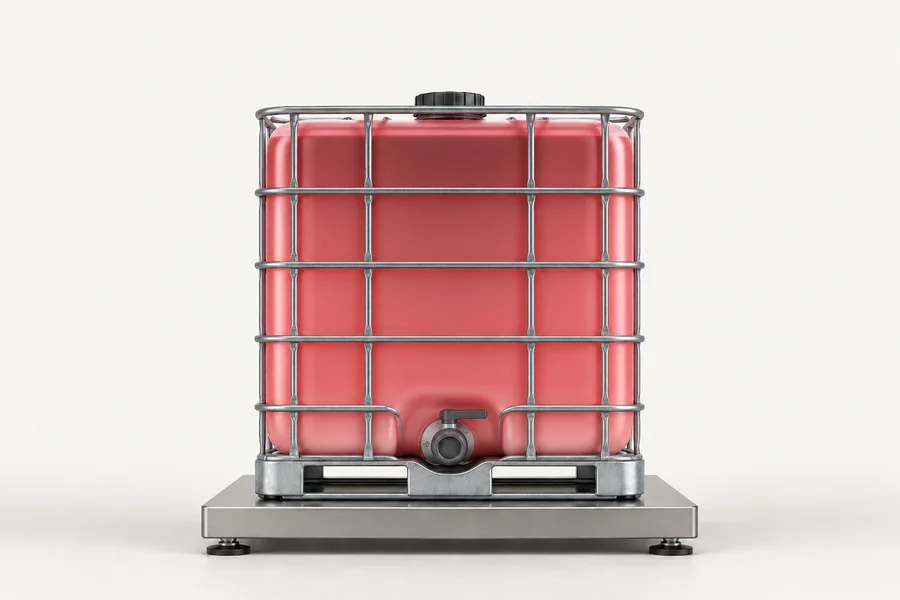

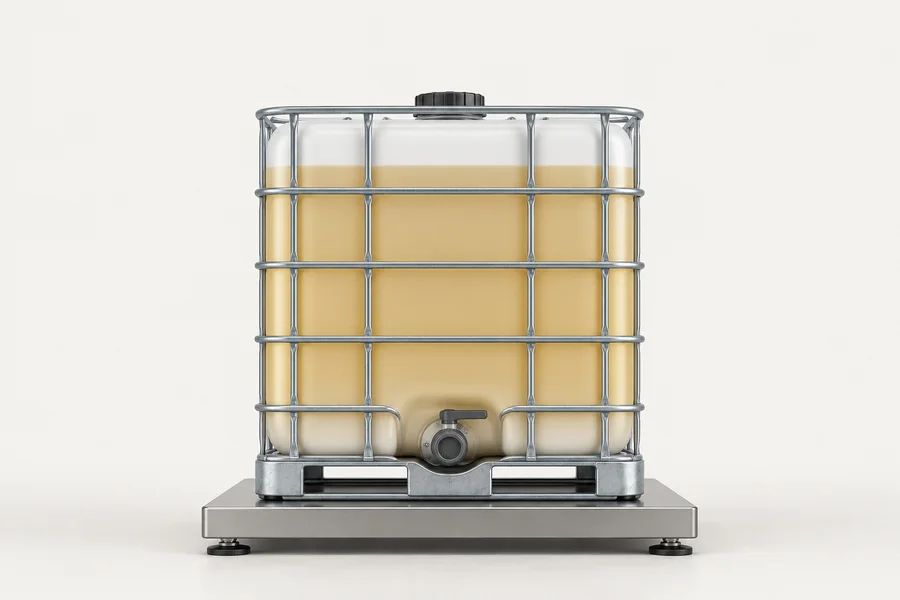

1000 L × 1 kg/L + 55 kg empty = 1055 kg, 982 kg under the 2037 kg maximum permissible gross mass.
Filled in: Schütz’s MX 1000 UN FDA, marked …/4056/2037/1060L/55KG. Its brimful capacity is 1,060 l; leave room, since RID caps the fill at 98% at 50 °C.

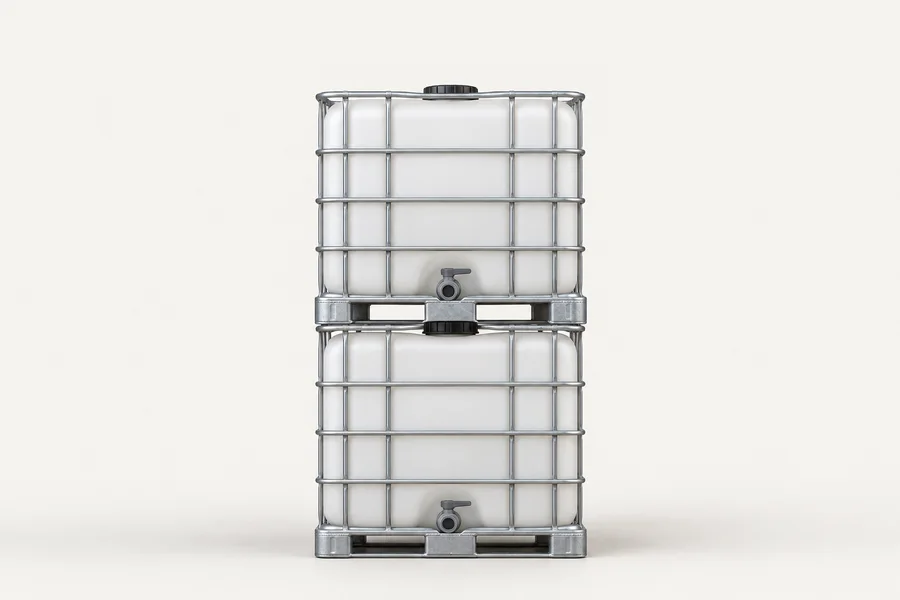

2 high puts 1 full totes, 1055 kg, on the bottom one. Its 4056 kg stacking test load ÷ 1.8 allows 2253 kg on top: 1198 kg to spare.
Schütz’s MX data sheet: two-high in transport up to density 1.5, one-high above; up to 4-high standing still.

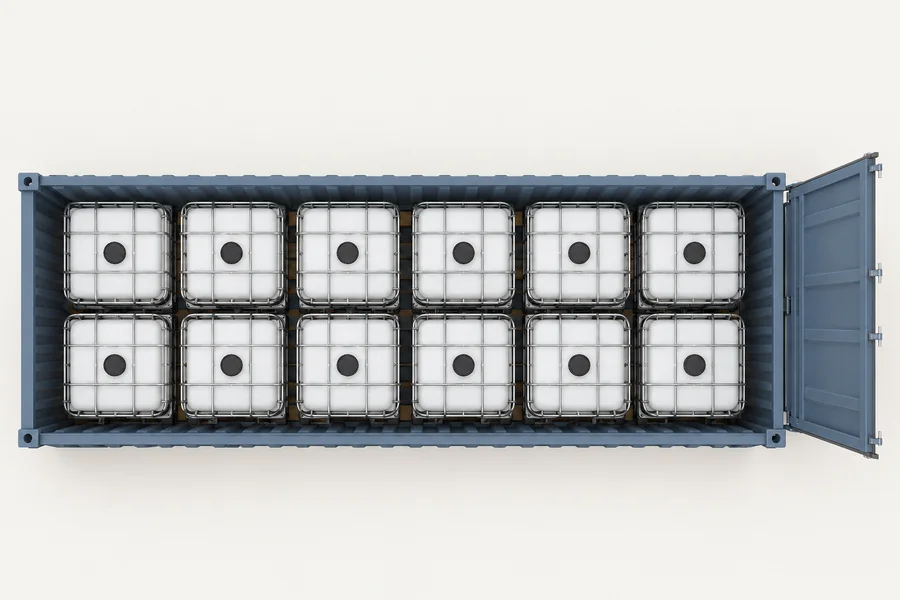

One layer takes 9 totes of 1200 × 1000 mm; 2 high that is 18, enough for your 18, and 18990 kg is within the 28380 kg payload.
Mauser puts 18 totes in a 20 ft container, or 20 on its wooden ISO container pallet; Triton’s 20 ft is 2,393 mm high inside.
Exporting liquid in 1,000 L totes? Photograph a filled tote, mark the cage size, valve and fill opening in SizeMarker and send it with the packing list.
Mark a photo| Tote | L × W × H | Empty weight; density |
|---|---|---|
| Schütz ECOBULK MX 1000, 1,000 litres (275 gal)Steel, plastic or full-plastic pallet | 1200 × 1000 × 1160 mm | 56 kg steel pallet, 59 kg plastic; up to 1.9 |
| Schütz ECOBULK LX 1000Wooden pallet | 1200 × 1000 × 1160 mm | 60 kg wooden pallet; up to 1.6 |
| Schütz ECOBULK SX-D 1000FM 6020 approved | 1200 × 1000 × 1160 mm | 75 kg steel pallet; up to 1.9 |
| Werit TOPline 1000Wood, plastic or combi pallet | 1200 × 1000 × 1135–1164 mm | 57–63 kg; up to 1.9 |
| Time Technoplast GNXThree pallet versions | 1200 × 1000 × 1155–1175 mm | 1000 Ltr |
| Jiangsu Jieyuan 1000 L standardSteel-frame pallet, 4-way entry | 1200 × 1000 × 1145 mm | 55 ± 1 kg; 1060 L brimful |
| Schütz USA MX 1000, plastic skidTest report, April 2026; 46 in nestled | 47.5 × 39.5 × 46.25 in | 58.45 kg |
| Mauser PPCP275UNSTDSold by BARR Plastics; 1041 L | 48 × 40 × 46 in | 144 lbs |
| Uline H-3886Retail listing; 31HA1/Y | 48 x 40 x 46 in | 128 lbs, steel pallet |
Sources: Schütz (MX) · Schütz (LX) · Schütz (SX-D) · Werit · Time Technoplast · Jiangsu Jieyuan · Schütz USA (TH-10775) · BARR Plastics (275) · Uline (IBC tanks)
The last two numbers of the mark are the stacking test load and the maximum permissible gross mass, in kg (RID 6.5.2.1.1).
| Tote and mark | Stacking test load; max gross mass |
|---|---|
| Schütz MX 1000 UN FDA, art. 404229631HA1/Y/…/4056/2037/1060L/55KG/100KPA; brimful 1,060 l | 4,056 kg; 2,037 kg |
| Schütz MX 1000 Ex EVOH, art. 4034296…/4056/1724/1060L/56KG/100KPA | 4,056 kg; 1,724 kg |
| Schütz USA MX 275 UN…/3855/2041/1040l/56kg/100kPa; net fill at 98%: 1040 Kg | 3,855 kg; 2,041 kg |
| Schütz USA MX 1000, plastic skid31HA1/Y/04 26*/USA/M4128/3220/1765 | 3,220 kg; 1,765 kg |
| Jiangsu Jieyuan 1000 LMaker’s figures, not a mark | Static stacking load 4038 kg; maximum load 2027 kg per tote |
Sources: Schütz (art. 4042296) · Schütz (art. 4034296) · Schütz USA (TH-3886) · Schütz USA (TH-10775) · Jiangsu Jieyuan
| Rule | What it says |
|---|---|
| Fill limitRID 4.1.1.4; 49 CFR 173.35 | No more than 98% of water capacity at a mean bulk temperature of 50 °C |
| Maximum gross mass49 CFR 173.35 | Do not fill beyond the maximum gross mass marked on the tote |
| Stacking testRID 6.5.6.6.4 | 1.8 times the combined maximum gross mass of the totes that may be stacked on it |
| Stacking symbolRID 6.5.2.2.2 | The mass shown may not exceed the stacking test load ÷ 1.8 |
| Transport stacking, MXSchütz | Two-high up to density 1.5, one-high above; static up to 4-high |
| DN 400 clamp-ring lidSchütz MX | Only for the MX 1000 |
| Inspection and testsRID 6.5.4.4; 49 CFR 180.352 | Leakproofness test and outside check every 2.5 years; internal inspection every 5 years |
| Plastic bottle lifeRID 4.1.1.15 | Five years from the bottle’s date of manufacture for dangerous goods |
| Most common sizeGreif | The 275-gallon IBC tote (1,040 liters) |
| In a 20 ft containerMauser | 18 totes; 20 on Mauser’s wooden ISO container pallet |
| Two high, 1160 mm eachOur calculation | 2,320 mm, inside Triton’s 2,393 mm |
| 20 ft insideTriton | 5,898 × 2,352 × 2,393 mm; 28,380 kg payload |
Sources: RID 2025 · 49 CFR 173.35 · Schütz (MX) · Schütz (MX page) · 49 CFR 180.352 · Greif · Mauser (IBC brochure) · Triton (20ft)
1200 × 1000 × 1160 mm for Schütz’s ECOBULK MX 1000, or 48 × 40 × 46 in as US sellers list it. Other makers’ heights run 1135–1175 mm: Werit 1135–1164 mm, Jieyuan 1145 mm, Time Technoplast 1155–1175 mm.
Yes. Schütz sells it as 1,000 litres (275 gal) nominal, with a brimful capacity of 1,060 l; Greif quotes the 275-gallon tote as 1,040 liters.
Empty, 56 kg on a steel pallet or 59 kg on plastic (Schütz MX 1000), 57–63 kg for Werit and 75 kg for Schütz’s SX-D. Full, the ceiling is the maximum gross mass on its mark, for example 2037 kg.
Schütz allows its MX two-high in transport up to density 1.5 and one-high above, and up to 4-high in storage. Under RID the mass on the stacking symbol may not exceed the stacking test load ÷ 1.8.
A leakproofness test and an outside check every 2.5 years, and an internal inspection every 5 years (RID 6.5.4.4, 49 CFR 180.352). For dangerous goods the plastic bottle may be used for five years from its date of manufacture (RID 4.1.1.15).
18, says Mauser, or 20 on its wooden ISO container pallet. Two high they stand 2,320 mm at 1160 mm each, inside the 2,393 mm of Triton’s 20 ft.
