Dimensions / Furniture / TV sizes / 55 inch

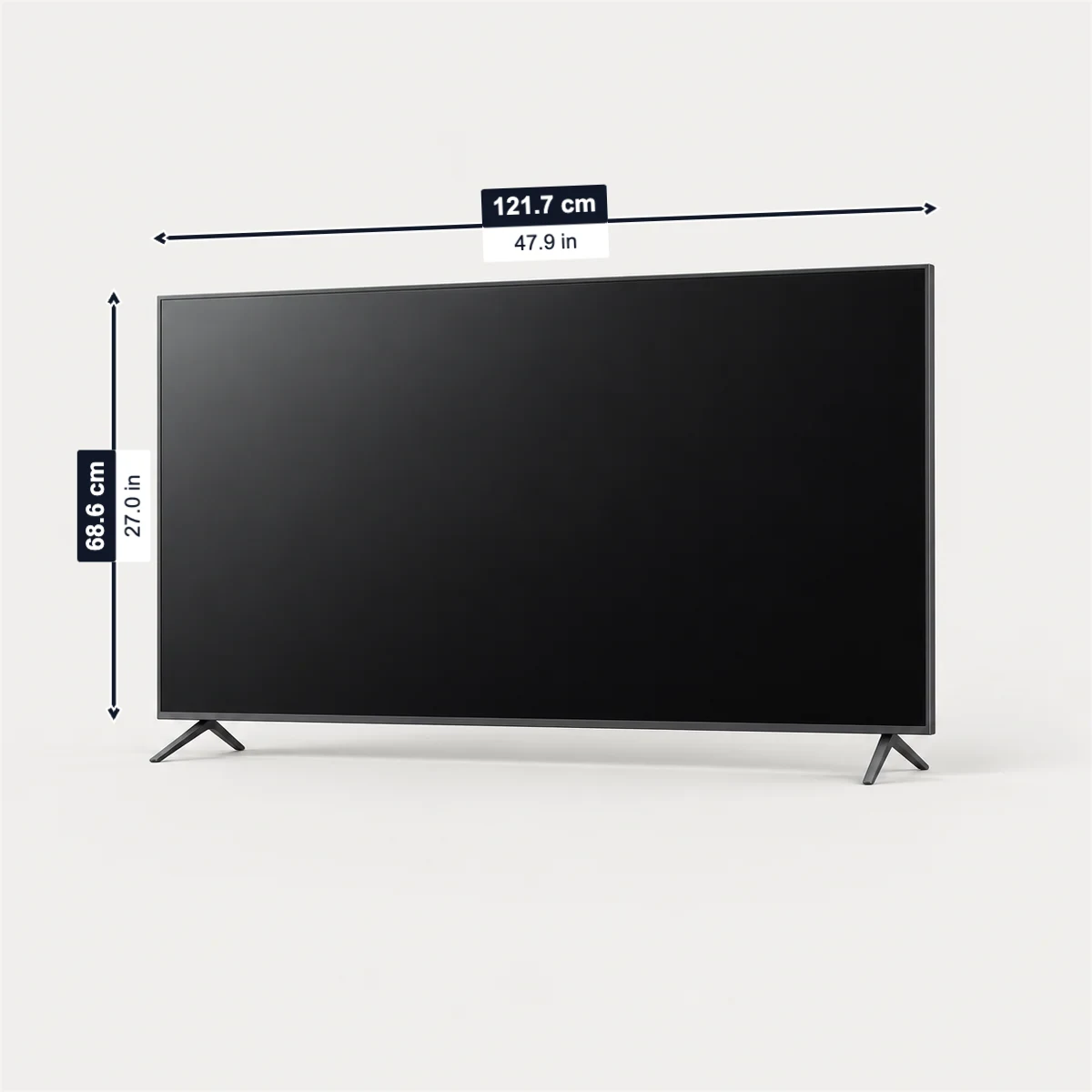

A 55-inch TV has a 16:9 screen about 121.7 × 68.6 cm (47.9 × 27 in) (RTINGS); the set itself is a little bigger: Samsung’s 2026 QN80H is 122.4 × 70.8 × 5.2 cm without its stand, LG’s OLED C6 122.2 × 70.3 cm. Check the stand footprint as well as the width: the QN80H’s feet stand 103.46 cm apart, LG’s C6 sits on a 47 cm centre stand. For the screen to fill 30–40° of your view, sit 1.67–2.27 m away (RTINGS).
| Screen, W × H | TV width, Samsung QN80H | Seat for 30–40° of view |
|---|---|---|
| 121.7 × 68.6cm47.9 × 27 in | 122.4cm | 167–227cm |
Sources: RTINGS, Samsung (QE55QN80H). Checked October 2026.
Enter the TV from its spec sheet, then your furniture top, how far you sit and your wall mount’s limits. Each check uses the numbers in the tables on this page.
All in centimetres. 1 in = 2.54 cm.
Your 160 × 40 cm top is 37.6 cm wider than the 122.4 cm TV and deep enough for its 21.8 cm stand.
Samsung: the TV must not overhang the edge of the furniture. Use the stand depth from the TV’s spec sheet. On a narrow top, Samsung’s QN80H feet can move in to 25 cm apart.
At 200 cm the 121.8 cm wide screen fills 33.9° of your view, within 30–58° (between 110 and 227 cm away).
A 55 in screen fills 30° from 2.27 m and 40° from 1.67 m (RTINGS); Samsung’s own figure is 1.7 m.
The TV’s 300 × 200 mm VESA pattern is within the mount’s 400 × 400 mm, and its 13.2 kg is within the 35 kg rating.
Use the set’s weight without its feet: 13.2 kg for the QN80H.
Choosing a 55-inch TV for a client’s room? Photograph the wall and the furniture, mark the widths in SizeMarker and check the TV before you order.
Mark a photo| TV | Without stand, W × H × D | Stand, W × D |
|---|---|---|
| Samsung QN80H, 2026Round feet; can also go 25 cm apart, near the centre | 122.4 × 70.8 × 5.2 cm | 103.46 × 21.8 cm |
| LG OLED evo C6, 2026Stand 47 cm wide | 122.2 × 70.3 × 4.51 cm | 47 × 23 cm |
| LG QNED80, 2026 | 123.6 × 71.8 × 6.79 cm | 108.6 × 23 cm |
| Sony BRAVIA 7 II, K-55XR70M2Centre pedestal 34.3 cm wide; 20.9 cm deep with the stand | 122.8 × 70.4 × 5.7 cm | 34.3 × 20.9 cm |
| TCL QM7LPedestal 31.4 cm wide; 27 cm deep with the stand; height adjustable | 122.6 × 71.1 × 5.59 cm | 31.4 × 27 cm |
| Hisense U78QG | 122.6 × 71.3 × 7.6 cm | 39.9 × 28.7 cm |
| Panasonic TV-55W70BPPedestal | 122.6 × 71 × 8.2 cm | 105.8 × 24.8 cm |
Sources: Samsung (QE55QN80H) · LG (OLED55C6PSA) · LG (55QNED80BSA) · Sony (K-55XR70M2) · TCL (QM7L) · Hisense (55U78QG) · Panasonic (TV-55W70BP)
| TV | Weight without stand, VESA | Box, W × H × D |
|---|---|---|
| Samsung QN80HM8 screws | 13.2 kg; 300 × 200 mm | 135.2 × 80.8 × 12.7 cm, 18.1 kg |
| LG OLED evo C6 | 14.1 kg; 300 × 200 mm | 136 × 81 × 18.7 cm, 21.2 kg |
| Sony K-55XR70M2M6 screws | 18.4 kg; 300 × 300 mm | 135 × 83.1 × 20.8 cm, 28 kg |
| TCL QM7LM6 screws | 13.3 kg; 300 × 300 mm | 140 × 87.5 × 15.5 cm, 20.5 kg |
| Panasonic TV-55W70BPM6 screws | 9.6 kg; 300 × 300 mm | 135 × 83 × 13.5 cm, 14.5 kg |
| Philips 55PUS9000M6 screws; taller than wide | 15.12 kg; 200 × 300 mm | 136 × 89 × 16 cm, 21.72 kg |
| Xiaomi TV S Pro Mini LED 55, 2026 | 12.9 kg; 300 × 300 mm | 140 × 83 × 13.4 cm, 16.5 kg |
Sources: Samsung (QE55QN80H) · LG (OLED55C6PSA) · Sony (K-55XR70M2) · TCL (QM7L) · Panasonic (TV-55W70BP) · Philips (55PUS9000) · Xiaomi (S Pro 55)
| Guide | Size |
|---|---|
| Measured diagonal, Samsung QN80HSamsung install guide | 138 cm54.6 in |
| Screen, W × HRTINGS, without the bezel | 121.7 × 68.6 cm47.9 × 27 in |
| Seat for 30° / 40° of viewRTINGS | 2.27 / 1.67 m (227 / 167 cm) |
| Samsung, general / 4KSize guide | 1.7 / 1.4 m5.5 / 4.6 ft |
| TCL | 7–11.5 ft |
| LG UKAbout 123 × 71 cm | A good starting point for a living room |
| Closest seat for a 4K setITU-R BT.1845-1: 58° for 3840 × 2160, 16:9 | 1.6 × the picture height |
| FurnitureSamsung; IKEA: wider than the TV | The TV must not overhang the edge |
Sources: Samsung (install guide) · RTINGS · Samsung (size guide) · TCL (55-inch) · LG UK · ITU-R BT.1845-1 · Samsung (user guide) · IKEA Singapore
The screen is about 121.7 × 68.6 cm (47.9 × 27 in) (RTINGS); with the frame most are 122.2–123.6 cm wide and 70.3–71.8 cm tall: Samsung’s QN80H is 122.4 × 70.8 × 5.2 cm without its stand.
Not quite: 55 in is the class. Samsung gives its QN80H a measured diagonal of 54.6 in (138 cm).
One wider than the TV, so it does not overhang the edge (Samsung, IKEA), and deep enough for the stand: 21.8 cm for Samsung’s QN80H, 28.7 cm for Hisense’s U78QG. The QN80H’s feet go 103.46 cm apart, or 25 cm apart near the centre for a narrower top.
About 1.67–2.27 m for the screen to fill 30–40° of your view (RTINGS); Samsung says 1.7 m, or 1.4 m for 4K, and TCL 7–11.5 ft.
It varies by model: 300 × 200 mm on Samsung’s QN80H and LG’s C6, 300 × 300 mm on Sony, TCL, Panasonic and Xiaomi, and 200 × 300 mm on Philips’ PUS9000.
From 9.6 kg (Panasonic W70) to 18.4 kg (Sony BRAVIA 7 II) without the stand; boxed, Samsung’s QN80H is 18.1 kg in a 135.2 × 80.8 × 12.7 cm carton.
LG UK calls it a good starting point for a living room. Measure the seat: at 2.27 m the screen fills 30° of your view, at 1.67 m 40°.
Buyers of 55-inch sets ask the size with and without the stand, where the feet go, the VESA pattern, the weight and the carton size for container loading. Mark the real sizes on your own product photo in SizeMarker, as in the picture at the top, and send one product card for WhatsApp or WeChat.
