Dimensions / Furniture / TV sizes / 75 inch

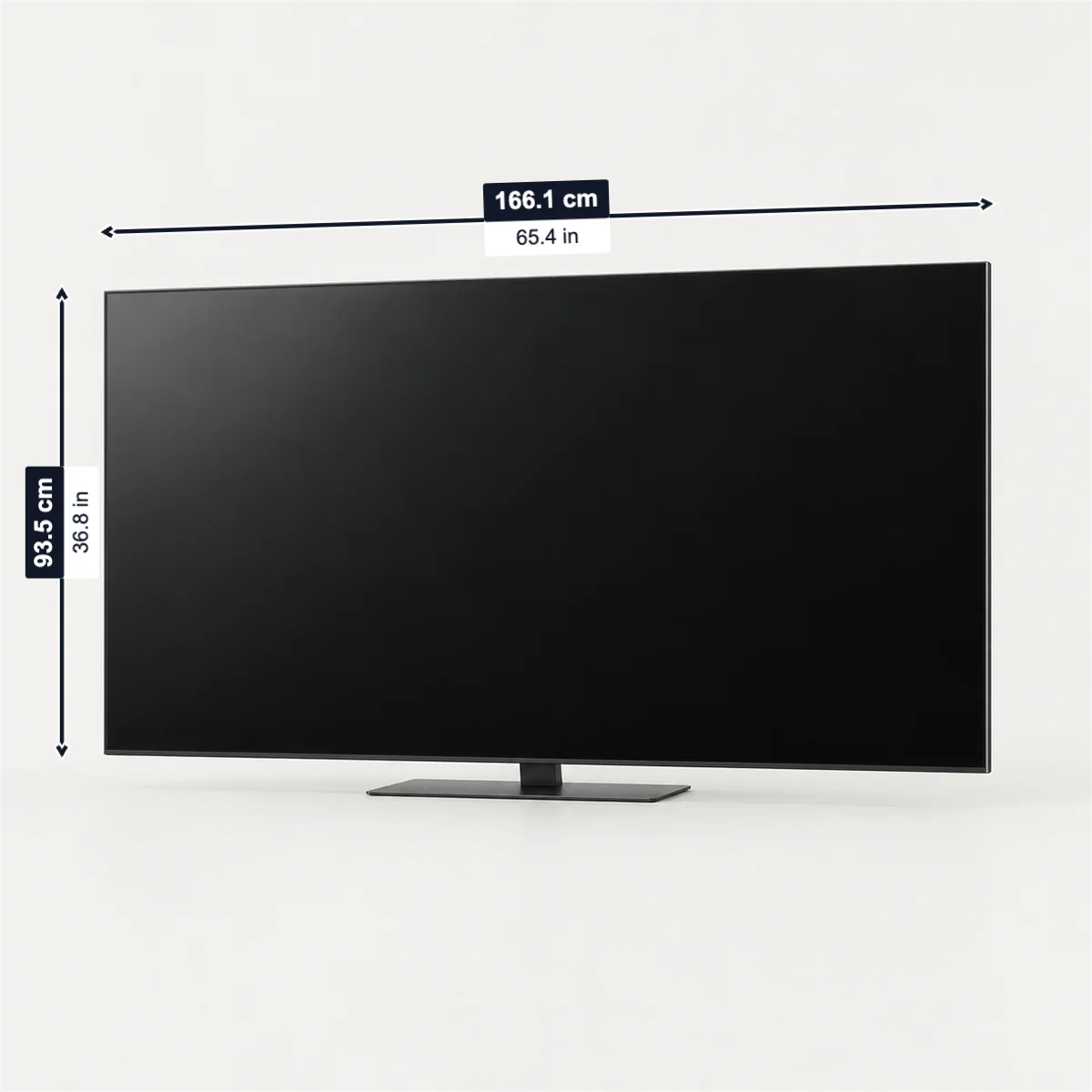

A 75-inch TV has a 16:9 screen about 166.1 × 93.5 cm (65.4 × 36.8 in) (RTINGS); Samsung’s 2026 QN80H is 166.66 × 95.78 × 5.23 cm without its stand and weighs 23 kg, Sony’s BRAVIA 7 II 36.6 kg. At this size the stand gets deep, 31.98–38.6 cm with the stand fitted, and TCL recommends professional wall mounting with the centre of the screen about 42–50 in (106.7–127 cm) from the floor. For 30–40° of view, sit 2.28–3.10 m away (RTINGS).
| Screen, W × H | TV width, Samsung QN80H | Seat for 30–40° of view |
|---|---|---|
| 166.1 × 93.5cm65.4 × 36.8 in | 166.66cm | 228–310cm |
Sources: RTINGS, Samsung (QE75QN80H). Checked October 2026.
Enter the TV from its spec sheet, then the furniture top, how far you sit and the wall mount’s pattern and rating. Each check uses the numbers in the tables on this page.
All in centimetres. 1 in = 2.54 cm.
Your 200 × 45 cm top is 33.3 cm wider than the 166.7 cm TV and deep enough for its 32 cm stand.
Deep stands are the risk at 75 in; Xiaomi’s base can also be set 143.1 or 50.4 cm wide.
At 270 cm the 166 cm wide screen fills 34.2° of your view, within 30–58° (between 150 and 310 cm away).
From 3.10 m a 75 in screen fills 30° of view, from 2.28 m 40° (RTINGS).
The TV’s 400 × 300 mm VESA pattern is within the mount’s 600 × 400 mm, and its 23 kg is within the 45 kg rating.
TCL recommends professional installation, anchored to the studs, for a 75 in set.
Specifying a 75-inch screen for a client’s room, lobby or showroom? Photograph the wall, mark its width and the seating in SizeMarker and check the TV and mount before you order.
Mark a photo| TV | Without stand, W × H × D | Stand, W × D |
|---|---|---|
| Samsung QN80H, 2026Round feet; 34.06 cm apart at the closest | 166.66 × 95.78 × 5.23 cm | 140.32 × 31.98 cm |
| LG QNED80, 2026LG’s OLED C6 skips 75 and goes to 77 in | 166.7 × 96.2 × 6.68 cm | 145.6 × 36.1 cm |
| Sony BRAVIA 7 II, K-75XR70M2Centre pedestal 34.3 cm wide; 38.6 cm deep with the stand | 167.1 × 95.3 × 5.8 cm | 34.3 × 38.6 cm |
| TCL QM7LPedestal 38.6 cm wide; 36.7 cm deep with the stand | 166.6 × 96 × 5.67 cm | 38.6 × 36.7 cm |
| Hisense U78QG | 166.9 × 96.3 × 7.6 cm | 42.9 × 37.3 cm |
| Panasonic TV-75W70BPPedestal; sizes from the owner’s manual | 166.81 × 95.96 × 8.83 cm | 146.4 × 35.3 cm |
| Philips 75PUS9000 | 167 × 97.2 × 8.5 cm | — |
| Xiaomi TV S Pro Mini LED 75, 2026Base 143.1 or 50.4 cm wide | 166.7 × 95.8 × 7.3 cm | 143.1 × 35.1 cm |
Sources: Samsung (QE75QN80H) · LG (75QNED80BSA) · Sony (K-75XR70M2) · TCL (QM7L) · Hisense (75U78QG) · Panasonic (owner’s manual) · Philips (75PUS9000) · Xiaomi (S Pro 75)
| TV | Weight without stand, VESA | Box, W × H × D |
|---|---|---|
| Samsung QN80HM8 screws | 23 kg; 400 × 300 mm | 183 × 107.5 × 16.4 cm, 31.8 kg |
| LG QNED80 | 21.2 kg; 300 × 200 mm | 182 × 108.5 × 16.2 cm, 29.2 kg |
| Sony K-75XR70M2M6 screws | 36.6 kg; 300 × 300 mm | 179 × 116.1 × 19.6 cm, 53 kg |
| TCL QM7L | 24.6 kg; 300 × 300 mm | 185 × 112.5 × 17.8 cm |
| Panasonic TV-75W70BPM6 screws | 22 kg; 400 × 300 mm | 184 × 110.3 × 19 cm, 32.5 kg |
| Philips 75PUS9000M8 screws | 29.48 kg; 300 × 300 mm | 187.9 × 111.3 × 19 cm, 38.46 kg |
| Xiaomi TV S Pro Mini LED 75 | 25.6 kg; 400 × 300 mm | 188 × 112.5 × 17.4 cm, 34.5 kg |
Sources: Samsung (QE75QN80H) · LG (75QNED80BSA) · Sony (K-75XR70M2) · TCL (QM7L) · Panasonic (TV-75W70BP) · Philips (75PUS9000) · Xiaomi (S Pro 75)
| Guide | Size |
|---|---|
| Measured diagonal, Samsung QN80HSamsung install guide | 189 cm74.5 in |
| Panel without the frameRTINGS, 16:9 screen | 166.1 × 93.5 cm65.4 × 36.8 in |
| How far to sit for 30° / 40°RTINGS | 3.10 / 2.28 m (310 / 228 cm) |
| Samsung for 75 in, general / 4KSize guide | 2.3 / 1.9 m7.5 / 6.3 ft |
| Centre of the screen from the floorTCL, at eye level | 106.7–127 cm42–50 in |
| Lower edge from the floorTCL | 59.9–80.3 cm23.6–31.6 in |
| Wall mountingTCL: anchor it to the wall studs | Professional installation recommended |
| Two people to lift and carryPhilips | Over 25 kg (55 lb) |
Sources: Samsung (install guide) · RTINGS · Samsung (size guide) · TCL (75-inch) · Philips (user manual)
The screen is about 166.1 × 93.5 cm (65.4 × 36.8 in) (RTINGS); in the frame most are about 167 cm wide: Samsung’s QN80H is 166.66 × 95.78 × 5.23 cm and Philips’ 75PUS9000 167 × 97.2 × 8.5 cm without the stand.
From 21.2 kg (LG QNED80) to 36.6 kg (Sony BRAVIA 7 II) without the stand, and over 30 kg boxed: Samsung’s QN80H carton is 31.8 kg. Philips asks two people for anything over 25 kg (55 lb).
TCL puts the centre of the screen at eye level, about 42–50 in (106.7–127 cm) from the floor, which leaves the lower edge 23.6–31.6 in (59.9–80.3 cm) up.
Yes, says TCL, with a compatible bracket anchored to the wall studs, and it recommends professional installation. Match the mount to the VESA pattern: 400 × 300 mm on Samsung’s QN80H, 300 × 300 mm on Sony and Philips.
About 2.28–3.10 m for 30–40° of view (RTINGS); Samsung says 2.3 m, or 1.9 m for 4K.

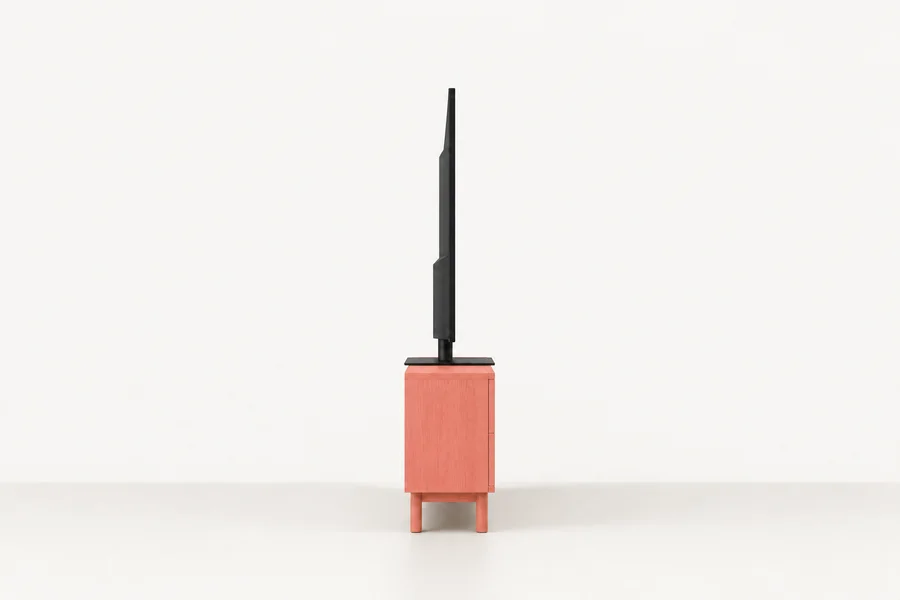

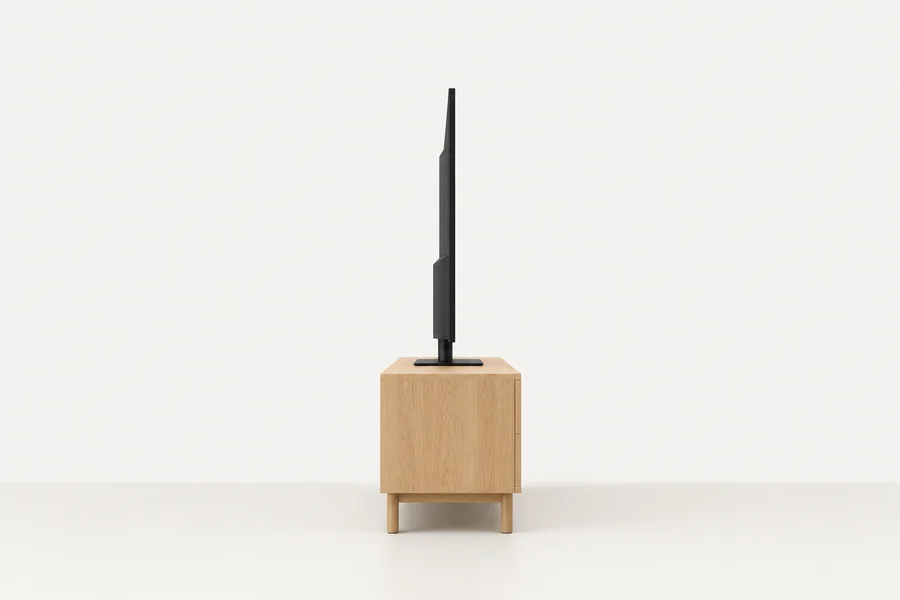

A top wider than the TV and deep enough for the stand, which is 31.98–38.6 cm deep here. Xiaomi’s 75-inch base can be set 143.1 or 50.4 cm wide, so one set fits a wide or a narrow top.
At 75 inches buyers plan the wall and the delivery: they ask the weight, the VESA pattern and screws, the stand depth and the carton size and weight. Mark the real sizes on your own product photo in SizeMarker, as in the picture at the top, and send one product card for WhatsApp or WeChat.
