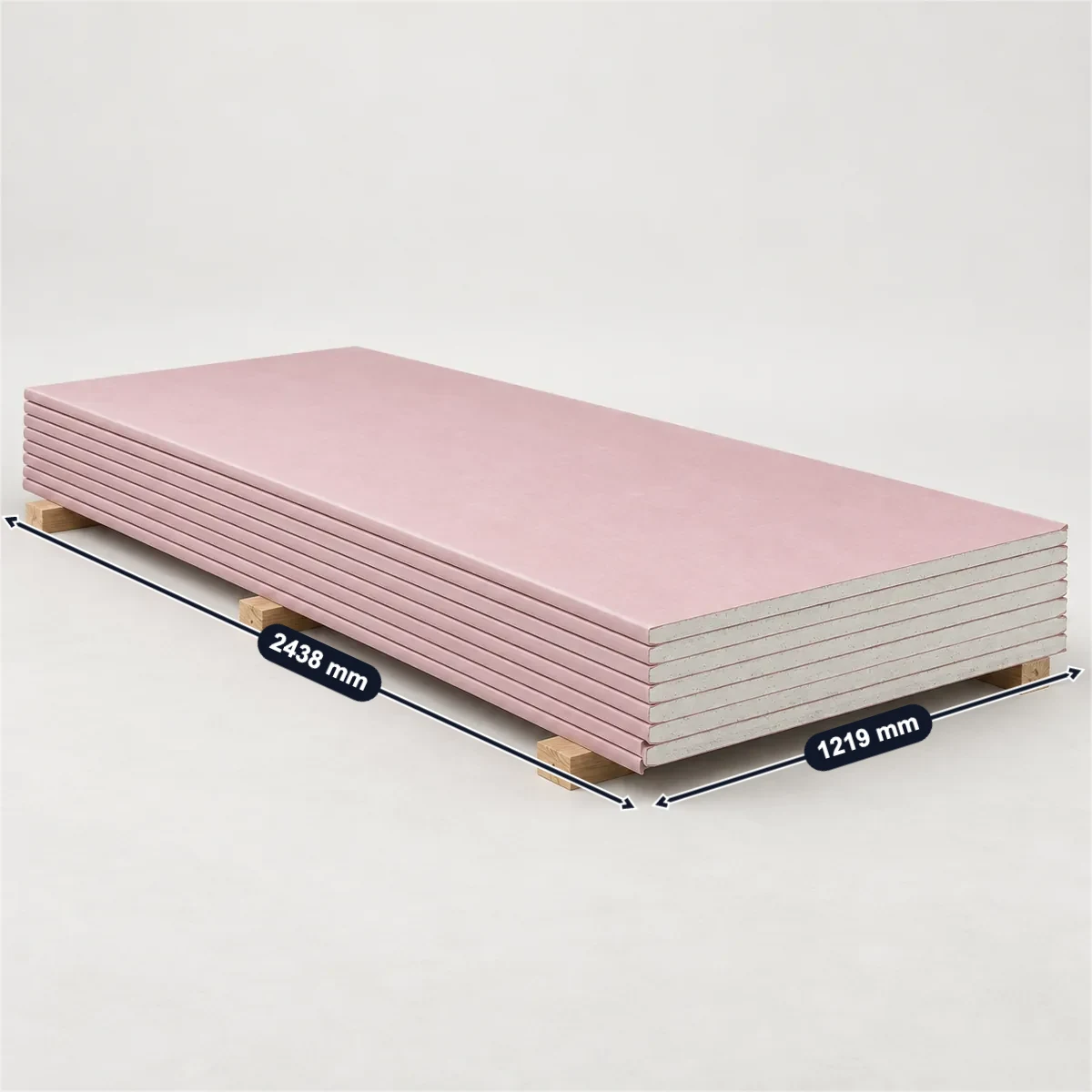

Fire-rated drywall is Type X: a glass-fibre reinforced core, most often 5/8 in (15.9 mm) thick, 48 or 54 in wide and 8 to 16 ft long (USG Firecode X). Standard 5/8 in Type X weighs 2.2 lb/ft² at USG, CertainTeed, Georgia-Pacific, Gold Bond and PABCO, so a 4 × 12 ft sheet is about 105.6 lb. The board alone has no rating: one layer on each side of 2 × 4 wood studs up to 24 in apart is a one-hour wall in IBC Table 721.1(2), and the added-up method gives 40 + 20 = 60 minutes on studs 16 in apart. In Europe the core is EN 520 Type F: Siniat’s 15 mm Fire Board weighs 12.3 kg/m², and one layer on each side of a metal stud partition is EI60.
| Type X, the usual thickness | 5/8 in Type X (USG, CertainTeed) | One-hour wood stud wall (IBC) |
|---|---|---|
| 5/8in15.9 mm | 2.2lb/ft²10.7 kg/m² | 24in610 mm |
Sources: USG, IBC. Checked October 2026.
USG’s 5/8 in Firecode X on a wood stud wall is filled in. Enter your wall and sheets, the boards on each side and a sheet you measured, or switch to European rules; each check follows a figure or rule on this page.

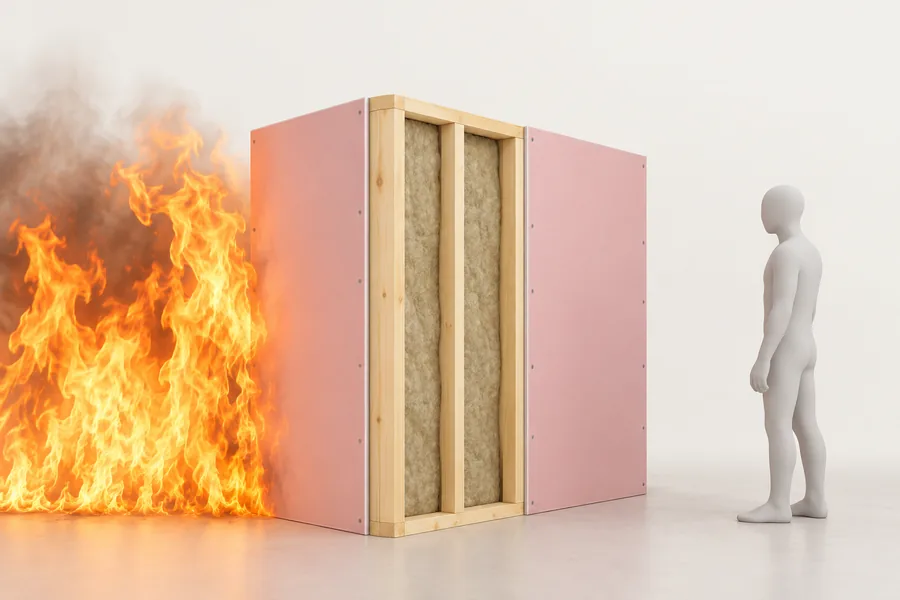

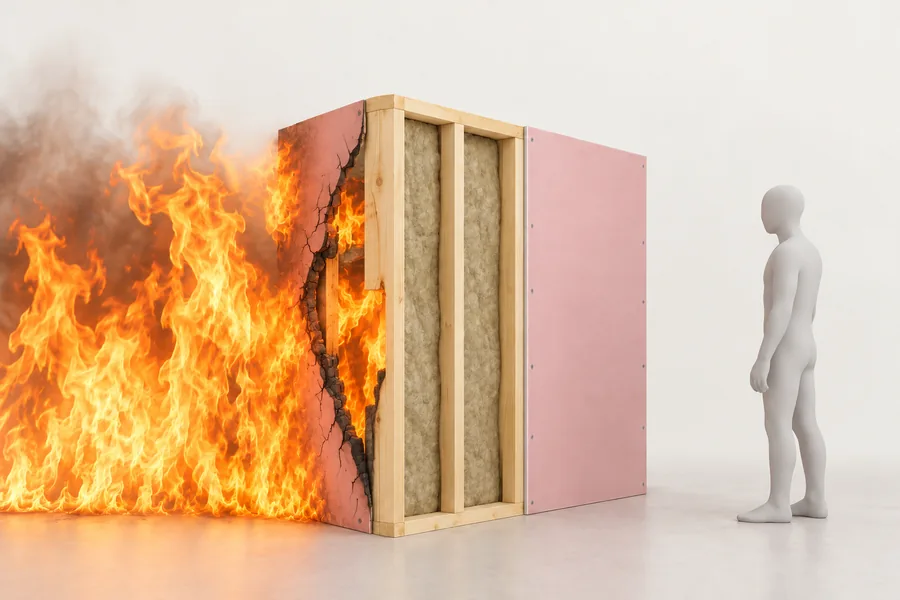

A rating belongs to the whole tested wall, with its framing, fasteners and taped joints, not to the board alone.
Hung sideways, 8 ft of height takes 2 rows of 48 in sheets, and each row 1 sheets 12 ft long across the 12 ft: 2 in all; you have 2. Each sheet is 48 ft² and weighs about 105.6 lb at 2.2 lb/ft², 211.2 lb for 2; the Gypsum Association asks for two or more people to carry one.
USG Firecode X at 2.2 lb/ft², hung sideways in two rows on a 12 ft wall.
5/8 in Type X on each side: 40 minutes for the board and 20 for wood studs 16 in apart make 60, one hour by IBC Table 722.6.2(1). IBC Table 721.1(2) item 14-1.3 rates the same wall one hour.
IBC: 40 minutes for 5/8 in Type X plus 20 for wood studs 16 in apart.
Measured 47-15/16 × 143-7/8 in against 48 × 144 in: inside the ±3/32 in on width and ±1/4 in on length that Georgia-Pacific prints.
Georgia-Pacific prints ±3/32 in and ±1/4 in for Fireguard X; the readings are an example.
