An octagonal Gaylord, or octabin, is a corrugated bulk bin with its four corners cut off into eight panels, which shortens each wall and stiffens it against bulging (US patent 8418912). In North America it fits a 48 × 40 in pallet: Uline’s S-12707 is 46 x 38 x 36" inside and 47 x 39 1/8 x 37 1/2" outside, rated 2,200 lbs. (998 kg) in 1,300 lb. test triple wall, for resins, powders and produce. European octabins are made for 1200x1000, 1200x800, 1140x1140 and 1100x1100 pallets and take up to 1000 kg gross (Tri-Wall). International Paper says its octagonal tote resists bulging better than rectangular totes and can be stacked three high. The trade-off: an octagon carries less and needs more storage space per ton (US patent 8418912).
| Uline octagon bin, inside | Uline 1,300 lb. test, rated | European octabin, gross, up to (Tri-Wall) |
|---|---|---|
| 46 x 38in1168 × 965 mm | 2,200lbs998 kg | 1000kg |
Sources: Uline, Uline México, Tri-Wall. Checked October 2026.
Uline’s S-12707 octagon bin, CHEP’s 48 × 40 in pallet and ONE’s 40 ft are filled in. Enter your goods; each check uses the numbers in the tables on this page.
Sizes in millimetres, weights in kilograms (1 in = 25.4 mm, 1 lb = 0.4536 kg). Measure the Gaylord’s body outside; each one sits on its own pallet, in straight columns. Stack only as high as the seller says.
900 kg of goods is 98 kg under the 998 kg the seller rates this Gaylord for.
Filled in: Uline’s S-12707 octagon bin, 46 x 38 x 36" inside, rated 2,200 lbs (998 kg); Uline recommends it for resins, powders and produce.
A 1194 × 994 mm Gaylord sits inside the 1219 × 1016 mm pallet, with 25 mm to spare on the length and 22 mm on the width.
Outside it is 47 x 39 1/8 x 37 1/2", within a 48 × 40 in pallet. European octabins are cut for 1200x1000, 1140x1140 and other pallets (Tri-Wall).
Taking 1219 × 1016 mm of floor each, they go 20 per layer, 1 high: 20, enough for your 20. They stand 1094 mm on their pallets, and 20 × 943 kg = 18860 kg is within the 26840 kg payload.
One high in ONE’s 40 ft is filled in. International Paper says its octagonal tote can be stacked three high; Smurfit Kappa doubles up half-tonne packs.
Exporting resin or powder in octabins? Photograph a filled bin on its pallet, mark its outside size and gross weight in SizeMarker and send it with the packing list.
Mark a photoRatings are each seller’s own; no maker publishes a rating by size.
| Bin | Size | Rating; weight |
|---|---|---|
| Uline S-127071,300 lb. test triple wall; 275 lb. test lid | 46 x 38 x 36"Inside; outside 47 x 39 1/8 x 37 1/2" | 2,200 lbs. (998 kg); 30 lbs. |
| Uline S-14247 | 46 x 38 x 24"Inside; outside 47 x 39 1/8 x 25 1/4" | 2,100 lbs.; 24 lbs. |
| Global Industrial octagon bin1300# TW/ECT-155; inside dimensions | 46 x 38 x 36 | Weight capacity 281 - 300 lbs |
| Box Partners 463836OCTECT-155 triple wall | 46" x 38" x 36"Interior | About 22.91 lbs per unit; 30 per skid |
| Renubox octabinDutch dealer; double wall; sold as a sleeve only | 1170 × 970 × 1800 mmInternal | 8.78 kg; octabins hold up to 1,000 kg |
| Weidmüller inbound specA buyer’s packaging rules, 2026 | 1165 x 970 x 1750 mm1200 x 1200 x 1950 mm on its pallet | Octabin 500 or 1000 kg |
Sources: Uline · Uline · Uline México · Uline · Global Industrial · Box Partners · Renubox (1170x970x1800) · Renubox · Weidmüller
| Point | What the source says |
|---|---|
| ShapeUS patent 8418912 | Octagonal bins reduce the lateral wall length and stiffen the wall, to reduce bulging |
| Trade-offUS patent 8418912 | Carries less weight of pellets and needs more storage space for each ton |
| PanelsUS patent 6783058 | Two end walls and two side walls joined by four diagonal corner panels |
| Typical panel widthsUS patent 6783058 | Side 28⅜, end 20⅜, corner 12¼ inches, on a 48×40 inch pallet |
| BulgingUS patent 6783058 | Creates pallet overhang and an interference fit in racks and trailers |
| BoardInternational Paper | Doublewall and triplewall; more resistance to bulging than rectangular totes |
| ResinUS patent 8418912 | Double wall bins may be loaded with up to 1800 pounds of resin pellets |
Sources: US 8418912 B1 · US 6783058 B2 · International Paper
| Rule or figure | What it says |
|---|---|
| PalletsTri-Wall | 1200x1000, 1200x800, 1140x1140 and 1100x1100; up to 1000 kg gross |
| Usual palletsDS Smith | 1140 x 1140 or 1200 x 1000 |
| StackingInternational Paper | The octagonal tote can be stacked three high |
| Doubled stackingSmurfit Kappa | Up to one tonne; half-tonne packs suitable for doubled stacking |
| PartsSmurfit Kappa | A base, sleeve and lid; discharge points on request |
| S-12707 in mmOur conversion | Inside 1168 × 965 × 914 mm; outside 1194 × 994 × 953 mm; 2,200 lbs = 998 kg; 30 lbs = 14 kg |
| 40 ft containerONE | Inside 12,032 × 2,350 × 2,390 mm; 26,840 kg payload |
| S-12707 on 48 × 40 in pallets thereOur calculation | 20 on the floor, one high |
Sources: Tri-Wall · DS Smith · International Paper · Smurfit Kappa · Uline · ONE
A corrugated bulk bin with two end walls and two side walls joined by four diagonal corner panels (US patent 6783058), also called an octabin or octagon bulk bin. It usually comes as a base, sleeve and lid (Smurfit Kappa).
Uline’s are 46 x 38" inside, 24 or 36" deep, and 47 x 39 1/8" outside to fit a 48 × 40 in pallet. European octabins are made for 1200x1000, 1200x800, 1140x1140 and 1100x1100 pallets; Renubox sells one 1170 × 970 × 1800 mm inside.
To bulge less: cutting the corners shortens each wall and stiffens it (US patent 8418912). Bulging creates pallet overhang and an interference fit in racks and trailers (US patent 6783058). The cost is less weight per bin and more storage space per ton.
Uline rates its 1,300 lb. test octagon bins at 2,100 to 2,200 lbs.; Tri-Wall and Smurfit Kappa make European octabins for up to 1000 kg. Global Industrial lists a far lower capacity for a similar bin, so ask your supplier.
International Paper says its octagonal tote can be stacked three high, and Smurfit Kappa says half-tonne packs suit doubled stacking. Check your own bin’s rating before stacking.

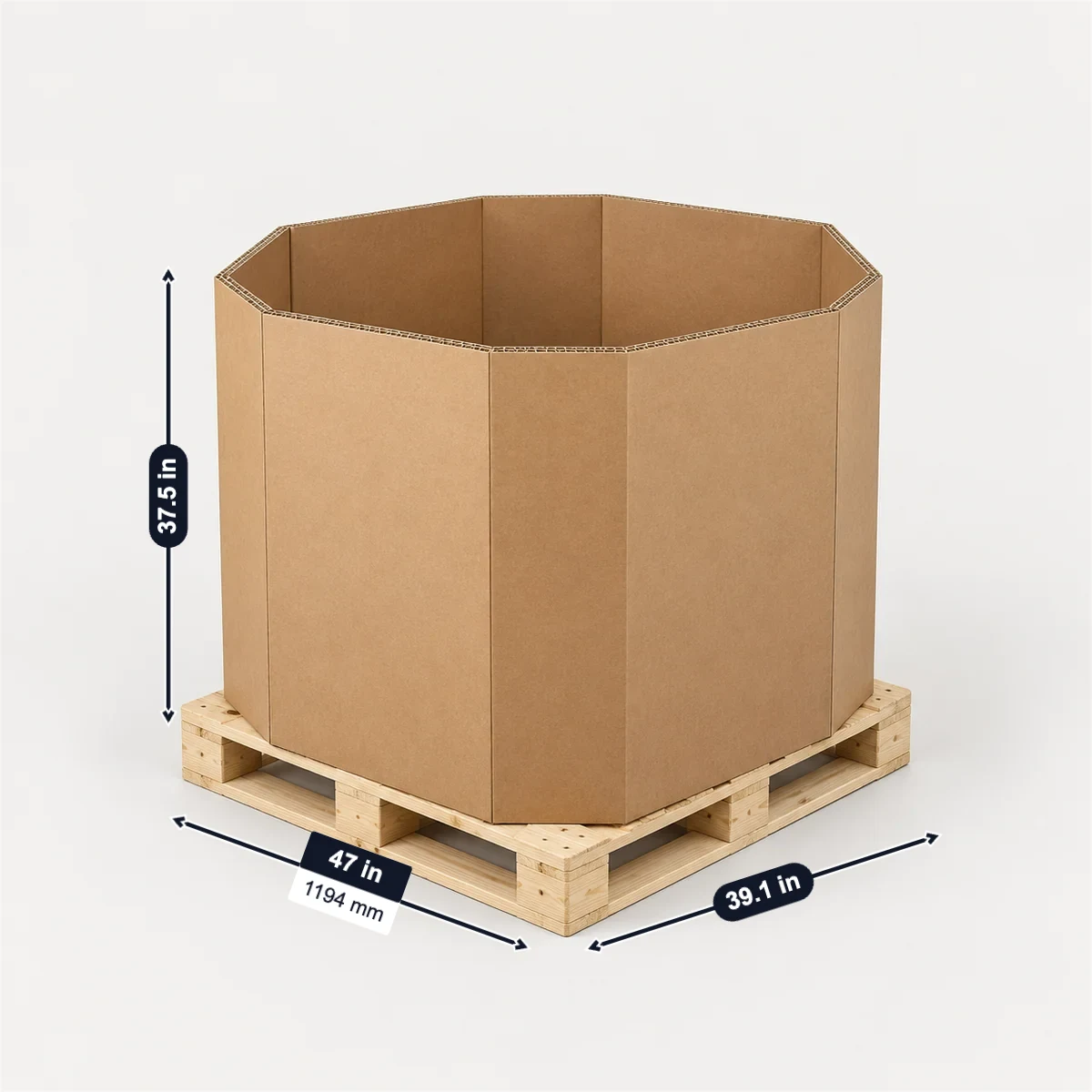

Buyers of resin pellets, powders and produce ask for the octabin’s pallet size, how many kilograms go in each, whether it has a discharge spout, and whether the bins can be stacked. Mark the real bin, pallet and weights on your own product photo in SizeMarker, as in the picture at the top, and send one product card for WhatsApp or WeChat.
