There is no standard RV garage door: makers sell tall sizes in residential and commercial lines. Clopay’s Classic Steel goes to 20 ft wide and 16 ft high, Hörmann North America’s Pro Safe 2100 to 20 × 16 ft, Raynor’s Aspen to 16 ft high in commercial sizes, and commercial lines to 24 ft and more. Size the door from the coach: Newmar prints 12 ft 10 in for its Bay Star gas Class A, and Tiffin 13 ft 4 in for the Allegro Bus, for which it asks a 14 ft garage. Tall doors use torsion springs only (extension springs stop at 8 ft), more sections (7 from 12 ft 4 in), high-lift tracks that need the lift plus 9-1/2 in of headroom, and wall-mount openers, which add no depth but stop at 14 ft high and 180 sq ft (Genie).
| Tallest residential (Clopay) | Bay Star 3114 height (Newmar) | High-lift headroom (Clopay) |
|---|---|---|
| 20 × 16ft | 154in12 ft 10 in | 9-1/2in |
Sources: Clopay, Newmar. Checked October 2026.
A 12 × 14 ft door on torsion springs with a wall-mount opener, a Newmar Bay Star 3114 and the room measured in the garage are filled in; change the door, the track, the RV or what you measured.
Clearances are the figures Clopay, Amarr and Overhead Door print for their own doors; other makers differ by an inch or so, so go by the installation sheet of the door you buy.

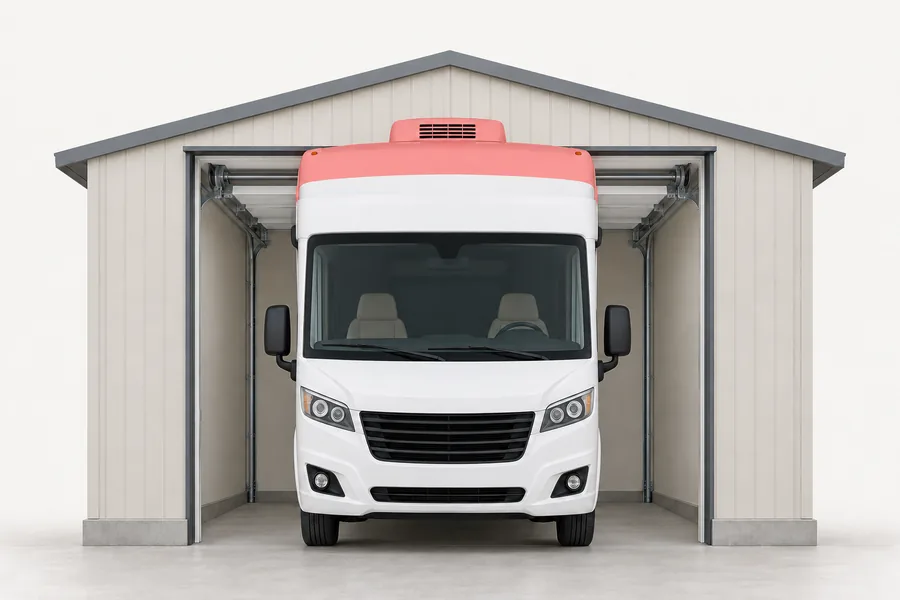

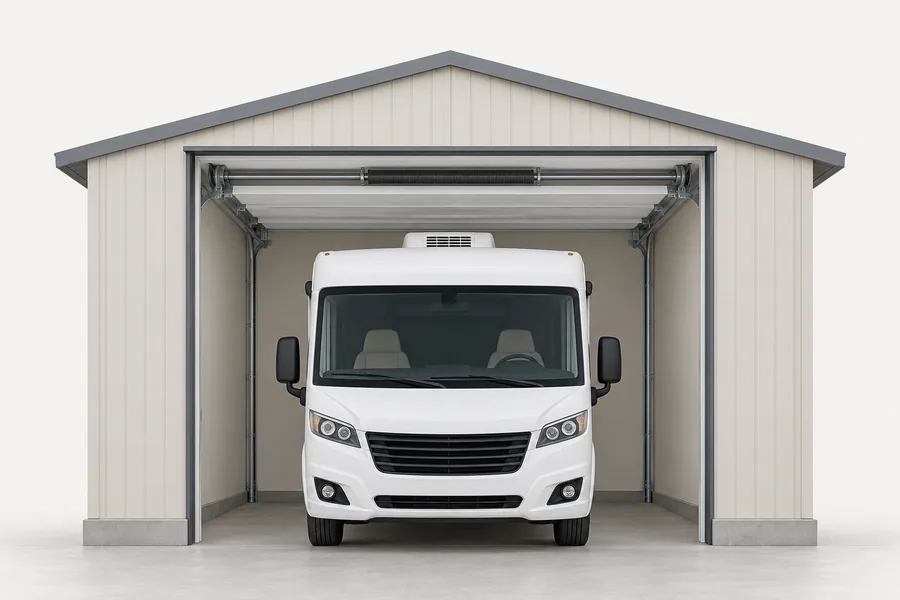

The Newmar Bay Star 3114 (Class A gas) is 12 ft 10 in high as its maker prints it, so a 14 ft door leaves 14 in (356 mm) above it; measure the roof units and antennas on your own coach.
Newmar prints 12 ft 10 in for the Bay Star 3114; Tiffin asks a 14 ft garage for its Allegro Bus.
Clopay asks for 14 in above the opening for torsion springs on a 15 in radius track; you have 16 in (406 mm).
A standard-lift torsion door on 15 in radius track takes 14 in; a high lift, the lift plus 9-1/2 in.
The tracks run back the door height plus 18 in (Clopay and Amarr): 168 + 18 = 186 in (4724 mm); you have 190 in (4826 mm). A wall-mount opener adds no depth (Overhead Door); Genie’s runs doors up to 14 ft high, 18 ft wide and 180 sq ft, and this 12 × 14 ft door is 168 sq ft.
Genie’s wall-mount opener: doors up to 14 ft high, 18 ft wide and 180 sq ft.
Making tall doors for export? Photograph the door with its track and springs, mark width, height, section count and the lift type in SizeMarker, and send the picture with your offer.
Mark a photoNo maker in this set sells a product called an RV door; tall openings take residential lines ordered tall, residential-look lines in commercial sizes, or commercial lines.
| Line | Widest | Tallest | Market |
|---|---|---|---|
| Clopay Classic Steel PremiumThis page | 20 ft | 16 ft | Residential |
| Hörmann Pro Safe 2100 | 20 ft | 16 ft | Residential |
| Hörmann Therma Tech 3400 | 18 ft | 14 ft | Residential |
| Raynor Aspen AP200 | 20 ft 2 in; 24 ft 2 in in commercial sizes | 10 ft; 16 ft in commercial sizes | Residential look |
| Raynor Encore EN200 | 20 ft, in 1 in steps | 10 ft, in 3 in steps | Residential |
| Haas wind-load doors | — | 16 ft | Residential and commercial |
| C.H.I. 3220 | 24 ft 2 in | 16 ft | Commercial |
| Hörmann 450U | 26 ft 2 in | 20 ft | Commercial |
| Overhead Door 416–430 | 32 ft 2 in | 24 ft 1 in (7341 mm) | Commercial |
| Dealer sizesOGD guide | 12 × 12, 14 × 14 and 16 × 14 ft | The last for the largest RVs | Not a maker standard |
| ChinaHörmann China | 6000 mm | 3034 mm residential; taller doors are industrial lines | Residential |
Sources: Clopay · Hörmann North America · Hörmann North America · Raynor · Raynor · Haas · C.H.I. · Hörmann North America · Overhead Door · OGD · Hörmann China
Only Airstream says its height includes the roof air conditioner. The door each clears is our calculation.
| RV | Class | Height | Door it clears |
|---|---|---|---|
| Airstream Classic 33FB | Travel trailer | 9 ft 7 in, with A/C | 10 ft door: 5 in to spare |
| Airstream Interstate 24GT | Class B | 9 ft 9 in, with A/C | 10 ft door: 3 in |
| Tiffin GT1 | Class B | 10 ft | 12 ft door: 24 in |
| Tiffin Wayfarer | Class C | 11 ft 4 in | 12 ft door: 8 in |
| Newmar Bay Star 3114 | Class A gas | 12 ft 10 in (154 in) | 12 ft door: 10 in too low; 14 ft door: 14 in |
| Keystone Montana | Fifth wheel | 13 ft 4 in | 14 ft door: 8 in |
| Tiffin Allegro Bus | Class A diesel | 13 ft 4 in; Tiffin asks a 14 ft garage | 14 ft door: 8 in |
| Road limitsFHWA; Florida | — | No federal limit; most states 13 ft 6 in to 14 ft; Florida 13 ft 6 in | — |
Sources: Airstream · Airstream · Tiffin · Tiffin · Newmar · Keystone · Tiffin · FHWA · Florida Legislature
| Item | Figure |
|---|---|
| SpringsHörmann North America | Torsion at any height; extension springs only up to 8 ft |
| SectionsOverhead Door commercial | 5 sections from 8 ft 4 in, 6 from 10 ft 4 in, 7 from 12 ft 4 in, 8 from 14 ft 4 in to 16 ft 1 in |
| TrackC.H.I. 3220 | Over 14 ft high: 12 gauge, 3 in track |
| Standard-lift headroomClopay; Garaga | Torsion on a 15 in radius track 14 in (Clopay); commercial doors 12 in up to 12 ft high, 13.5 in above (Garaga) |
| High liftClopay; Overhead Door | The lift plus at least 9-1/2 in above the door (Clopay); the lift plus 8-3/4 to 12-1/4 in (Overhead Door) |
| Vertical liftAmarr; Overhead Door Windstorm | Door height plus 13 in (Amarr); plus 20 in (Windstorm) |
| DepthOverhead Door Windstorm | Standard lift: opening height plus 18 in; high lift: opening height less the lift plus 30 in |
| Wall-mount openerOverhead Door; Genie | No additional backroom; Genie: up to 14 ft high, 18 ft wide, 180 sq ft and 850 lb, so a 16 × 14 ft door (224 sq ft, our calculation) is too big for it |
| Ceiling openersLinear | Linear’s LDCO operators run doors no more than 10 ft tall |
| WarrantyAmarr | High-lift and vertical-lift applications are not covered |
Sources: Hörmann North America · Overhead Door · C.H.I. · Clopay · Garaga · Clopay · Overhead Door · Amarr · Genie · Linear · Amarr
One taller than the coach as its maker prints it: a Tiffin Wayfarer (11 ft 4 in) clears a 12 ft door by 8 in, a Newmar Bay Star 3114 (12 ft 10 in) needs a 14 ft door, and Tiffin asks a 14 ft garage for its 13 ft 4 in Allegro Bus.
Clopay’s Classic Steel and Hörmann’s Pro Safe 2100 go to 16 ft and Hörmann’s Therma Tech 3400 to 14 ft; commercial lines go to 20 and 24 ft.
Only in dealer guides: OGD lists 12 × 12, 14 × 14 and 16 × 14 ft. Makers build to the opening; Raynor’s Encore comes in 1 in width and 3 in height steps.
One whose track runs up the wall before it turns back, so the open door sits above the opening. It needs the lift plus at least 9-1/2 in of headroom (Clopay) but less depth: the opening height less the lift plus 30 in (Overhead Door).
A wall-mount (jackshaft) opener, which needs no extra depth; Genie’s runs doors up to 14 ft high, 18 ft wide and 180 sq ft, so a 16 × 14 ft door at 224 sq ft is too big for it.
There is no federal height limit; most states allow 13 ft 6 in to 14 ft (FHWA), and Florida’s statute sets 13 ft 6 in for any vehicle.
