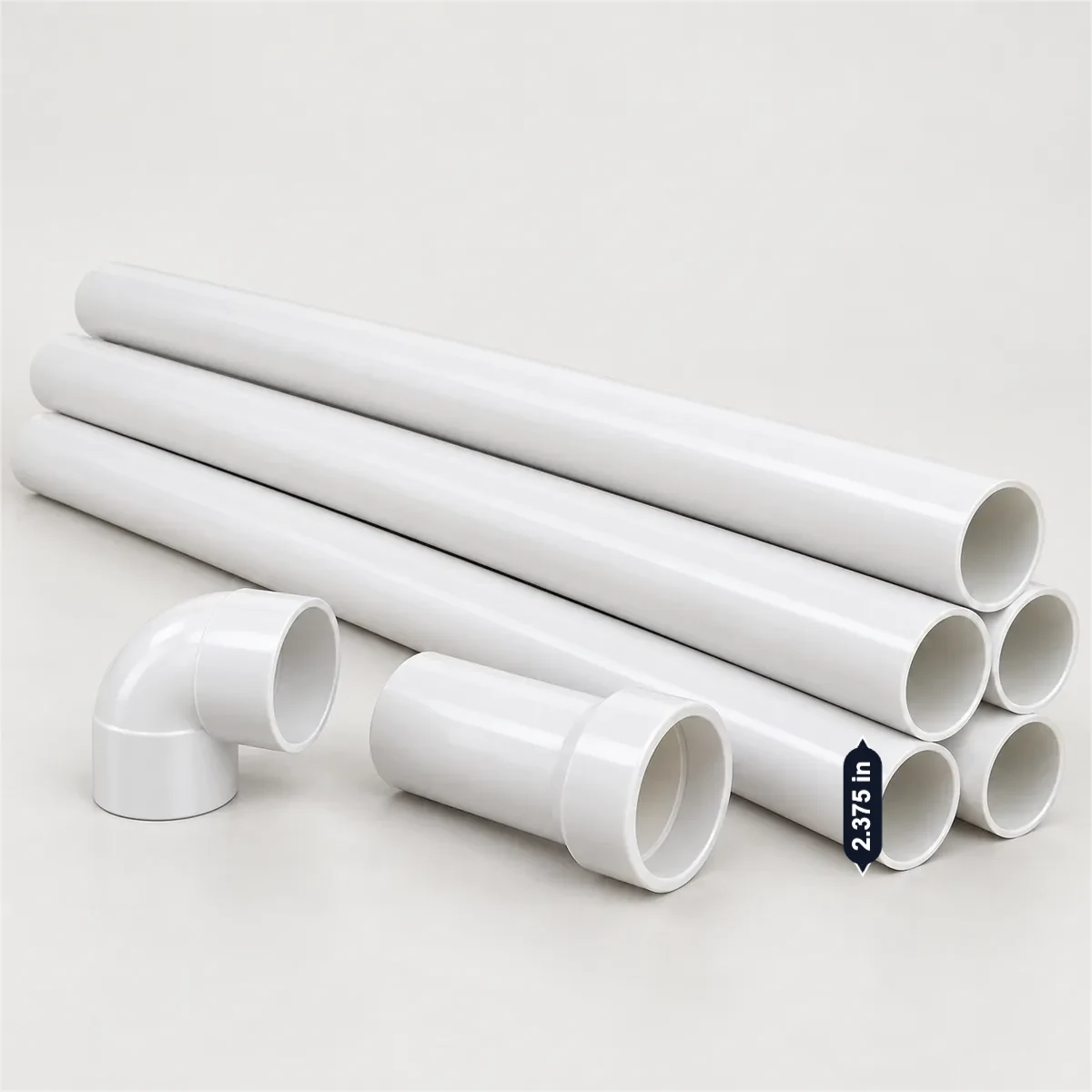

Schedule 40 PVC is the thinner of the two ASTM D1785 walls: 2 in Sch 40 is 2.375 in (60.3 mm) outside with a 0.154 in minimum wall, a 2.047 in average ID, 280 psi at 73 °F and 69.5 lb per 100 ft (Charlotte, IPEX). The rating falls as the size grows, from 600 psi at 1/2 in to 180 psi at 6 in, and with heat: × 0.62 at 100 °F and × 0.22 at 140 °F, the limit. It is usually white, sold in 10 and 20 ft, plain or belled (a 2 in bell is 4.00 in deep), often dual-marked for pressure and DWV, and it is not threaded. Its D2466 fittings have 1.156 in sockets at 2 in, against 1.500 in for Sch 80.
| OD (2 in) | Minimum wall | Rated at 73 °F |
|---|---|---|
| 2.375in60.3 mm | 0.154in3.91 mm | 280psi |
Sources: Charlotte Pipe. Checked October 2026.
A 100 ft run of 2 in belled pipe carrying 150 psi of 100 °F water, and a length measured at the yard, are filled in; change the size, run, temperature or your readings and the three checks follow.
Only the temperatures the makers tabulate are offered; for water in between, take the hotter one. Weights are Charlotte’s, per 100 ft as sold.
Each 20 ft length of belled 2 in Sch 40 loses 4 in inside the bell it fits into, so it adds 236 in: 100 ft takes 6 lengths and 5 joints; you have 6. At 69.5 lb per 100 ft they weigh 83.4 lb.
Charlotte’s 2 in belled pipe is 20 ft with a 4.00 in bell, so each length adds 236 in.
2 in Sch 40 is rated 280 psi at 73 °F; at 100 °F the factor is 0.62, so 173.6 psi, enough for your 150 psi. Charlotte rates its fittings at 60% of the pipe, so with them the system holds 104.2 psi.
2 in Sch 40 is 280 psi at 73 °F; at 100 °F the makers’ factor is 0.62.
2 in Sch 40: outside diameter 2.375 ± 0.006 in, so 2.369–2.381; wall at least 0.154 in and at most 0.174. Your 2.377 in and 0.16 in are within both.
Spears gives 2 in pipe ±0.006 in on the outside diameter; Rain Bird adds 0.020 in to the 0.154 in wall.
Selling Schedule 40? Photograph a pipe end with its print line, mark size, wall, rating and the bell in SizeMarker, and add the picture to your offer.
Mark a photoOutside diameter, minimum wall, rating and weight per 100 ft from Charlotte; average ID from IPEX Table A-14 (JM Eagle’s nominal ID at 12 in).
| Size | OD; minimum wall | Average ID | Rated at 73 °F | lb per 100 ft |
|---|---|---|---|---|
| 1/2 in | 0.840 in; 0.109 in | 0.602 in | 600 psi | 15.9 |
| 3/4 in | 1.050 in; 0.113 in | 0.804 in | 480 psi | 21.1 |
| 1 in | 1.315 in; 0.133 in | 1.029 in | 450 psi | 31.3 |
| 1-1/4 in | 1.660 in; 0.140 in | 1.360 in | 370 psi | 42.4 |
| 1-1/2 in | 1.900 in; 0.145 in | 1.590 in | 330 psi | 51.8 |
| 2 inThis page | 2.375 in (60.3 mm); 0.154 in (3.91 mm) | 2.047 in | 280 psi | 69.5 |
| 2-1/2 inRated higher than 2 in | 2.875 in; 0.203 in | 2.445 in | 300 psi | 110.0 |
| 3 in | 3.500 in; 0.216 in | 3.042 in | 260 psi | 144.2 |
| 4 in | 4.500 in; 0.237 in | 3.998 in | 220 psi | 205.5 |
| 6 in | 6.625 in; 0.280 in | 6.031 in | 180 psi | 361.2 |
| 8 in | 8.625 in; 0.322 in | 7.941 in | 160 psi | 543.6 |
| 12 in | 12.750 in; 0.406 in | 11.889 in | 130 psi | 1019.0 |
Sources: Charlotte Pipe · IPEX · JM Eagle
Bell depth of Charlotte’s belled Sch 40 (made to D2672 or F480); minimum socket length of D2466 Sch 40 and D2467 Sch 80 fittings from Charlotte’s DC-PR.
| Size | Bell depth, belled pipe | Sch 40 fitting socket | Sch 80 fitting socket |
|---|---|---|---|
| 1/2 in | 2.00 in | 0.688 in | 0.875 in |
| 1 in | 2.50 in | 0.875 in | 1.125 in |
| 2 inThis page | 4.00 in | 1.156 in | 1.500 in |
| 3 in | 4.00 in | 1.875 in | 1.875 in |
| 4 in | 5.00 in | 2.000 in | 2.250 in |
| 6 in | 6.50 in | 3.000 in | 3.000 in |
| 2 in at CreslineBell depths differ by maker | 3.000 in | — | — |
Sources: Charlotte Pipe · Charlotte Pipe · Cresline
| Item | Figure |
|---|---|
| Temperature factorCharlotte, IPEX, Wavin, Cresline | 73 °F 1.00; 80 °F 0.88; 90 °F 0.75; 100 °F 0.62; 110 °F 0.50; 120 °F 0.40; 130 °F 0.30; 140 °F 0.22 |
| Hottest useCharlotte; Wavin | 140 °F (60 °C); Charlotte lists 150 °F as not rated |
| ThreadingGF; Cresline; UFGS 40 05 13 | Not recommended, the wall is too thin; UFGS: Schedule 40 pipe should not be threaded at all |
| FittingsCharlotte | Rated at 60% of the pipe; 1 in Sch 40: pipe 450, socket fittings 270, threaded fittings 225 psi |
| CementOatey | Regular-bodied cement up to 4 in for Sch 40, up to 2 in for Sch 80 |
| Worked by IPEX | 3 in Sch 40 at 100 °F: 260 × 0.62 = 161.20 psi |
Sources: Charlotte Pipe · IPEX · Wavin · Cresline · GF Harvel · UFGS · Oatey
| Item | Figure |
|---|---|
| Pressure and drainsCharlotte; JM Eagle; Cresline-West | Dual-marked ASTM D1785 and D2665, for pressure and for drain, waste and vent; Sch 80 is not listed for DWV |
| Foam-core twinCharlotte | ASTM F891 cellular core at Sch 40 sizes, not for pressure: 2 in × 10 ft at 43.9 lb per 100 ft against 69.5 solid |
| ColourCharlotte; JM Eagle; GF Harvel | Usually white, purple for reclaimed water; Harvel also makes grey Sch 40 |
| LengthsCharlotte; JM Eagle | 10 and 20 ft, plain end or belled |
| Water inside buildingsCharlotte | The IPC and UPC do not permit Sch 40 PVC for water distribution within a building; water service outside is listed in IPC Table 605.3 |
Sources: Charlotte Pipe · JM Eagle · Cresline-West · GF Harvel · Florida Building Commission
Outside-diameter tolerance from Spears’ D1785 table; wall tolerance from Rain Bird, plus only. The ranges are our arithmetic.
| Size | Outside diameter | Wall |
|---|---|---|
| 1/2 in | ±0.004 in: 0.836–0.844 | +0.020 in: 0.109–0.129 |
| 1 in | ±0.005 in: 1.310–1.320 | +0.020 in: 0.133–0.153 |
| 2 inThis page | ±0.006 in: 2.369–2.381 | +0.020 in: 0.154–0.174 |
| 3 in | ±0.008 in: 3.492–3.508 | +0.026 in: 0.216–0.242 |
| 4 in | ±0.009 in: 4.491–4.509 | +0.028 in: 0.237–0.265 |
| 6 in | ±0.011 in: 6.614–6.636 | +0.034 in: 0.280–0.314 |
| Item | Figure |
|---|---|
| Into the socketOatey; JM Eagle | The pipe bottoms out in the hub and is held 30 seconds |
| Standard lengthCresline | 20 ft, but 4 in and larger are sold by laying length |
| In the check aboveOur calculation | 240 − 4.00 = 236 in a length; 1,200 ÷ 236 = 5.08, so 6 lengths and 5 joints; 6 × 20 ft × 69.5 lb per 100 ft = 83.4 lb; 280 × 0.62 = 173.6 psi |
| StandardASTM | D1785-26 is current; D2466-24 for the fittings |
2.375 in (60.3 mm) outside, a 0.154 in minimum wall, a 2.047 in average ID, rated 280 psi at 73 °F and 69.5 lb per 100 ft (Charlotte, IPEX).
It depends on the size: 600 psi at 1/2 in, 450 at 1 in, 280 at 2 in, 220 at 4 in and 180 at 6 in, all at 73 °F. Multiply by 0.62 at 100 °F and 0.22 at 140 °F.
No. GF and Cresline do not recommend it, and UFGS says Schedule 40 pipe should not be threaded at all; use Sch 80 where you need threads.
Yes: Charlotte, JM Eagle and Cresline-West dual-mark it to ASTM D1785 and D2665 for pressure and DWV. Foam-core Sch 40 (F891) is for drains only, not pressure.
A D2466 fitting socket is at least 1.156 in deep at 2 in, where Sch 80 is 1.500 in; a Charlotte belled pipe end is 4.00 in deep at 2 in.
Charlotte says the IPC and UPC do not permit Sch 40 PVC for water distribution within a building; it is listed for water service outside (IPC Table 605.3).
