A split-face block is cast as two units face to face and split apart after curing, so one face is rough and shows the aggregate (CMHA). Its height and length stay 7-5/8 × 15-5/8 in like a plain unit and are held to ±1/8 in, but the split face is exempt from C90’s tolerance. The width depends on the maker: the plain 3-5/8 to 11-5/8 in at Basalite and Westbrook, 1/4 in more on Mutual Materials’ 4, 6, 10 and 12 in units, and fluted units project further, 2-3/16 in past the face at County. Up to 10% of a split face shell may be thinner than C90’s minimum, but never under 3/4 in (NCMA). Units come with 1 to 11 vertical scores or 4, 6 or 8 ribs; an 8 in split unit weighs 43 lb in one Anchorage producer’s list.
| Face (height × length) | Tolerance, split face exempt | Split face shell, thinnest |
|---|---|---|
| 7-5/8 × 15-5/8in | ±1/8in | 3/4in19 mm |
Sources: Nitterhouse Masonry, CMHA, NCMA. Checked October 2026.
An 8 in split-face block, a 300 sq ft wall with its order, one block you measured and the thinnest point of its split face shell are filled in; change any of them.
Counts, modules and tolerances follow CMHA notes and the makers’ printed rules; nominal sizes include one mortar joint. No bar sizes or structural design here.

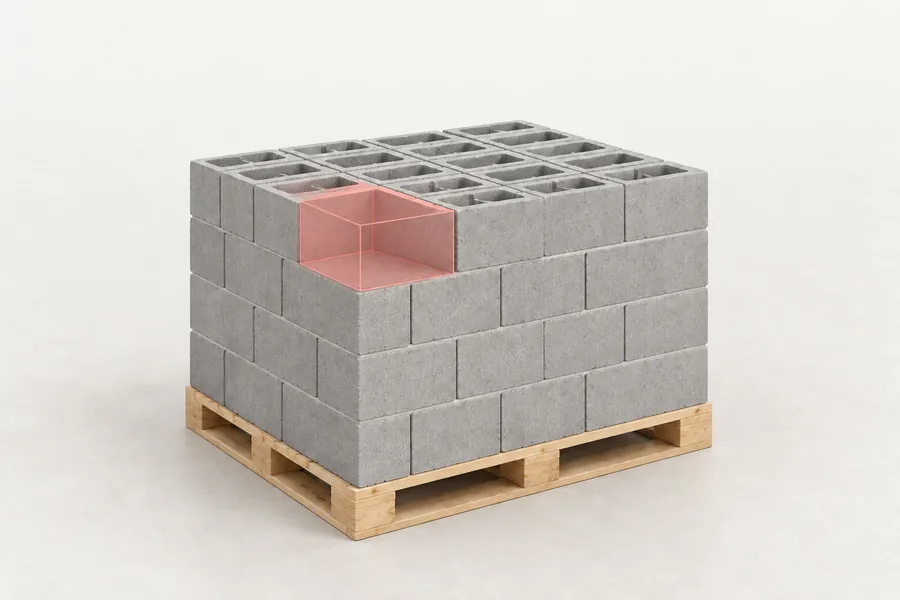

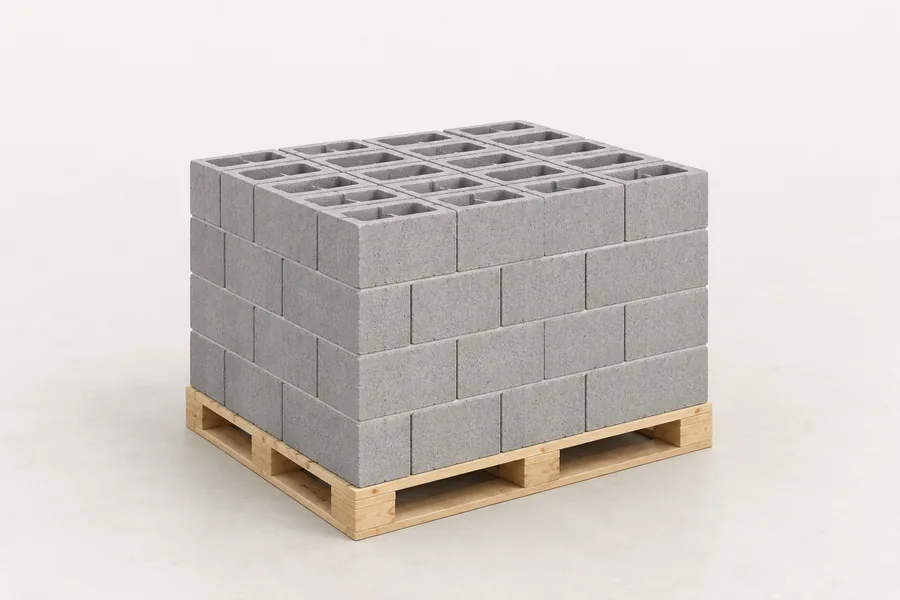

Each 8 × 16 in block face takes 8/9 sq ft with its joint, so a wall takes 1.125 blocks a sq ft (County Materials, CMHA). 300 sq ft with 5% for waste needs 355; you ordered 360, 5 spare.
Split units count the same as plain ones: 112.5 per 100 sq ft before waste.

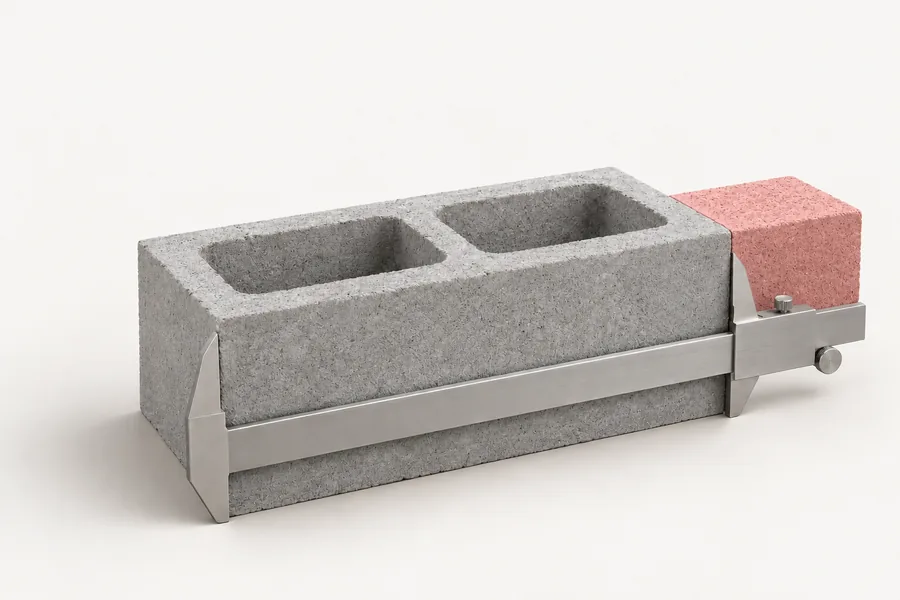

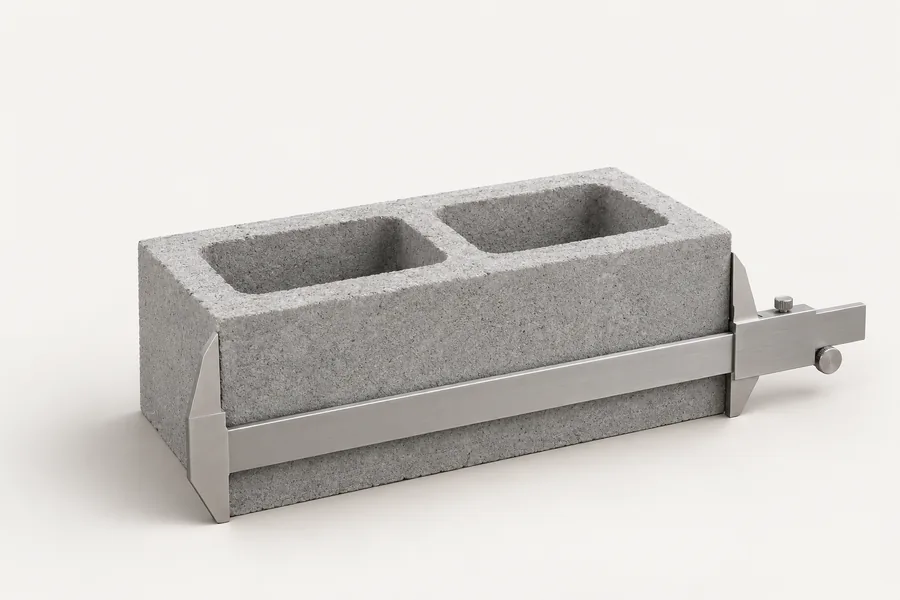

ASTM C90 holds height and length to 1/8 in either way of the specified 7-5/8 × 15-5/8 in; the split face is exempt, so the width is not checked (CMHA). You measured 7.6 × 15.65 in: both within. The 7.8 in width is not held to the tolerance.
Mutual Materials makes 4, 6, 10 and 12 in split units 1/4 in wider than plain.

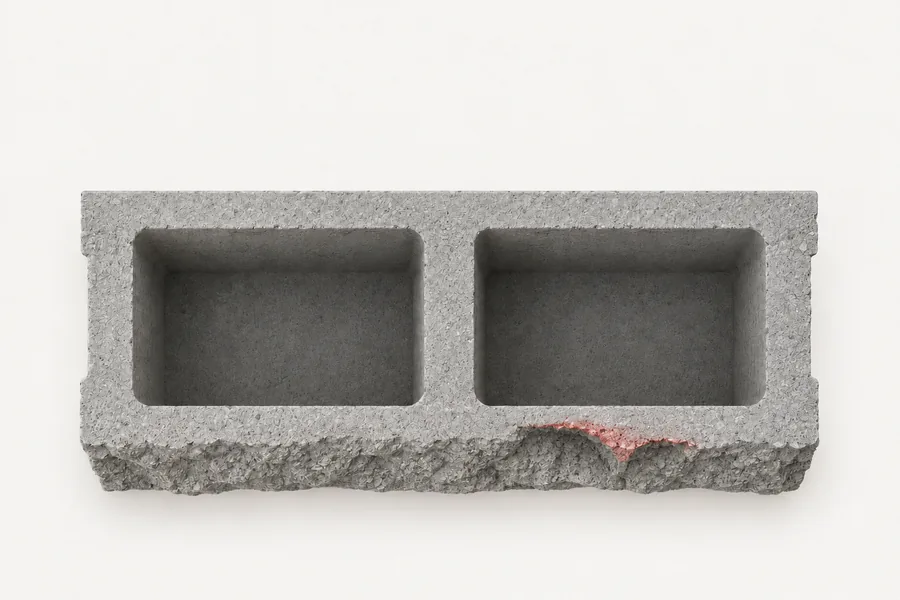

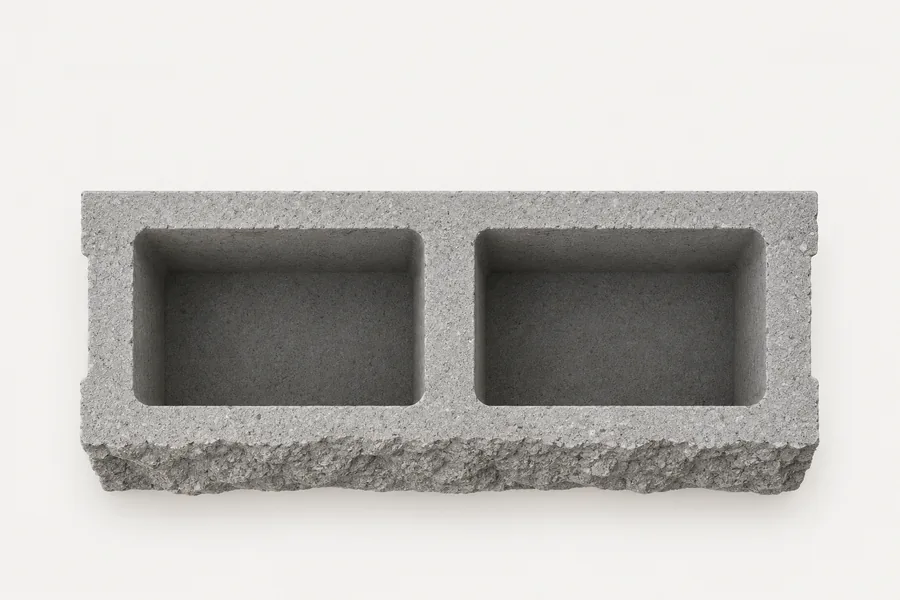

ASTM C90 asks face shells of at least 1-1/4 in for 8 in units, but up to 10% of a split face shell may be thinner as long as it is not under 3/4 in (NCMA); your thinnest point is 1 in.
C90 face shells: 3/4 in at 4 in, 1 in at 6 in, 1-1/4 in from 8 in up.
Selling split-face blocks? Photograph the split face and the end of a block, mark height, length, width at the split face and the face shell in SizeMarker, and send the picture with your quote.
Mark a photo| Unit | Size | Weight | Per pallet |
|---|---|---|---|
| Anchorage 4 in split face | 4 × 8 × 16 in nominal | 33 lb | 150 |
| Anchorage 8 in split faceThis page | 8 × 8 × 16 in nominal | 43 lb | 75 |
| Anchorage 8 in split half high | 8 × 4 × 16 in nominal | 19 lb | 150 |
| Anchorage 8 in split half | 8 × 8 × 8 in nominal | 25 lb | 150 |
| Anchorage 12 in split face | 12 × 8 × 16 in nominal | 55 lb | 50 |
| Basalite 8x8x16Smooth or split face, one row | 7-5/8 × 7-5/8 × 15-5/8 in | 40 lb | 90 |
| Mutual 4-8-16 split face | 3-7/8 × 7-5/8 × 15-5/8 in | — | — |
| Mutual 8-8-16 split face | 7-5/8 × 7-5/8 × 15-5/8 in | — | — |
| Thomas Armstrong RockfacedUK, a solid facing block | 440 × 100 × 215 mm | — | 56 (5.6 m²) |
| Beijing split blockChina, MU10 load-bearing | 390 × 190 × 190 mm; half 190 × 190 × 190 mm | — | — |
Sources: Alaska DOT&PF · Basalite · Mutual Materials · Thomas Armstrong · Beijing Housing and Construction Commission
| Item | Figure |
|---|---|
| Overall toleranceCMHA | ±1/8 in (3.2 mm) on width, height and length; split faces and slump faces are exempt |
| Non-split facesWestbrook; Nitterhouse | Height and length finished to 7-5/8 × 15-5/8 in |
| Ribs and scoresCMHA | Within ±1/16 in (1.6 mm) of their size and placement |
| Width, as plainBasalite; Westbrook | 3-5/8 to 11-5/8 in, the same as smooth units |
| Width, widerMutual Materials; Angelus | 1/4 in more: 3-7/8, 5-7/8, 9-7/8, 11-7/8 in (Mutual); Angelus’s 4 in solid split unit 3-13/16 in |
| Ribs past the faceWestbrook; County Materials | Westbrook 4-rib deep unit 9-1/4 in; County flutes extend 2-3/16 in from the face, sold as 8 + 2 |
| Face shellNCMA TEK 2-3A | Up to 10% of a split face shell may be under the minimum, but not under 3/4 in (19 mm) |
| C90 face shell minimumsCMHA; NCMA | 3/4 in at 3 and 4 in, 1 in at 6 in, 1-1/4 in at 8 in and up |
| UKThomas Armstrong | The rockfaced block is still declared tolerance category D1 |
Sources: CMHA · Westbrook · Nitterhouse Masonry · Basalite · Mutual Materials · Angelus Block · Westbrook · County Materials · NCMA · Thomas Armstrong
| Item | Figure |
|---|---|
| One scoreCMHA | The most common: looks like 8 × 8 in units in stack bond |
| More scoresCMHA; Superlite | 2, 3, 5 or 7 (CMHA); one to eleven on one or both sides (Superlite) |
| RibsCMHA; Westbrook | 4, 6 or 8 vertical ribs |
| Lining upCMHA | Units with two and five scores go in stack bond or one-third running bond so the scores align |
| Score sizeCounty Materials | 3/8 in square or 7/8 in deep V; depth and width vary by plant |
| MortarNCMA TEK 2-3A | Hard to tool properly between ribs |
Sources: CMHA · Superlite · Westbrook · County Materials · NCMA
| Item | Figure |
|---|---|
| Cast double, then splitCMHA; Echelon; Air Vol | Two units moulded face to face, cured, then split apart by a guillotine with four blades |
| Exempt faceCMHA; Angelus | The split face is not held to C90’s dimensional tolerance; only the non-split faces are |
| Thinner shell allowedNCMA | Up to 10% of the split face shell may be thinner than the minimum, down to 3/4 in |
| Smaller channelAngelus drawings | A split-face bond beam channel is 3-1/2 × 1-1/2 in, against 4 × 2-1/2 in in a precision unit |
| Wider than plainMutual Materials | Its 4, 6, 10 and 12 in split units are 1/4 in wider than the plain ones |
| ColourCMHA TEK 05-16 | Split faces show less colour variation than smooth faces |
| StockAir Vol; Basalite | Most split units are single open-end (Air Vol); 6 in split units are special order (Basalite) |
Sources: CMHA · Echelon · Air Vol Block · Angelus Block · NCMA · Angelus Block · Mutual Materials · CMHA · Basalite
7-5/8 in high and 15-5/8 in long like a plain unit; the width is 3-5/8 to 11-5/8 in at Basalite and Westbrook, and 1/4 in more on Mutual Materials’ 4, 6, 10 and 12 in units.
Its height and length do, to ±1/8 in; the split face itself is exempt, because splitting leaves a random surface (CMHA). Ribs and scores are held to ±1/16 in.
Up to 10% of it may be thinner than C90’s minimum, which is 1-1/4 in on an 8 in unit, but never under 3/4 in (NCMA).
43 lb for an 8 in unit, 55 lb for 12 in and 33 lb at 4 in in one Anchorage producer’s list; Basalite prints 40 lb for its 8 in smooth or split unit.
One vertical score is most common; CMHA lists 2, 3, 5 or 7, Superlite makes up to eleven, and ribbed units have 4, 6 or 8 ribs.
Two units are moulded face to face, cured and split apart, so the face is fractured and shows the aggregate (CMHA, Air Vol).
