Dimensions / Building materials / Tiles / Subway tile

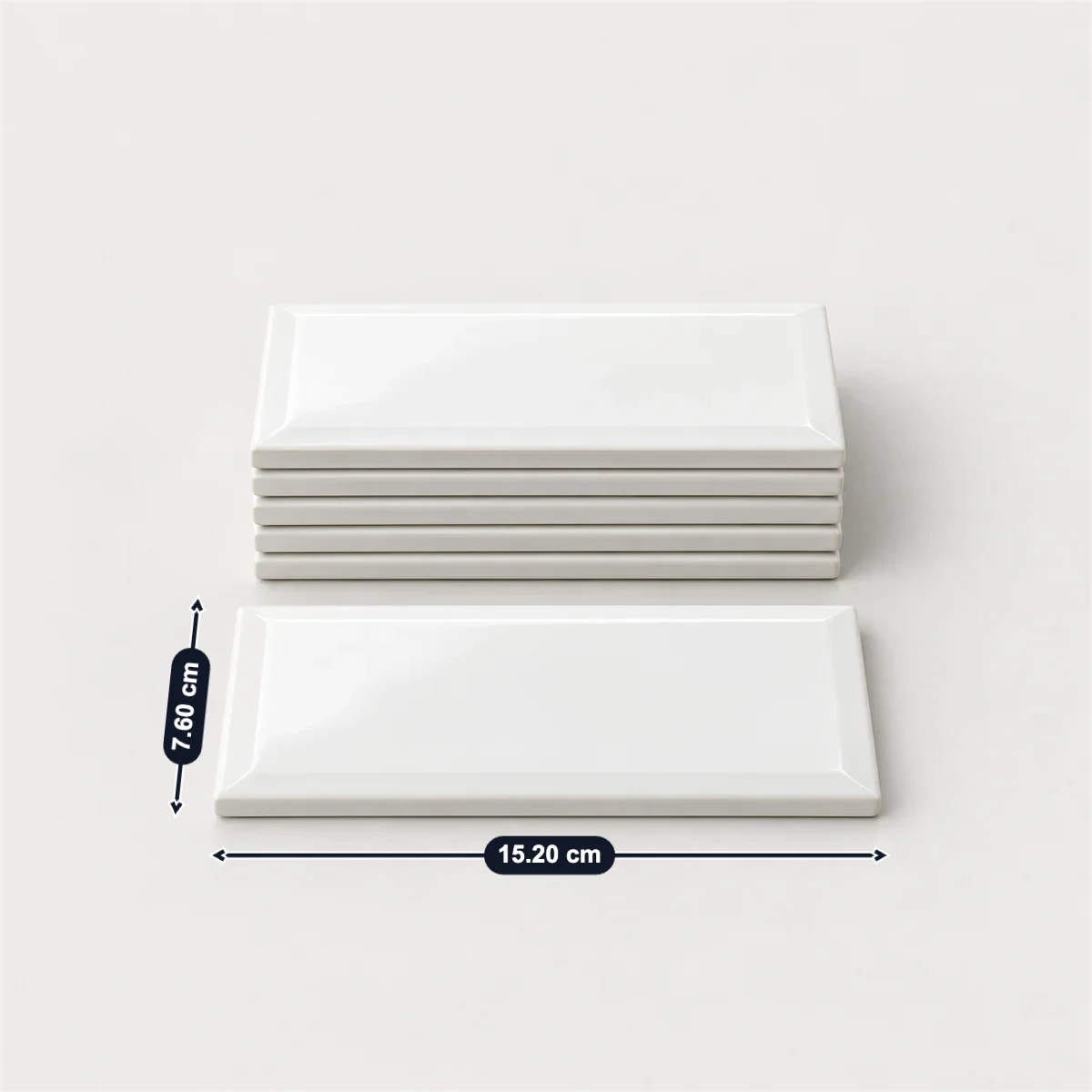

Subway tile is the 3 × 6 in glazed wall tile, twice as long as it is wide; Daltile’s Rittenhouse Square 3x6 measures 7.60 × 15.20 cm. Flat ones are 5/16 in thick and bevelled ones 3/8 in, and a carton of 100 flat pieces covers 12.50 sq ft, 8 to the square foot. The same lines come in 2 × 8, 4 × 12 and 4 × 16 in, and Equipe makes 7,5 × 15 cm. Daltile recommends a 1/16 in wall joint, the ANSI A108.02 minimum. The 33% offset cap only covers sides over 18 in, so a 3 × 6 may go in half-tile running bond, though Daltile caps its 2 × 8, 4 × 12 and 4 × 16 in at 33%.
| Daltile 3x6, actual size | Thickness, flat; bevelled | Coverage, 100 flat pieces |
|---|---|---|
| 7.60 × 15.20cm | 5/16in3/8 in | 12.50sq ft |
Sources: Daltile. Checked October 2026.
Daltile’s Rittenhouse Square 3x6 is filled in. Enter your wall, carton, joint and how flat the wall is; each check follows a figure or rule on this page.
Coverage per box is the maker’s printed figure: some makers count the nominal size, some the actual size, so take it from the box or the sheet.
40 sq ft plus 10% for cuts is 44 sq ft: 4 boxes of 12.5 sq ft (100 pieces each). Your 4 boxes cover it.
Daltile’s Rittenhouse Square 3x6, 100 pieces to 12.50 sq ft, is filled in for a 40 sq ft wall plus Ca’ Pietra’s 10% for cuts.
The joint must be at least three times the size spread (0.02 in × 3 = 0.06 in) and never under 1/16 in, so 1/16 in here. Your 1/16 in joint passes.
Daltile’s 1/16 in wall joint is filled in; with a 0.02 in size spread the three-times rule asks only 0.06 in, so the 1/16 in floor applies.
For tile with every edge under 15 in, the surface may vary by 1/4 in in 10 ft; your 1/8 in gap is within it.
With every edge under 15 in, the wall may vary 1/4 in in 10 ft; a 1/8 in gap is an example.
Selling wall tile? Photograph a tile and a carton, mark the actual size, thickness, edge and pieces per carton in SizeMarker and send it with your quote.
Mark a photoMakers’ sheets; sizes as each prints them. Ca’ Pietra is a brand that sells its own range.
| Tile | Size, actual | Thickness; edge | Per carton; joint |
|---|---|---|---|
| Daltile Rittenhouse Square 3x6This page | 7.60 × 15.20 cm | 5/16 in, flat | 100 pieces, 12.50 sq ft; wall joint 1/16 in |
| Rittenhouse Square 3x6 bevel | Same | 3/8 in, bevelled | 80 pieces, 10.40 sq ft |
| American Olean Bright & Matte 3x6 | 7.50 × 15.20 cm | 5/16 in flat, 3/8 in bevel | 100 or 80 pieces; 12.50 or 10.40 sq ft; joint 1/16 in |
| Daltile Color Wheel Linear 2x8 | 2-1/8 × 8-9/16 in (5.45 × 21.82 cm) | 5/16 in (7.90 mm) | 80 pieces, 10.40 sq ft |
| Color Wheel Linear 4x12 | 4-1/4 × 12-7/8 in (10.91 × 32.77 cm) | 5/16 in | 28 pieces, 10.64 sq ft |
| Color Wheel Linear 4x16 | 4 × 16 in (10.17 × 40.68 cm) | 3/8 in (9.30 mm) | 30 pieces, 13.20 sq ft |
| Daltile Modern Dimensions 4-1/4 x 12-3/4 | 4-1/4 × 12-7/8 in (10.88 × 32.71 cm) | 5/16 in | 28 pieces, 10.64 sq ft |
| MSI White Ceramic Subway 3x6 | 3 by 6 inches | Flat or bevelled | — |
| Marazzi USA Costa Clara 3X12 | 3X12 | 5/16 in, undulated | Joint 1/8 in |
| Equipe Masía 7,5x15Spain | 7,5 × 15 cm (3” × 6”) | White body wall tile | 44 pieces, 0,50 m², 6,30 kg a box; joint at least 2 mm |
| Equipe Masía 7,5x30Spain | 7,5 × 30 cm (3” × 12”) | White body wall tile | 44 pieces, 1,00 m², 12,77 kg a box |
| Ca’ Pietra Delicate MetroUK | 10 × 20 × 0.7 cm | 7 mm | 50 pieces, 1.0 m² |
| Ca’ Pietra Carter MilkUK | 30 × 7.5 × 0.9 cm | 9 mm | 22 pieces, 0.495 m² |
Sources: Daltile · American Olean · Daltile · Daltile · MSI · Marazzi USA · Equipe · Ca’ Pietra · Ca’ Pietra
| Item | Figure |
|---|---|
| Minimum jointANSI A108.02 4.3.8 (CTEF; Laticrete) | At least three times the size range of the tile supplied, and never under 1/16 in (1.5 mm) |
| Makers’ wall joints | Daltile and American Olean 1/16 in; Marazzi USA 1/8 in on its 3X12; Equipe at least 2 mm; Ca’ Pietra 2–3 mm non-rectified |
| Bevelled edgeA108.10 5.3 (Custom Building Products) | Grout is finished evenly at the depth of the cushion, so the joint is taken at the foot of the bevel |
| OffsetANSI A108.02 4.3.8.2; Daltile | The 33% cap covers only an offset side over 18 in; Daltile still caps its 2 x 8, 4 x 12 and 4 x 16 at 33% |
| Pieces per square footOur calculation | 100 pieces for 12.50 sq ft: 8 a square foot, since 3 × 6 in is 18 sq in |
| Wall flatnessANSI A108.02 (Laticrete) | Tile with every edge under 15 in: 1/4 in in 10 ft (6 mm in 3 m), and 1/16 in in 12 in |
| Allowance for cutsCa’ Pietra; Clé | Ca’ Pietra adds 10%, Clé 15%; neither TCNA nor ANSI gives a figure |
| BodyEquipe | Masía is a white-body wall tile, EN 14411 Group BIII: water absorption over 10% |
| The nameTCNA WhyTile | White tile now called subway tile lined New York’s City Hall station, opened on 27 October 1904; the page gives no size |
| In the check aboveOur calculation | 40 sq ft + 10% = 44 sq ft: 4 cartons of 12.50; a 0.02 in spread × 3 = 0.06 in, under the 1/16 in floor; a 1/8 in gap against 1/4 in |
Sources: CTEF · Laticrete · Daltile · American Olean · Marazzi USA · Equipe · Ca’ Pietra · Custom Building Products · Daltile · Clé · TCNA
3 × 6 in nominal: Daltile’s Rittenhouse Square 3x6 is 7.60 × 15.20 cm and American Olean’s 7.50 × 15.20 cm. The same family runs to 2 × 8, 4 × 12, 4 × 16 and 3 × 12 in, and Equipe sells 7,5 × 15 and 7,5 × 30 cm.
5/16 in for flat tile and 3/8 in for bevelled (Daltile, American Olean); Ca’ Pietra’s are 7 and 9 mm.
Eight 3 × 6 in tiles: Daltile’s carton of 100 covers 12.50 sq ft. A bevelled carton holds 80 for 10.40 sq ft.
1/16 in, which Daltile and American Olean recommend and ANSI A108.02 sets as the minimum, provided it is at least three times the size range of the tiles. Bevelled tile is grouted at the depth of the bevel.
Yes under ANSI A108.02, whose 33% cap applies only to sides over 18 in. Daltile still asks for no more than 33% on its 2 × 8, 4 × 12 and 4 × 16 in linear tile.
Buyers ask for the nominal and actual size, the thickness and edge, flat or bevelled, the glaze and body, pieces and square feet or square metres per carton, carton weight and cartons per pallet, and the joint you recommend. Mark the real tile and its carton on your own photo in SizeMarker, as in the picture at the top, and send one product card for WhatsApp or WeChat.
